Home >> Chevy Truck >> 2003 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Relays and Modules >> Relays and Modules - Accessories and Optional Equipment >> Accessory Delay Module >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Retained Accessory Power (RAP) - Inoperative (No Relay Class 2)

Retained Accessory Power (RAP) - Inoperative (No Relay Class 2)

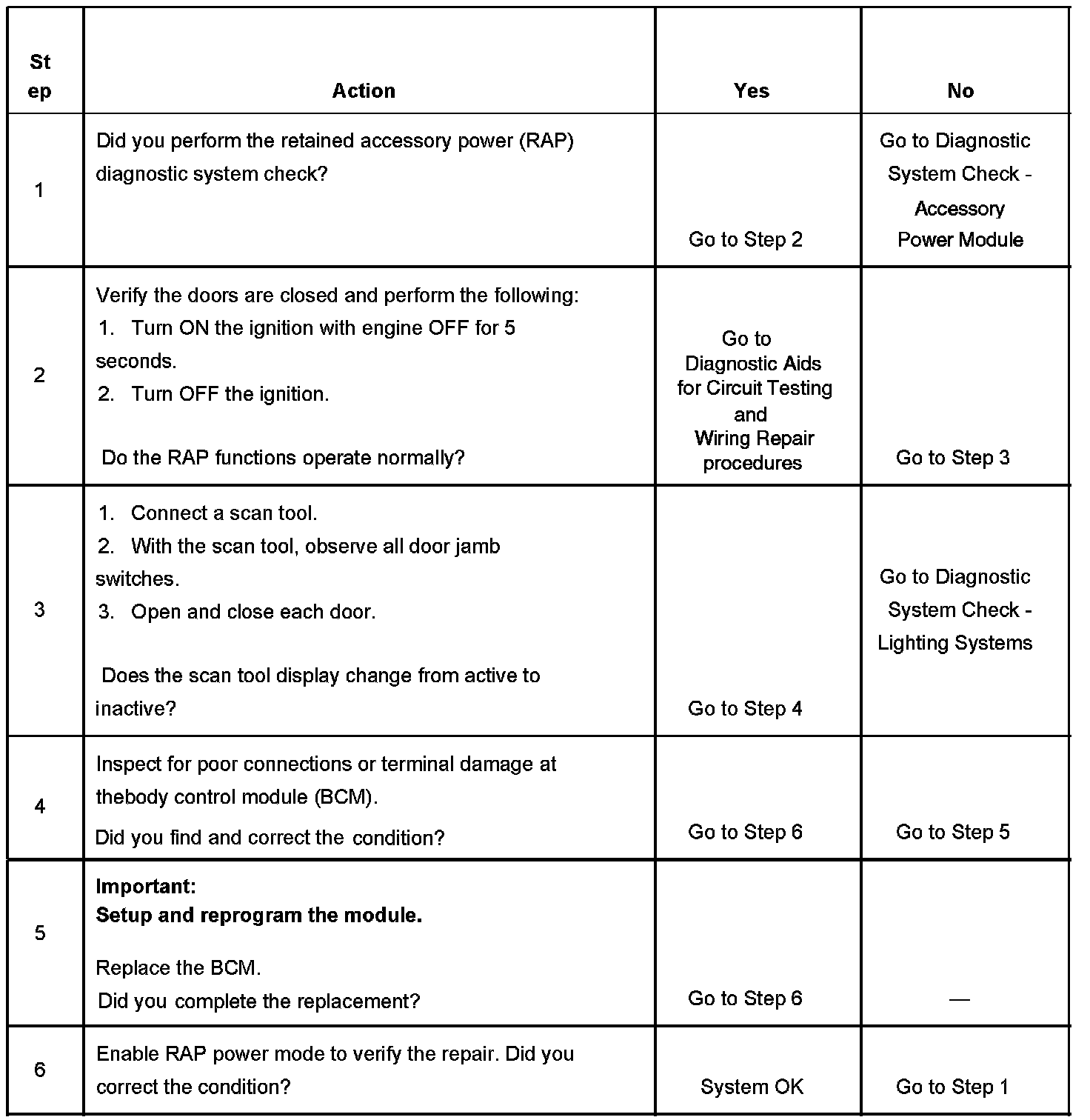

Steps 1-4:
