EVAP Hoses/Pipes Replacement - Engine/Chassis

REMOVAL PROCEDURE




1. Remove the EVAP/fuel hose/pipe assembly.

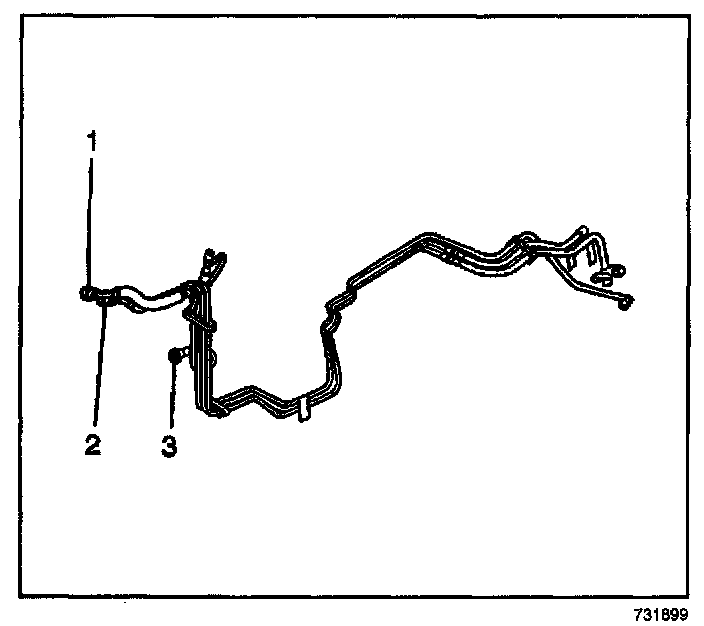

2. Remove the EVAP purge pipe (3) from the EVAP/fuel hose/pipe assembly.

INSTALLATION PROCEDURE




1. Place the new EVAP purge pipe (3) in the EVAP/fuel hose/pipe assembly.
2. Install the EVAP/fuel hose/pipe assembly.
