Canister Purge Control Valve: Service and Repair

EVAPORATIVE EMISSION (EVAP) CANISTER PURGE VALVE REPLACEMENT

REMOVAL PROCEDURE
1. Raise the vehicle. Refer to Vehicle Lifting.

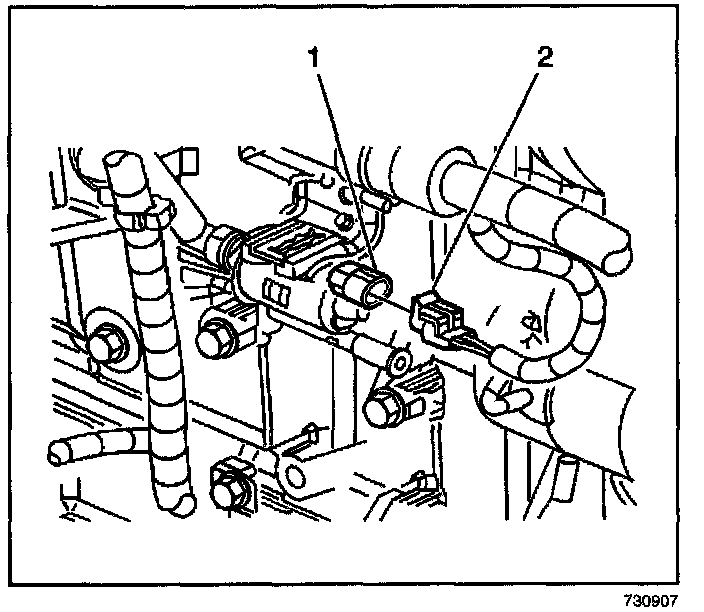

2. Disconnect the harness electrical connector (2) from the evaporative emission (EVAP) canister purge valve (1).
3. Disconnect the EVAP purge pipe from the EVAP canister purge valve.
4. Disconnect the engine vacuum pipe from the EVAP canister purge valve.




5. Remove the purge valve (2) from the purge valve mounting bracket.
6. If replacing the purge valve bracket, remove the attaching bolt (1) and purge valve bracket.

INSTALLATION PROCEDURE




1. If replacing the purge bracket, install the purge valve bracket and the attaching bolt (1).

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the purge valve mounting bracket attaching bolt to 10 N.m (89 lb in).

2. Install purge valve (2) on to the purge valve mounting bracket.
3. Connect the EVAP purge pipe to the EVAP canister purge valve.
4. Connect the engine vacuum pipe to the EVAP canister purge valve.




5. Connect the electrical harness connector (2) to the EVAP canister purge valve (1).
6. Lower the vehicle.
