Home
>>
Chevy Truck
>>
2003
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Diagrams
>>
Electrical Diagrams
>>
Ground Distribution Diagrams
>>
G108
G108

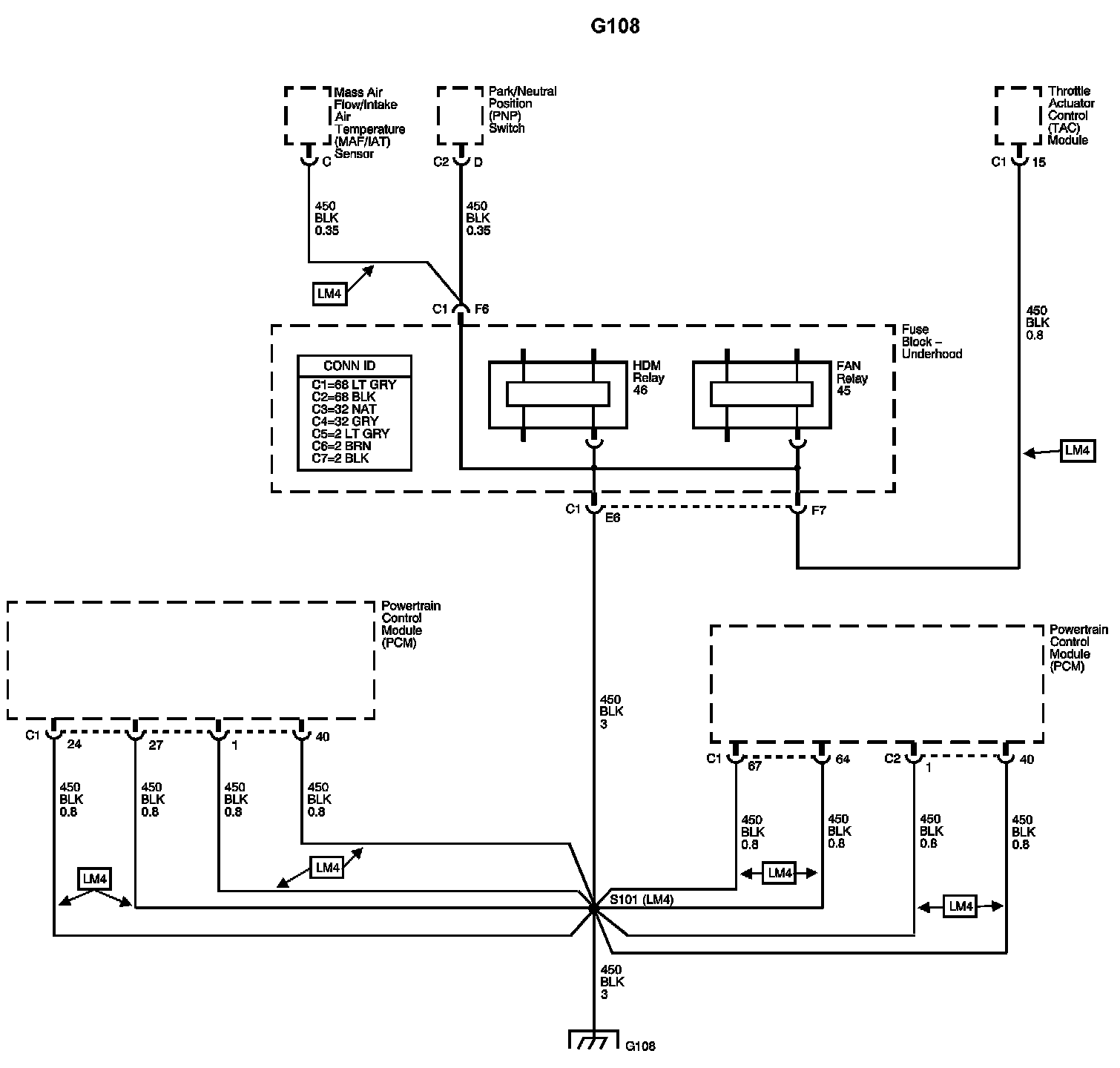

Ground Distribution Diagram 3:
