Replacement

AIR DISTRIBUTOR DUCT REPLACEMENT

REMOVAL PROCEDURE







1. Remove the IP assembly
2. Remove the driver side air distributor duct screws.

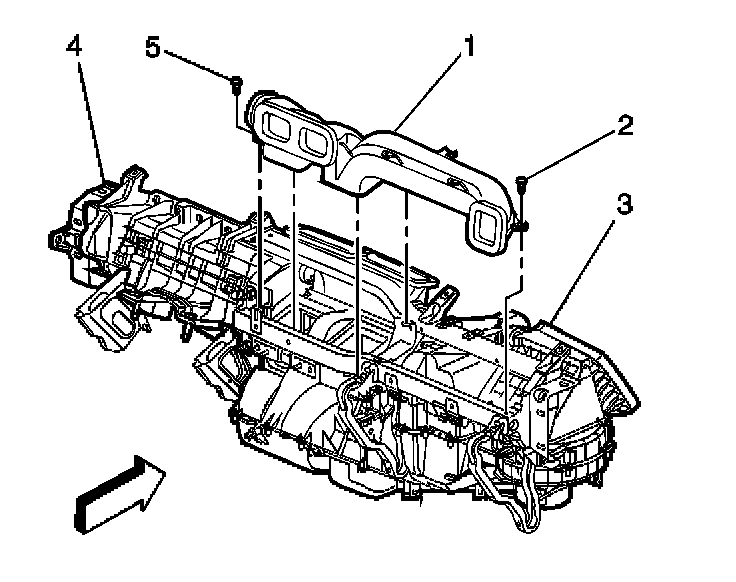

3. Remove the air distributor duct (1) from the instrument panel.


INSTALLATION PROCEDURE

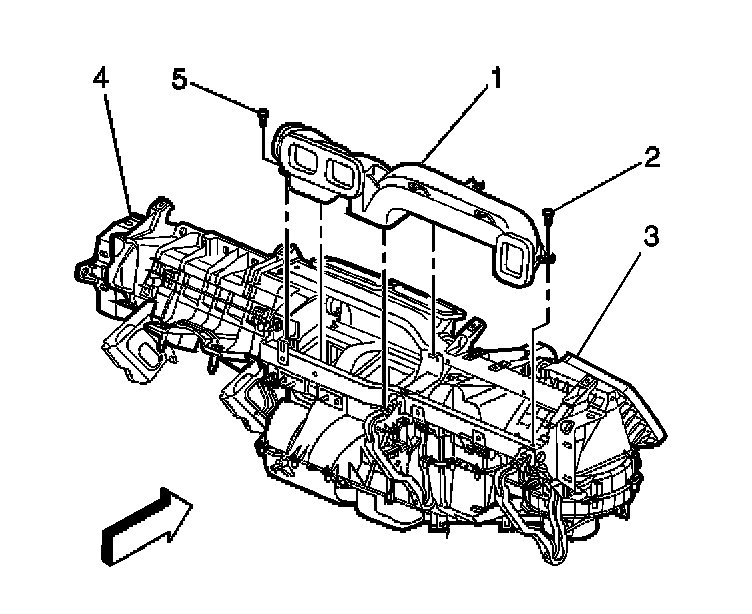

1. Install the air distributor duct (1) to the instrument panel.
2. Install the retaining screws to the air distributor duct.

NOTE: Refer to Fastener Notice in Service Precautions.
Vehicle Damage Warnings

Tighten
Tighten the screws to .....1.9 N.m (17 lb in).

3. Install the IP assembly.
