Coolant Outlet: Service and Repair

Water Outlet Housing Replacement

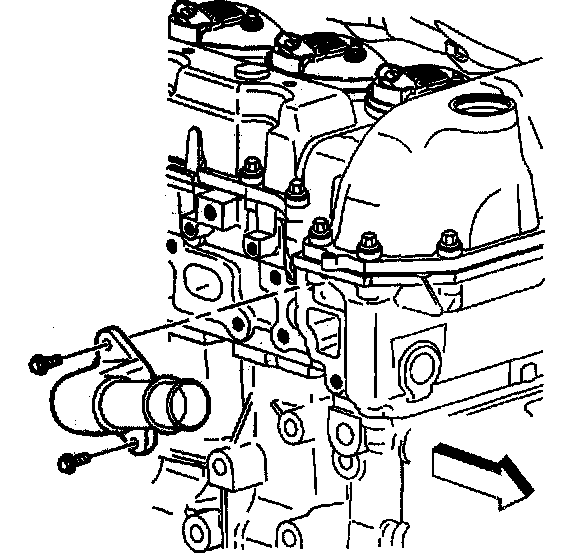

Removal Procedure
1. Disconnect the outlet radiator hose from the water outlet housing.
2. Remove the power steering pump bracket.







3. Remove the water outlet bolts.
4. Remove the water outlet.

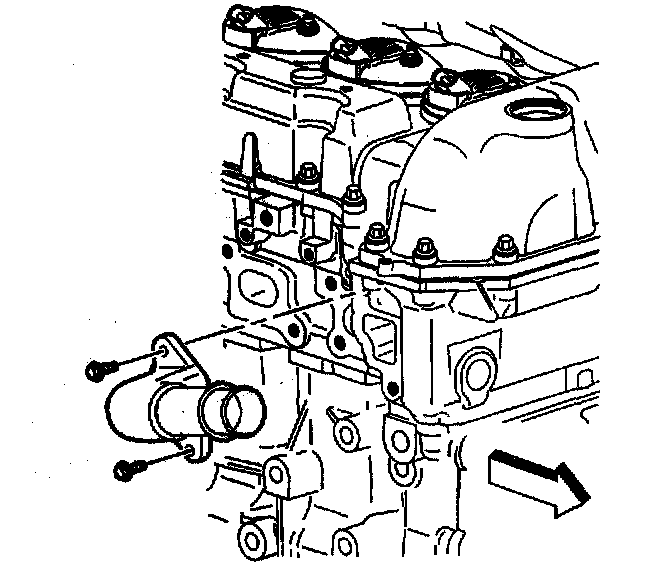

Installation Procedure







1. Install the water outlet.

NOTICE: Refer to Fastener Notice in Service Precautions.
Fastener Notice


2. Install the water outlet bolts.
Tighten the water outlet bolts to 10 Nm (89 inch lbs.).

3. Connect the outlet radiator hose to the water outlet housing.
4. Install the power steering pump bracket.
