Chevy Truck
>>
2003
>>
TrailBlazer 2WD L6-4.2L VIN S
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Entertainment Systems
Entertainment Systems

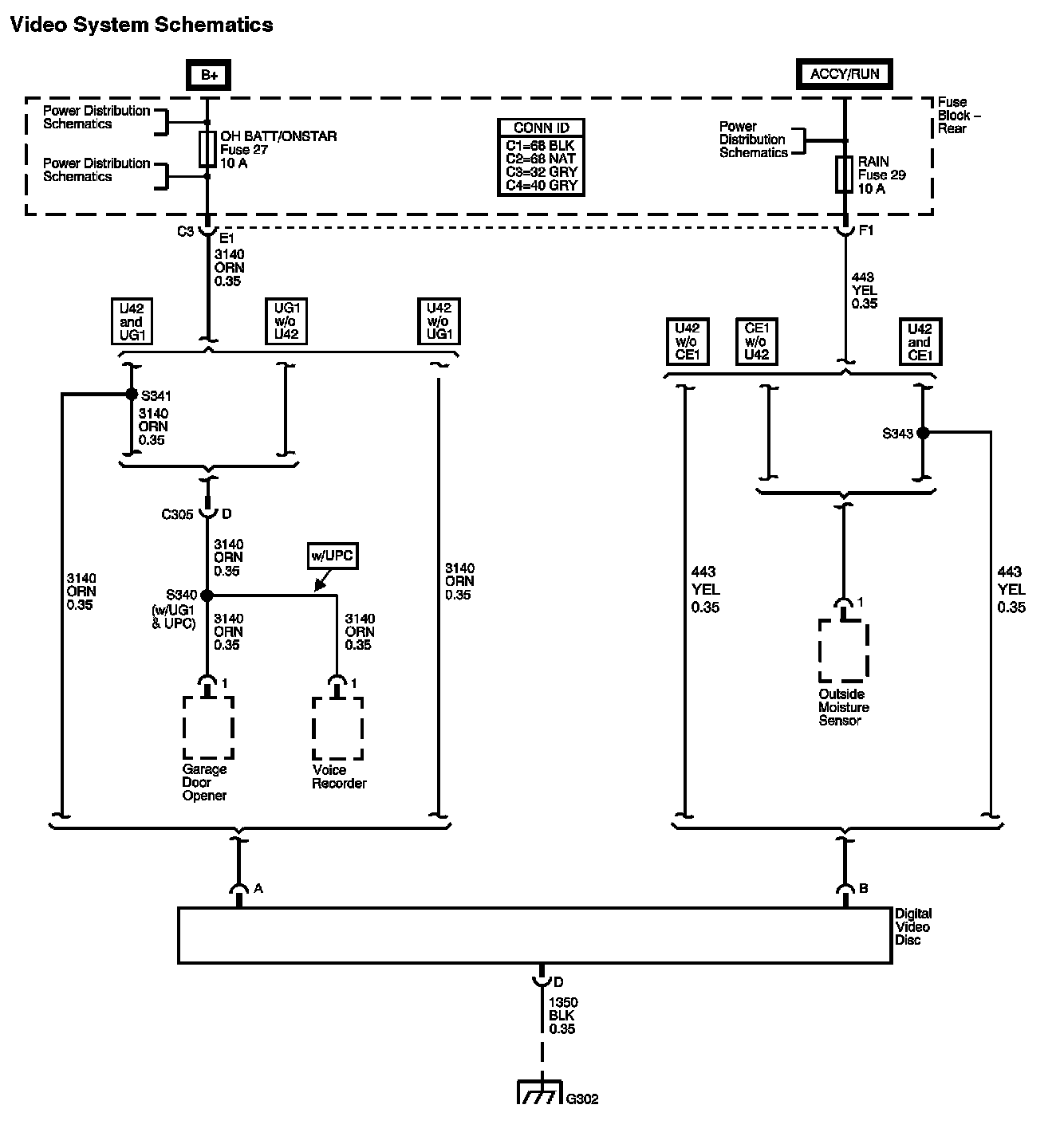

Video System Diagram:
