Home >> Chevy Truck >> 2003 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> C401 - C901 >> C800

C800

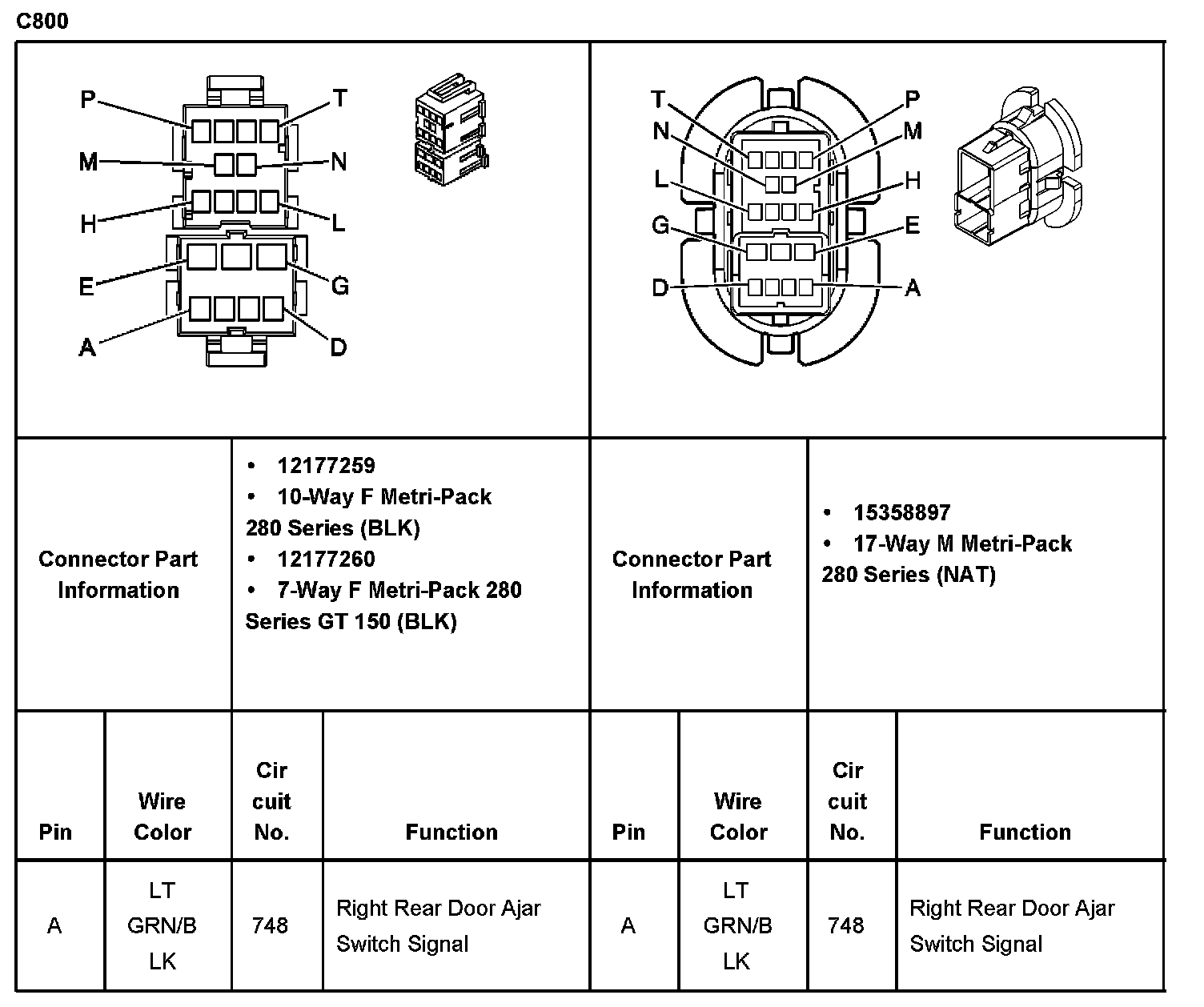

C800 Part 1:

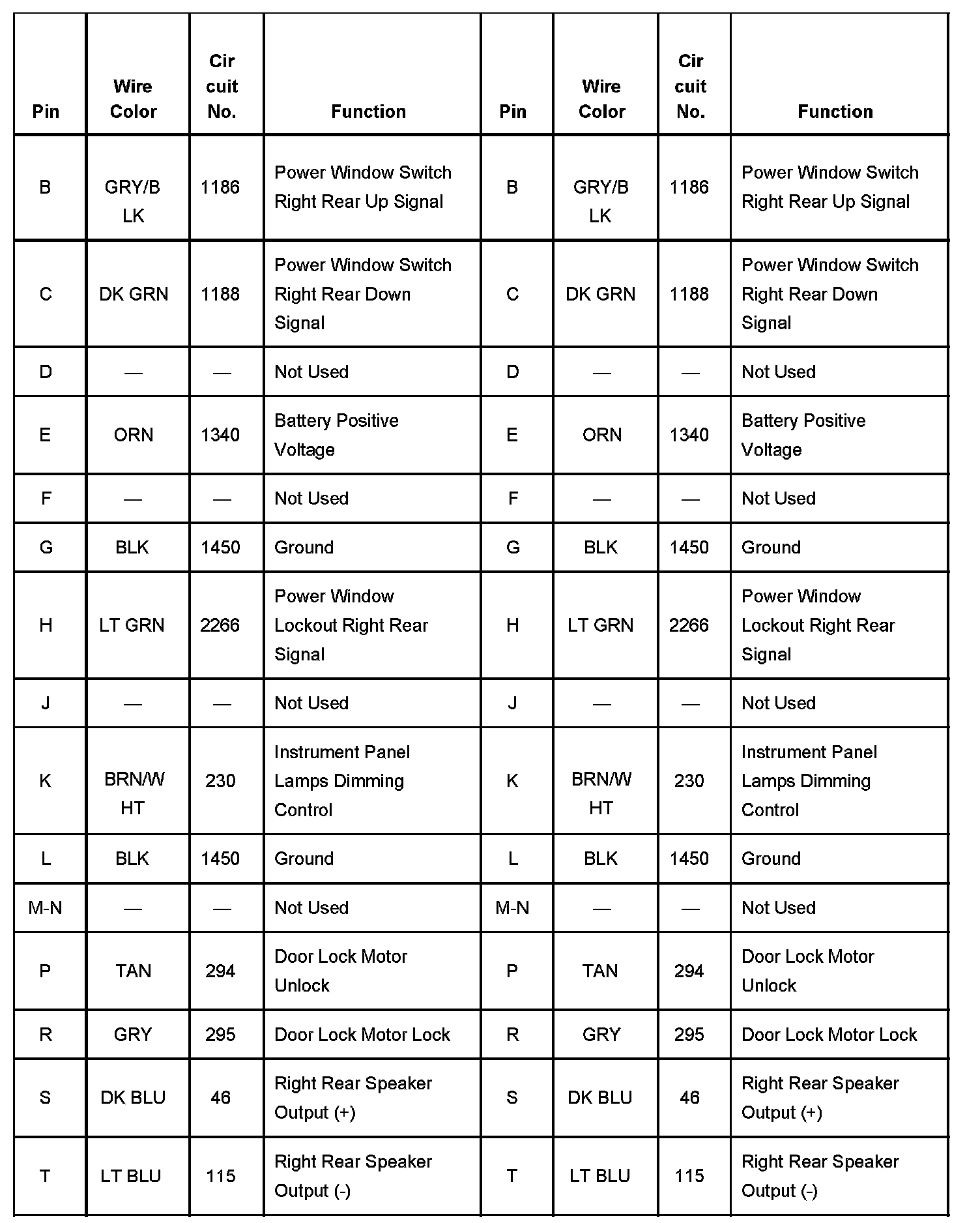

C800 Part 2:
