Home >> Chevy Truck >> 2003 >> TrailBlazer 2WD L6-4.2L VIN S >> Repair and Diagnosis >> Diagrams >> Connector Views >> C401 - C901 >> C600

C600

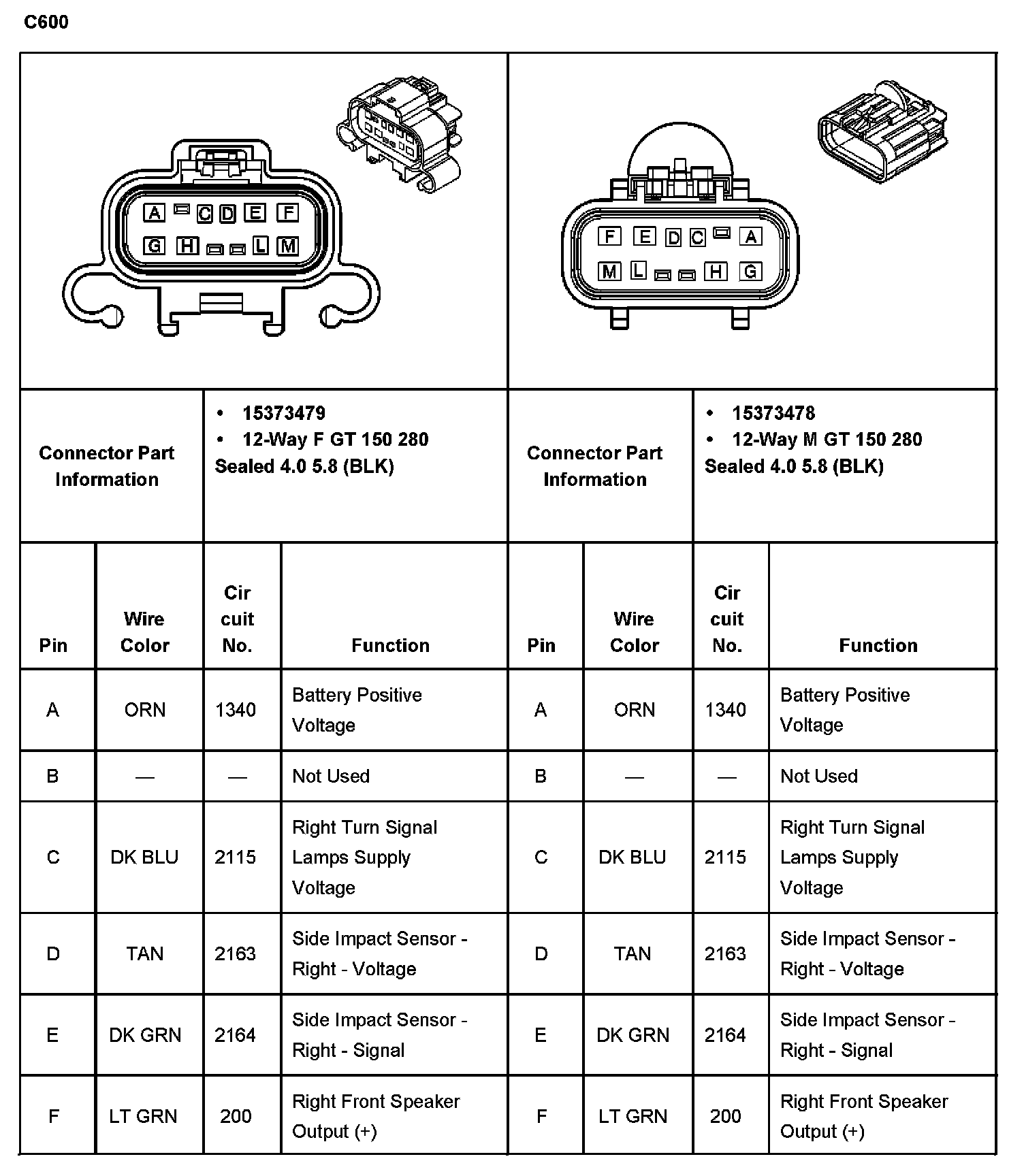

C600 Part 1:

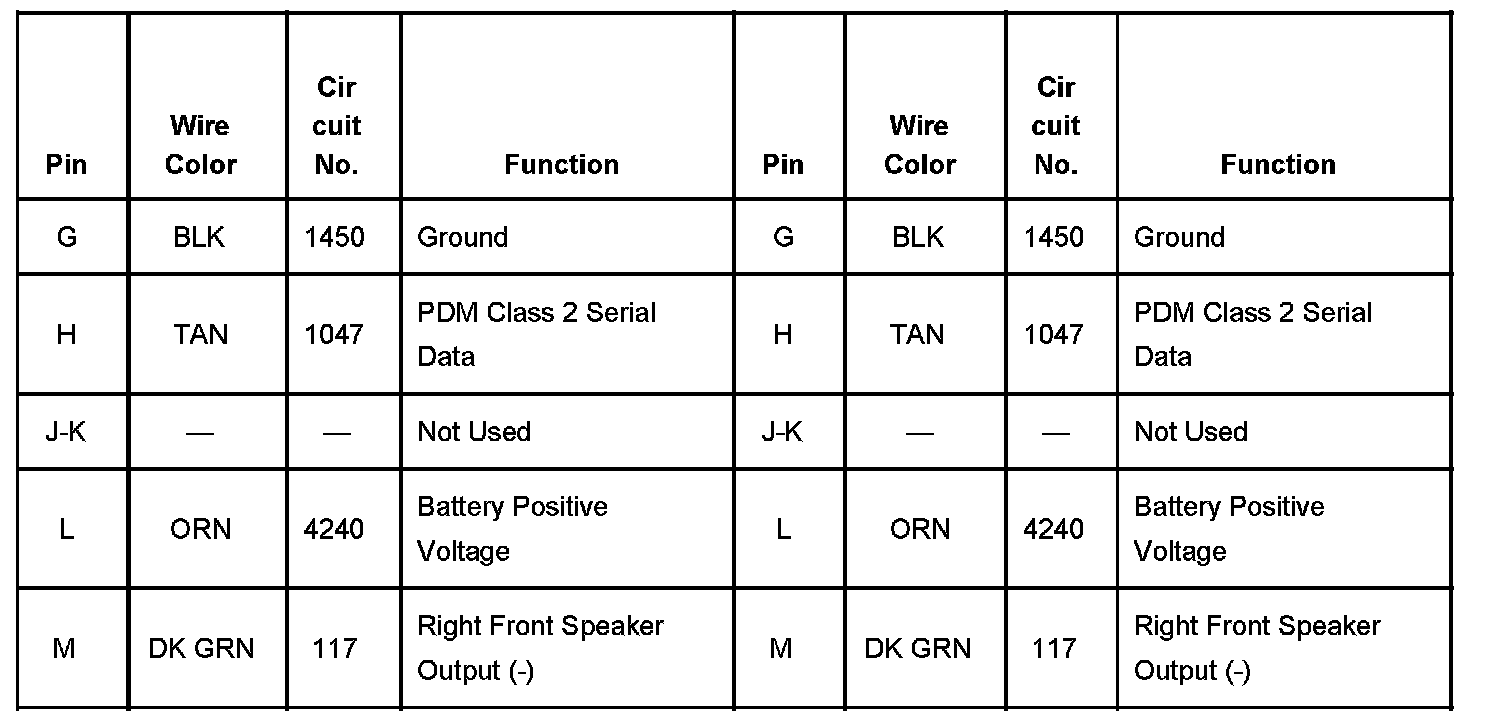

C600 Part 2:
