Amplifier Replacement 2

AMPLIFIER REPLACEMENT (ENVOY XL, TRAILBLAZER EXT)

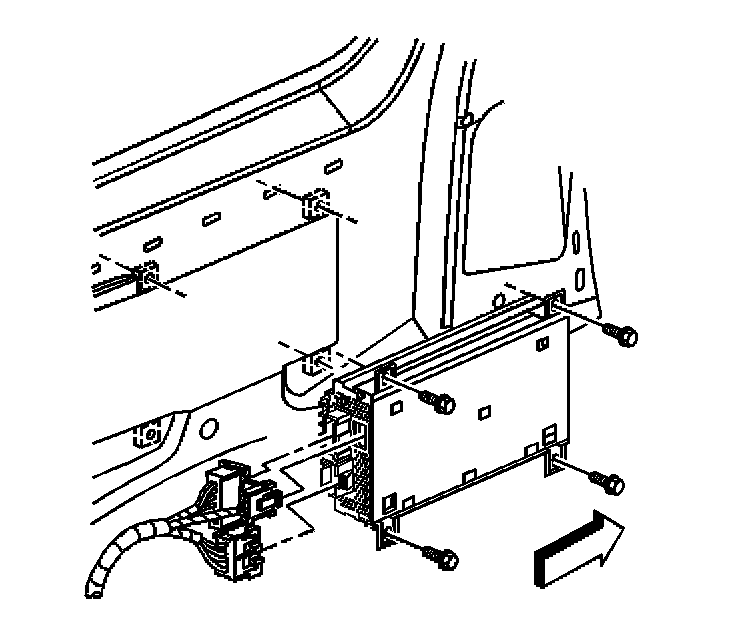

REMOVAL PROCEDURE
1. Remove the Left rear quarter trim panel.




2. Disconnect the electrical connectors from the radio speaker amplifier.
3. Remove the 4 bolts that retain the radio speaker amplifier to the body.
4. Remove the radio speaker amplifier from the body.

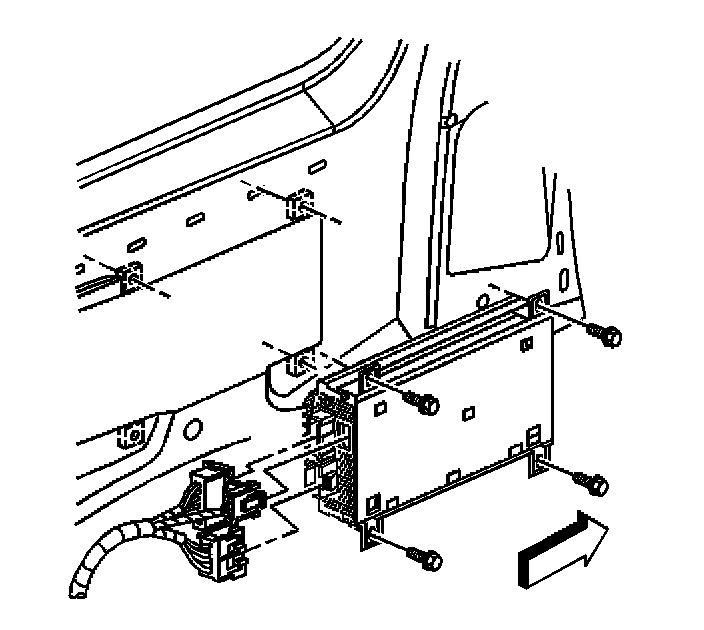

INSTALLATION PROCEDURE




1. Install the radio speaker amplifier to the body.
2. Install the 4 bolts that retain the radio speaker amplifier to the body.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the bolts to 10 N.m (88 lb in).

3. Connect the electrical connectors to the radio speaker amplifier.
4. Install the left rear quarter trim panel.
