Front Suspension

Stabilizer Shaft Link Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.

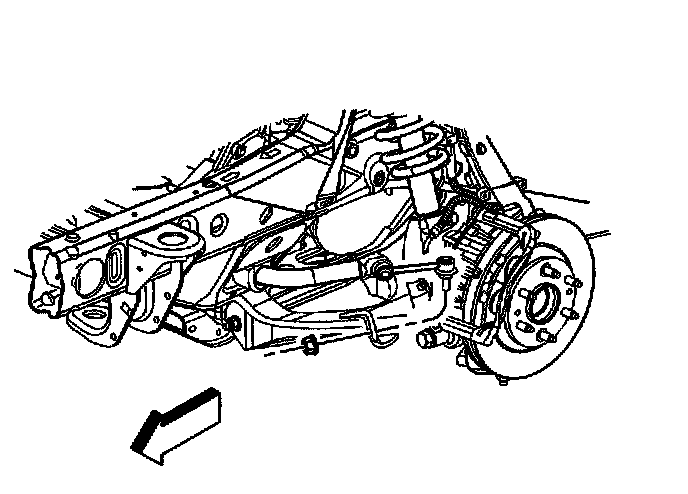

2. Remove the stabilizer shaft link to lower control arm retaining nut.

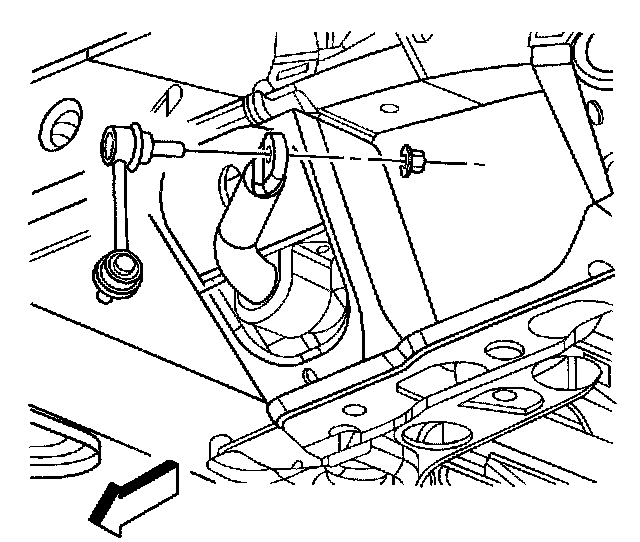

3. Remove the stabilizer shaft link to stabilizer shaft retaining nut.

Notice: Do not pry on the stabilizer shaft link. Use care when removing or installing the stabilizer shaft link in order to avoid tearing or puncturing the stabilizer shaft link boot. Damage to the stabilizer shaft link boot will lead to damage to the stabilizer shaft link.

4. Remove the stabilizer shaft link.

Installation Procedure





1. Install the stabilizer shaft link to the lower control arm.
2. Install the stabilizer shaft link to the stabilizer shaft.

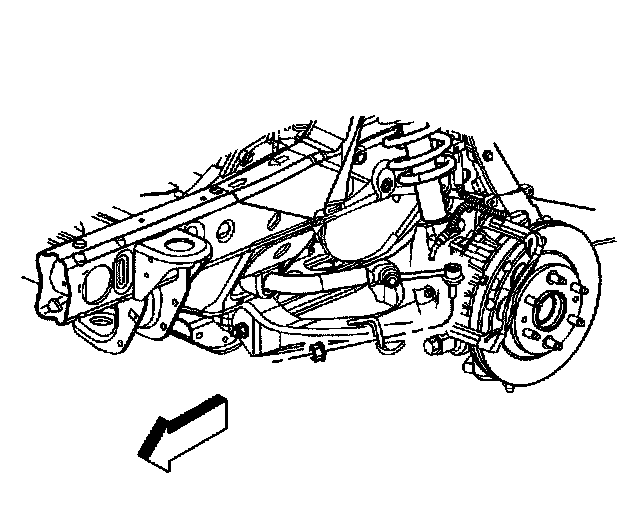

3. Install the stabilizer shaft link to lower control arm retaining nut.





Notice: Refer to Fastener Notice in Service Precautions.

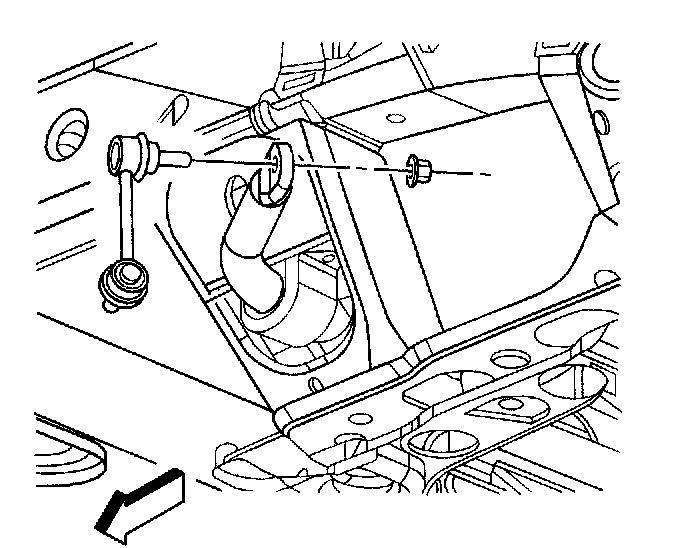

4. Install the stabilizer shaft link to stabilizer shaft retaining nut.
Tighten the stabilizer shaft link retaining nuts to 100 Nm (74 ft. lbs.).
5. Lower the vehicle.
