Tie Rod: Service and Repair

Rear Axle Tie Rod Replacement

Removal Procedure
1. Raise and support the vehicle. Refer to Vehicle Lifting.
2. Raise and support the rear axle at the designed D - height.

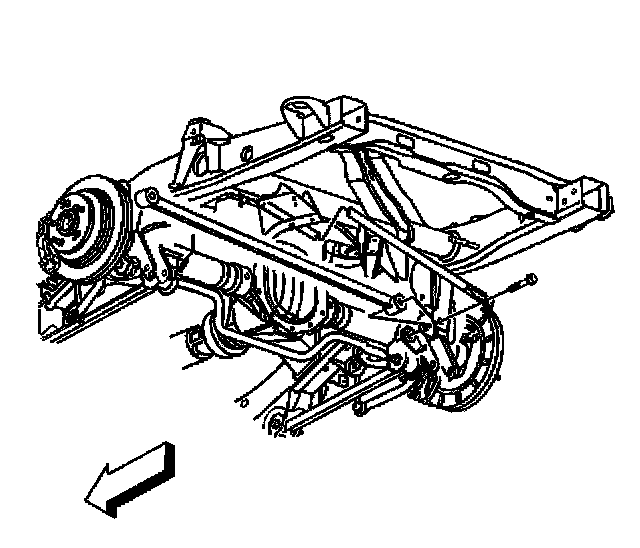

3. Remove the rear axle tie rod to the axle mounting bolt and nut.

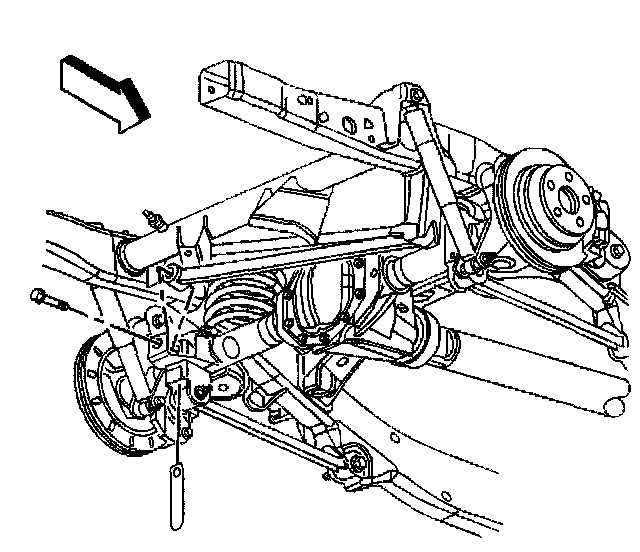

4. Remove the rear axle tie rod to frame mounting bolt and nut.
5. Remove the rear axle tie rod from the vehicle.

Installation Procedure





Important: When installing the rear axle tie rod the bushings inner sleeve off set (largest gap) is towards the rear axle.

1. Install the rear axle tie rod to the vehicle.

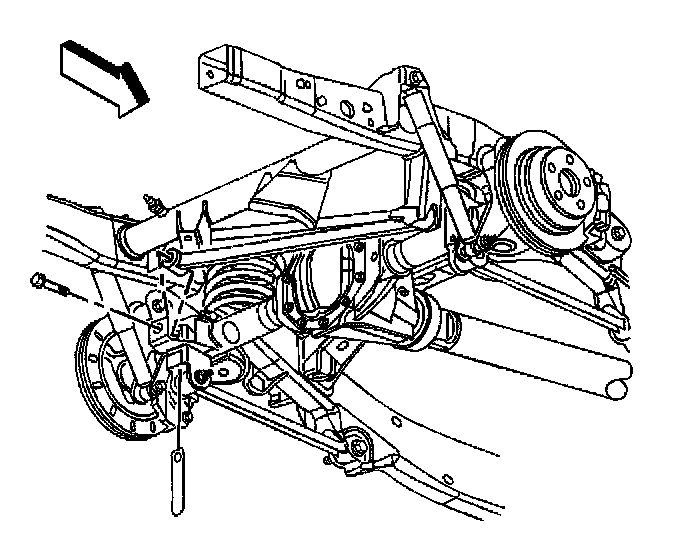

2. Install the rear axle tie rod to frame mounting bolt and nut. Hand tighten only.





Notice: Refer to Fastener Notice in Service Precautions.

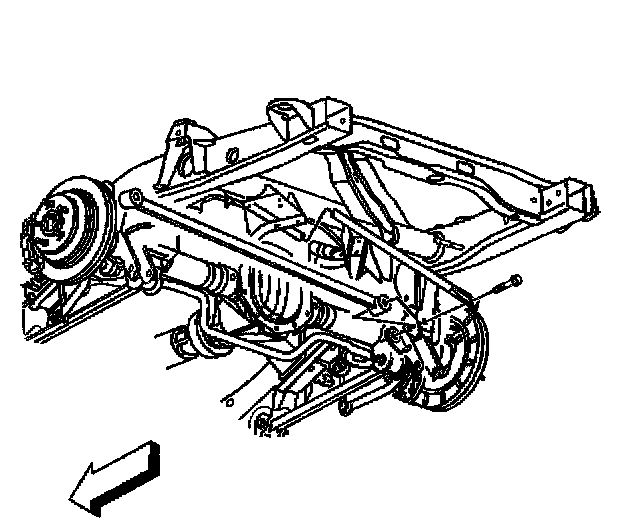

3. Install the rear axle tie rod to the axle mounting bolt and nut.
Tighten the bolts to 195 Nm (144 ft. lbs.).
4. Remove the rear axle support.
5. Lower the vehicle.
