Power Steering Fluid Cooler: Service and Repair

Power Steering Cooler Replacement

Removal Procedure
1. Raise and support the vehicle.
2. Place a drain pan under the vehicle.
3. Remove the front fascia.

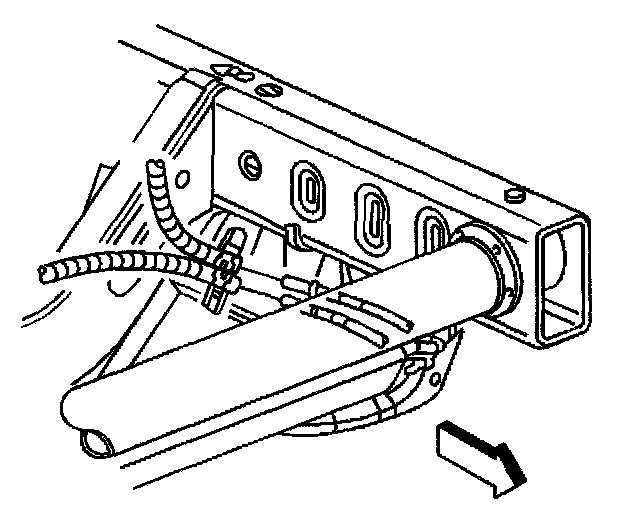

4. Disconnect the power steering cooler hoses from the power steering cooler.

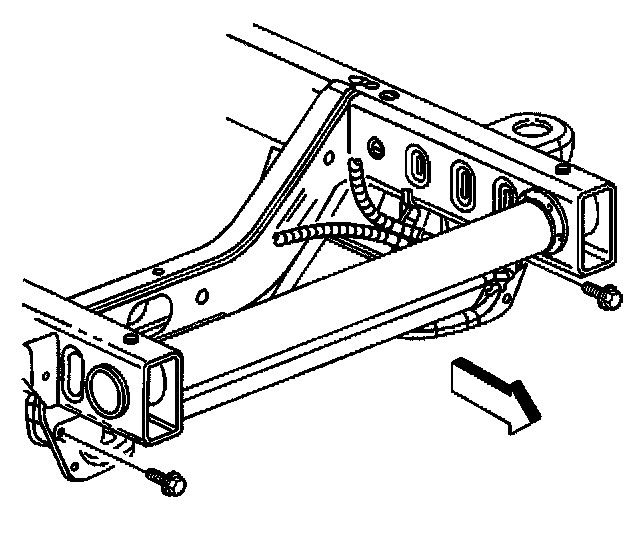

5. Remove the power steering cooler mounting bolts.

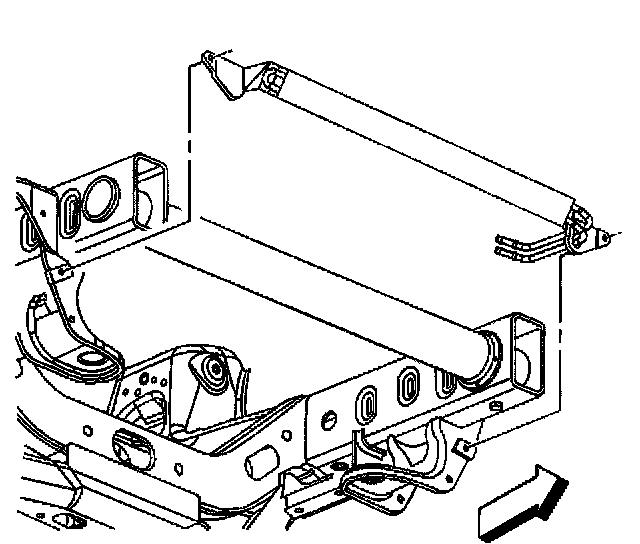

6. Remove the power steering cooler from the radiator support.

Installation Procedure

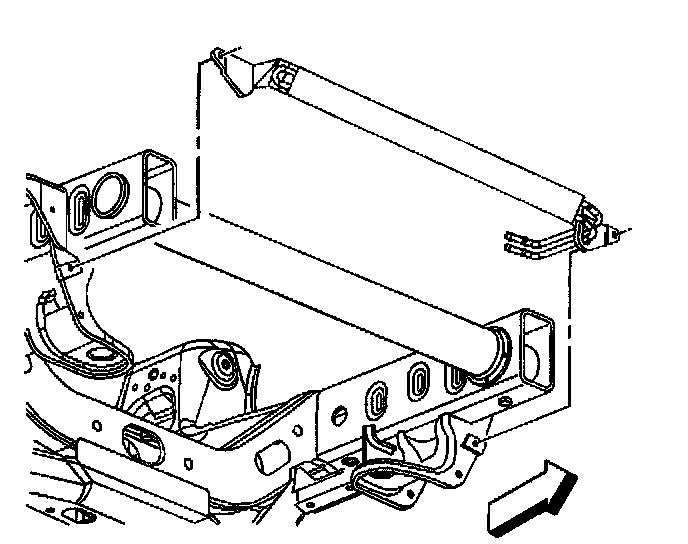

1. Install the power steering cooler to the radiator support.





Notice: Refer to Fastener Notice in Service Precautions.

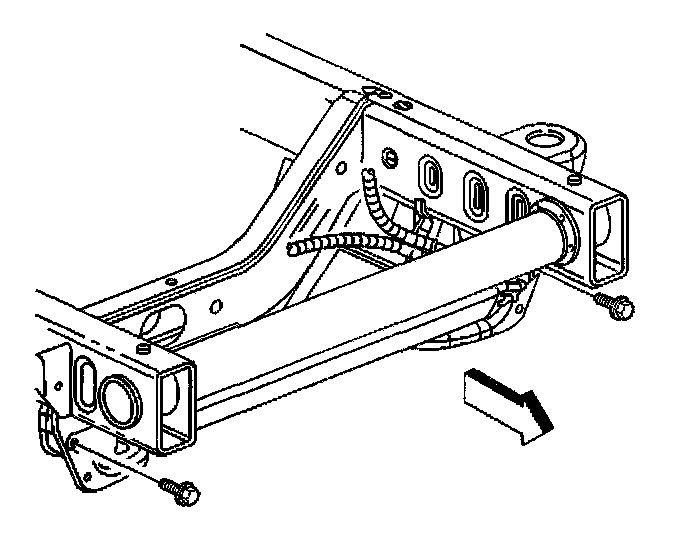

2. Install the power steering cooler mounting bolts.
Tighten the bolts to 20 Nm (15 ft. lbs.).

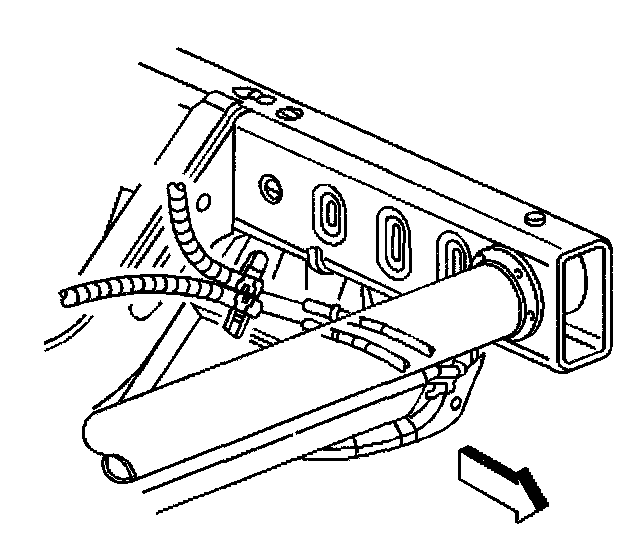

3. Connect the power steering cooler hoses to the power steering cooler.
4. Install the front fascia.
5. Remove the drain pan from under the vehicle.
6. Lower the vehicle.
7. Fill and bleed the power steering system.
