Wiring Diagram Index

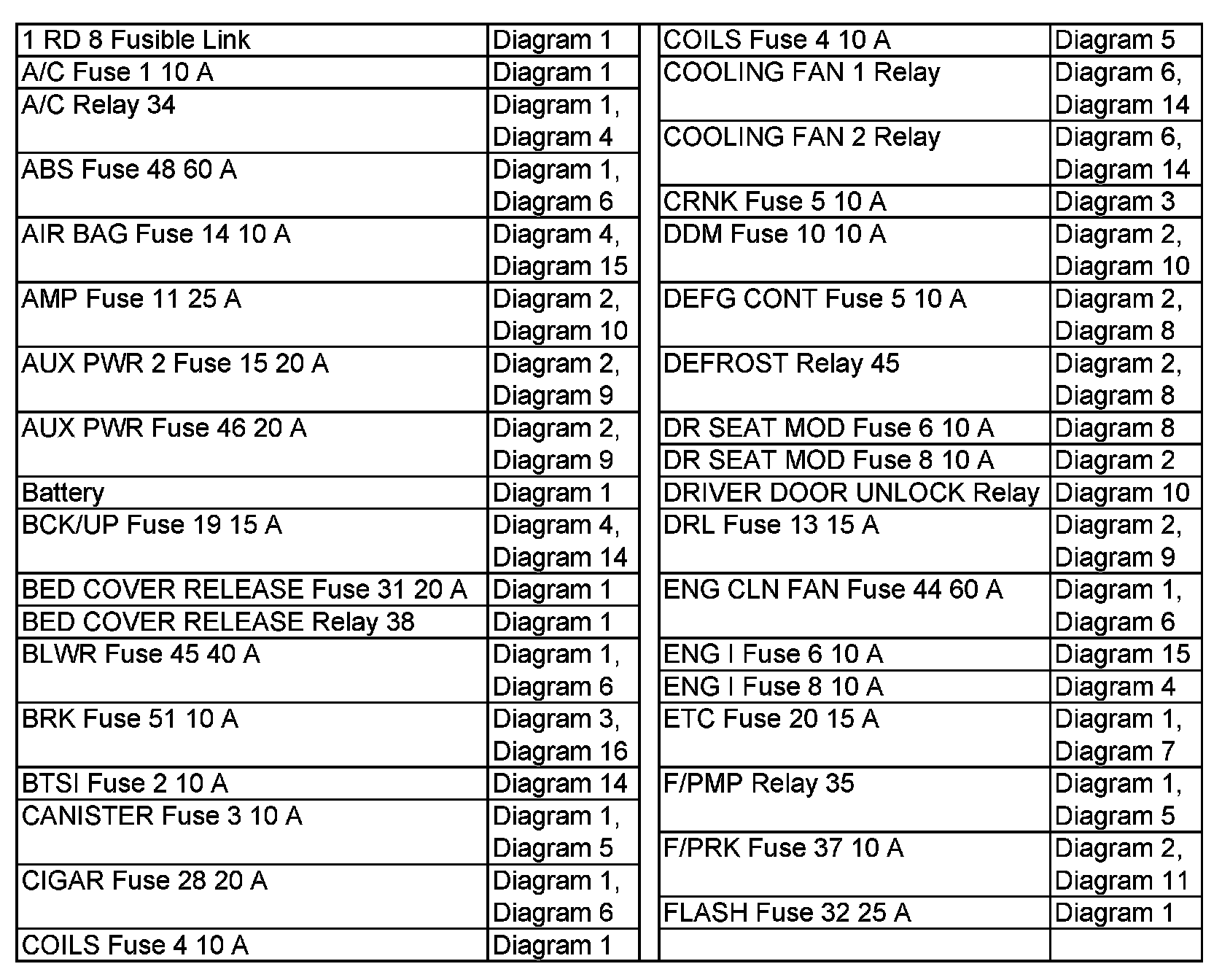

1 RD 8 Fusible Link - FLASH Fuse:
FLASH Fuse - O2 B Fuse:

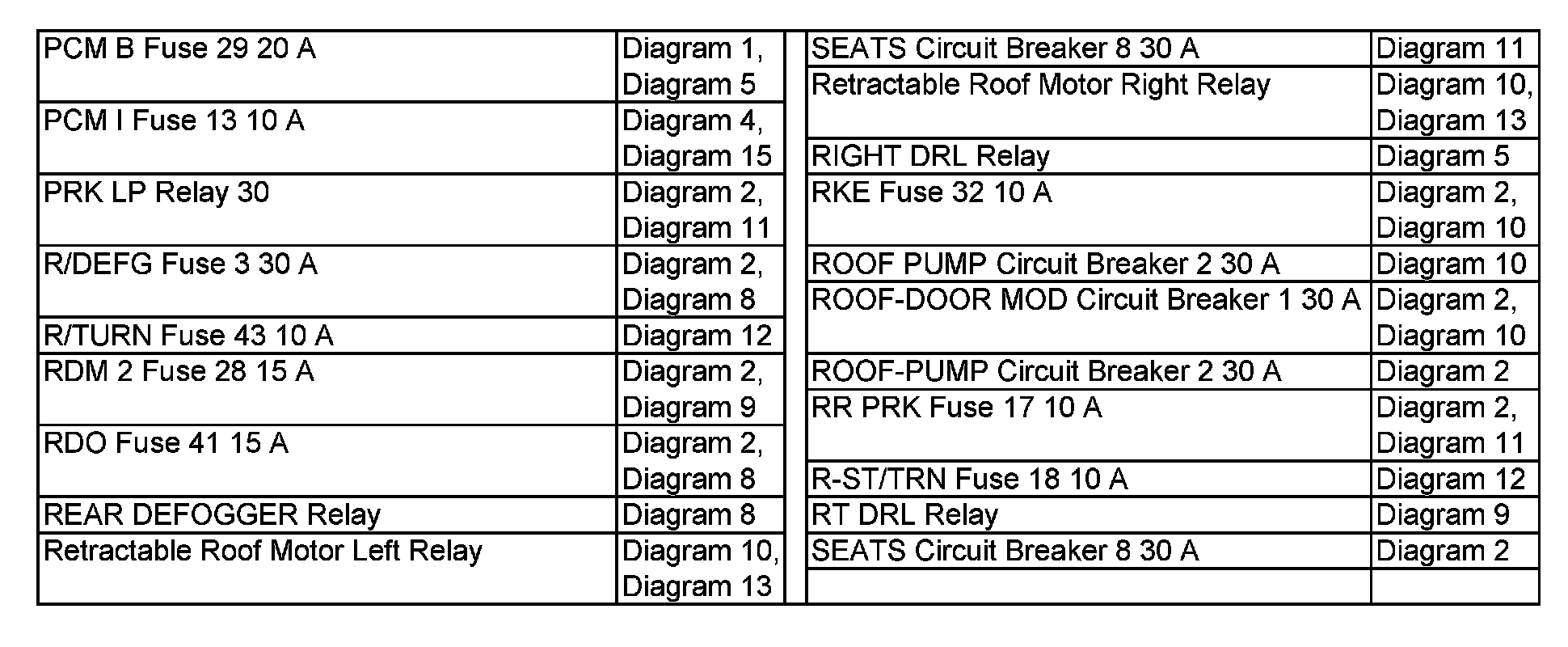

PCM B Fuse - SEATS Circuit Breaker:

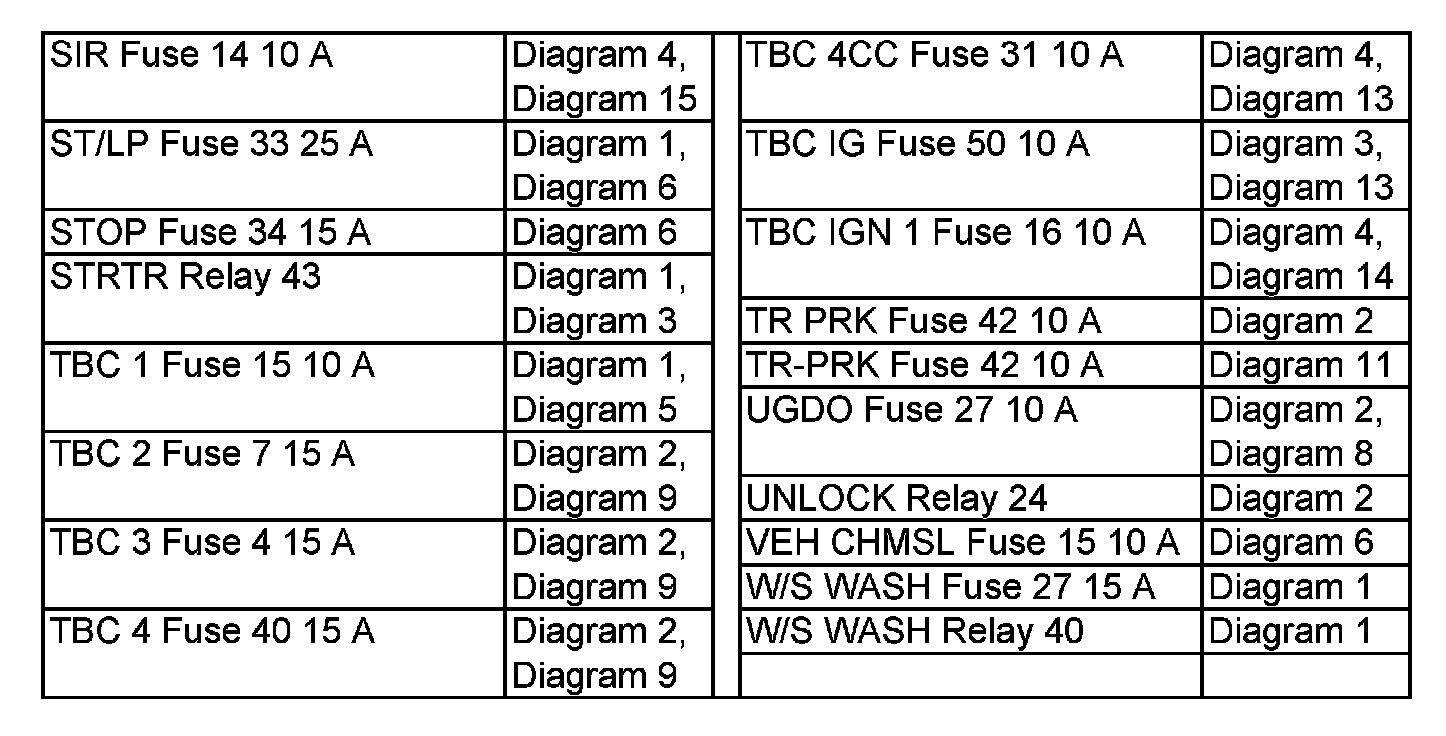

SIR Fuse - W/S WASH Relay:
