Clockspring Assembly / Spiral Cable: Diagrams

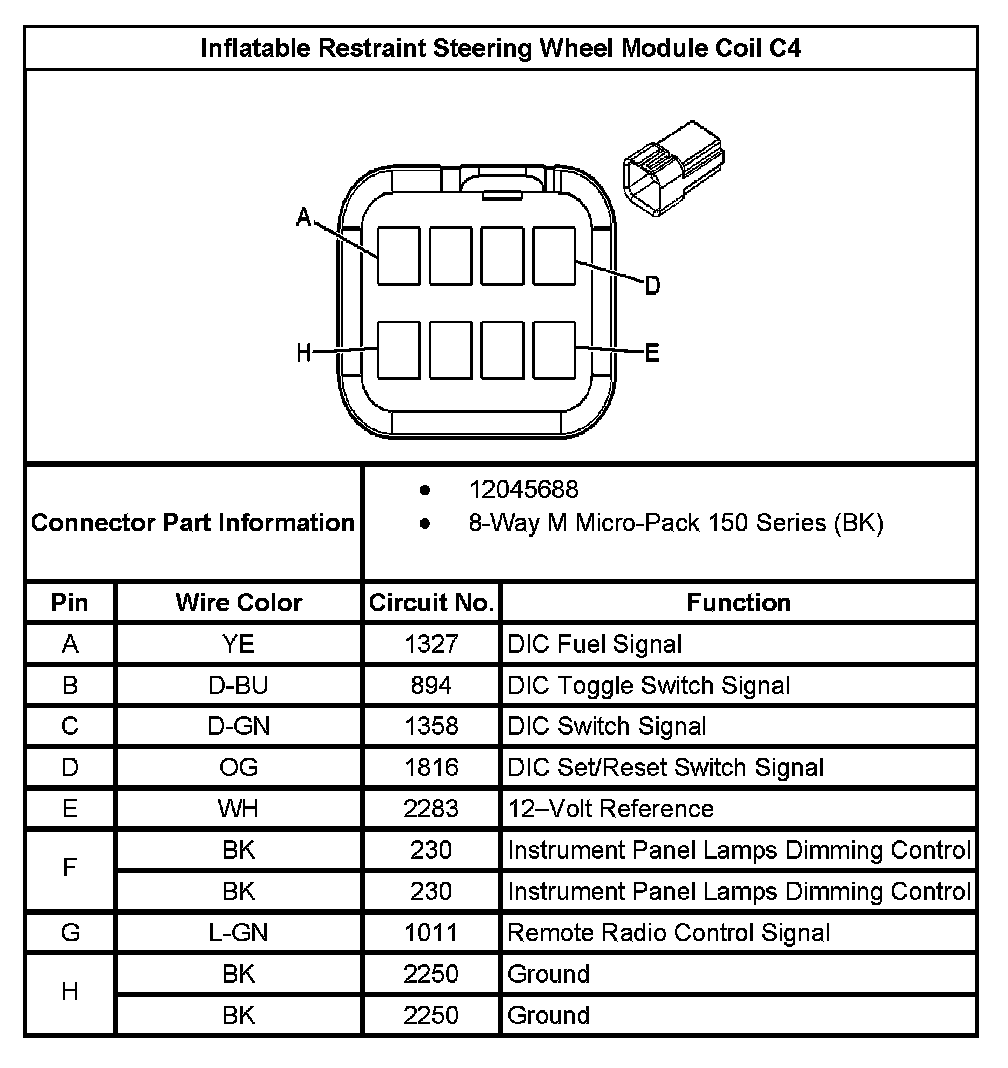

Inflatable Restraint Steering Wheel Module Coil C4:

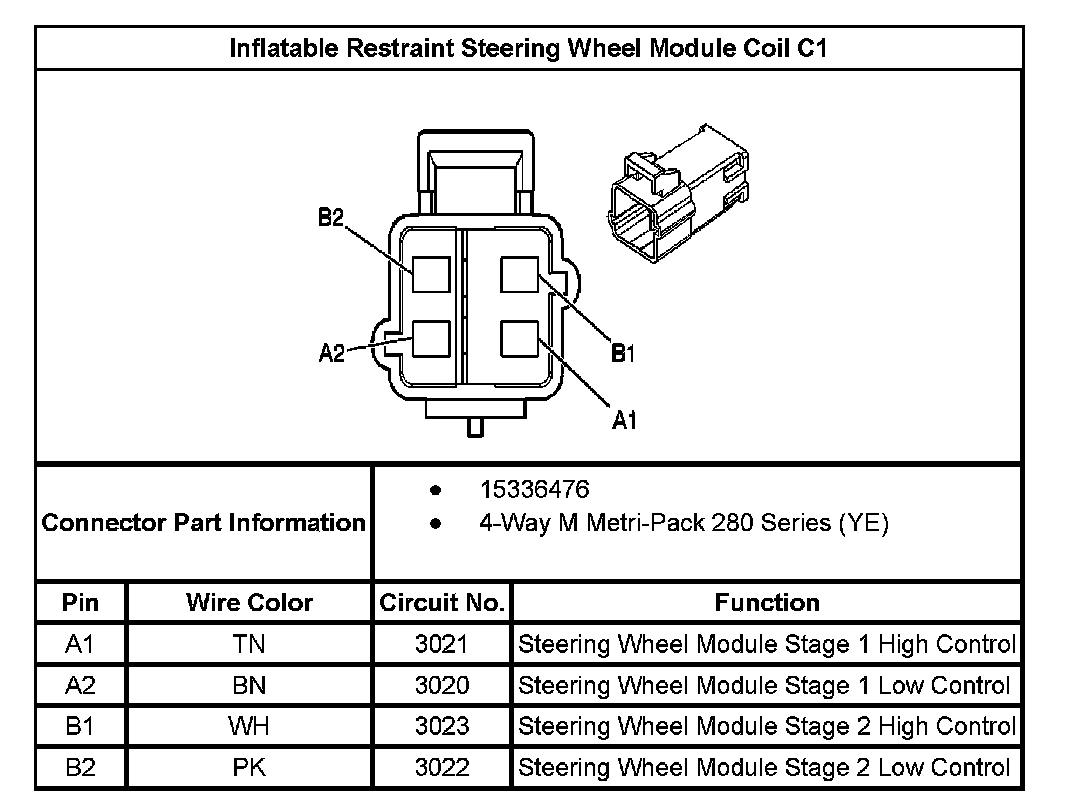

Inflatable Restraint Steering Wheel Module Coil C1:

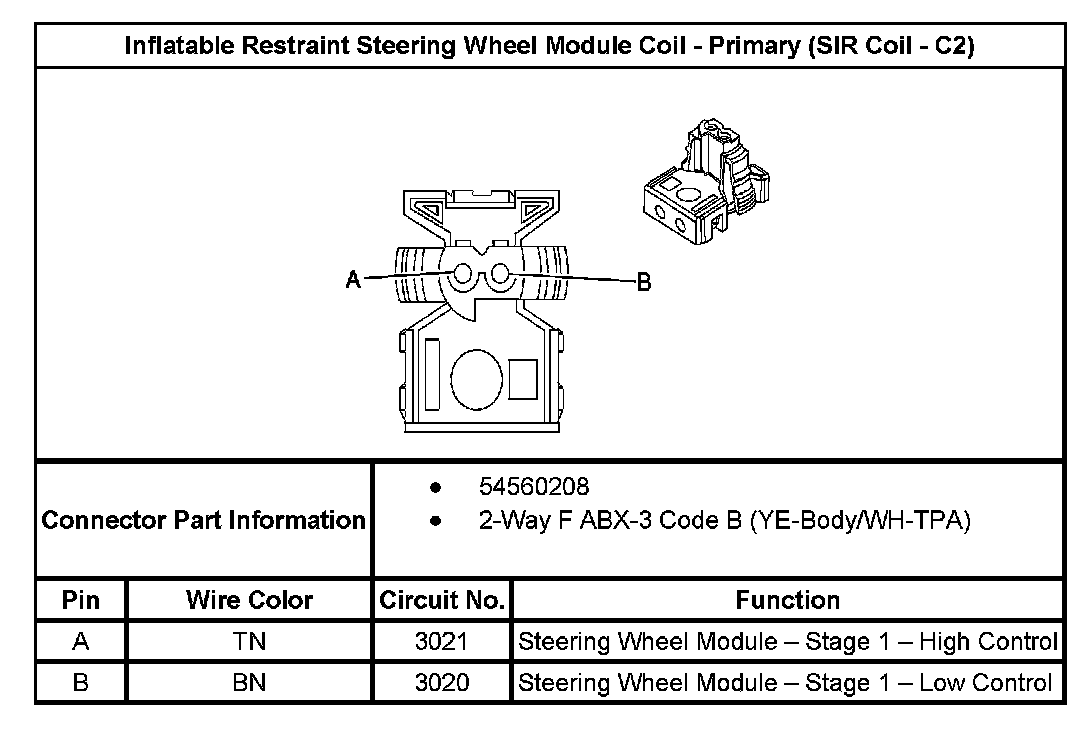

Inflatable Restraint Steering Wheel Module Coil - Primary (SIR Coil - C2):

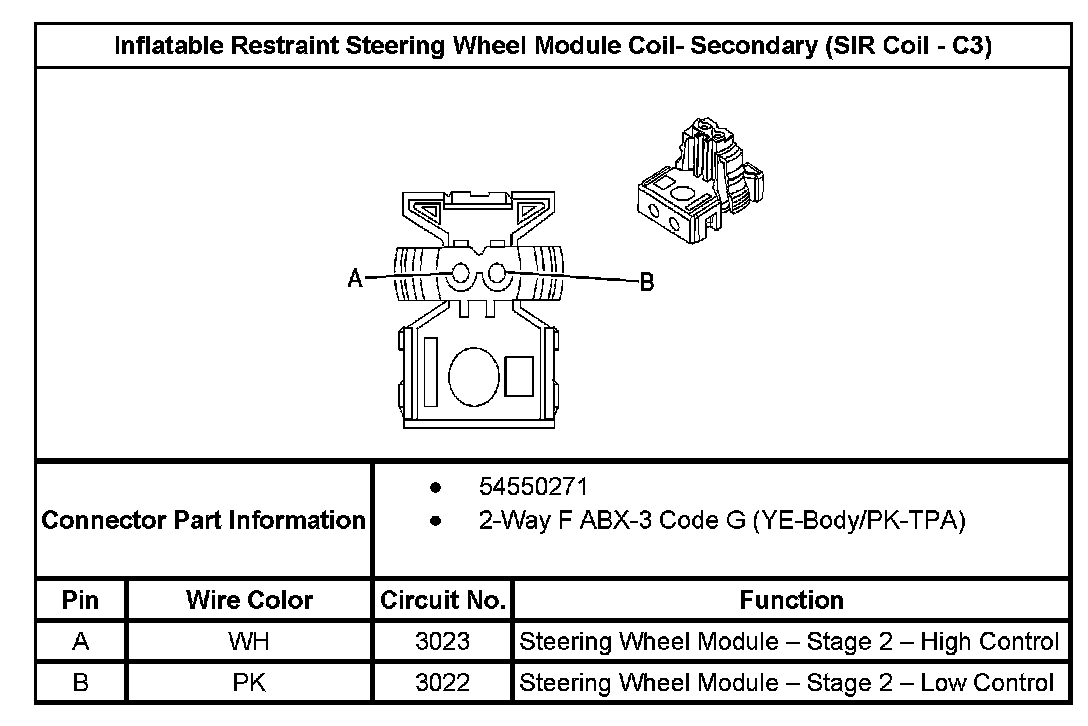

Inflatable Restraint Steering Wheel Module Coil - Secondary (SIR Coil - C3):

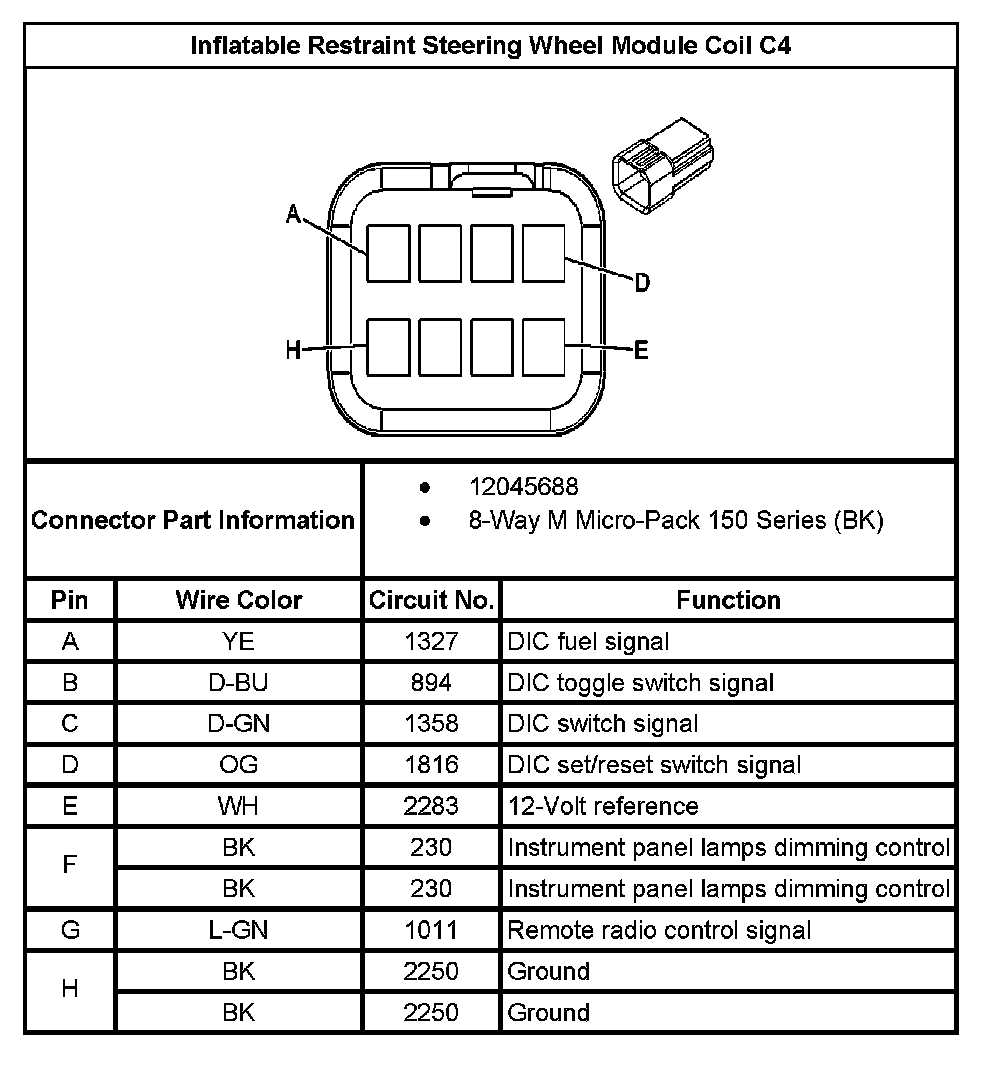

Inflatable Restraint Steering Wheel Module Coil C4:
