Fuel Hose/Pipes Replacement - Engine Compartment

FUEL HOSE/PIPES REPLACEMENT - ENGINE COMPARTMENT

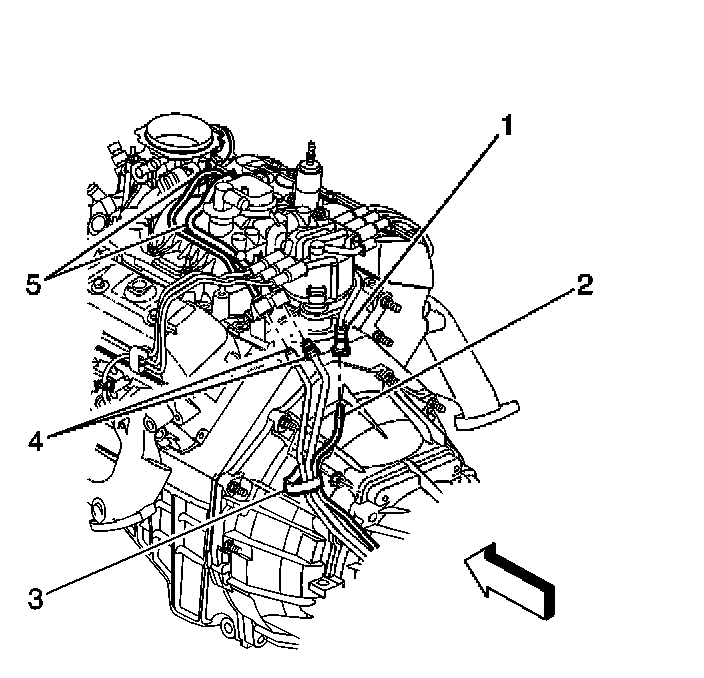

REMOVAL PROCEDURE

IMPORTANT: Clean all the fuel pipe connections and surrounding areas before disconnecting the pipes in order to avoid possible fuel system contamination.




1. Remove the air cleaner outlet duct.
2. Relieve the fuel system pressure. Refer to Fuel Pressure Relief Procedure.
3. Disconnect the fuel feed/return pipes (4) from the engine compartment pipes (5).
4. Discard the O-ring seals from fuel feed/return pipes.
5. Cap the fuel pipes in order to prevent possible fuel system contamination.

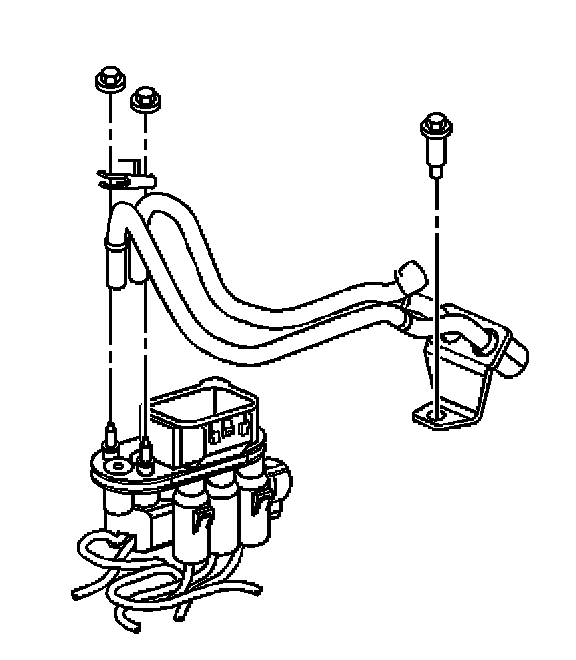

6. Remove the fuel feed/return pipe bracket nuts.
7. Remove the fuel feed/return pipe bracket.
8. Remove the fuel feed/return pipe bolt.
9. Pull straight up on the pipes in order to remove the pipes from the fuel meter body.

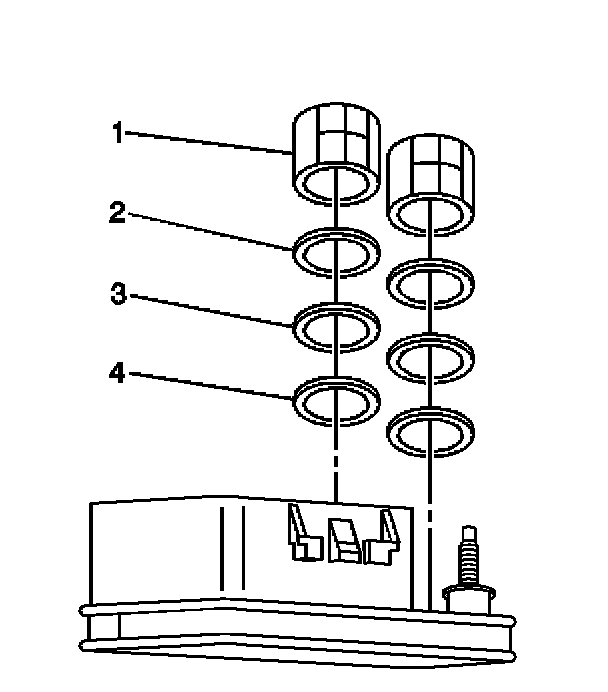

10. Remove and discard the following components from the fuel meter body:
- Fuel seal retainers (1)
- Upper fuel seals (2)
- Spacer rings (3)
- Lower fuel seals (4)

INSTALLATION PROCEDURE

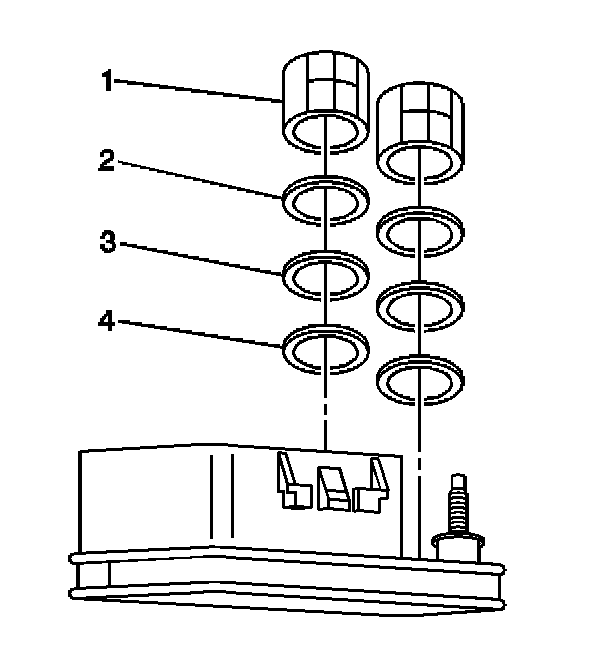

1. Install the following NEW components to the fuel meter body:
- Lower fuel seals (4)
- Spacer rings (3)
- Upper fuel seals (2)
- Fuel seal retainers (1)




2. Apply a few drops of clean engine oil to the fuel feed/return pipe ends.

CAUTION: Always apply a few drops of clean engine oil to the male pipe ends before connecting the fuel pipe fittings in order to reduce the risk of fire and personal injury. This will ensure proper reconnection and prevent a possible fuel leak. During normal operation, the O-rings located in the female connector will swell and may prevent proper reconnection if not lubricated.

3. Install the fuel feed/return pipes to the fuel meter body.
4. Install the fuel feed/return pipe bracket.
5. Install the fuel feed/return pipe bracket nuts.

NOTE: Refer to Fastener Notice in Service Precautions.

6. Install the fuel feed/return pipe bolt.

Tighten
1. Tighten the bolt to 6 N.m (53 lb in).
2. Tighten the nuts to 3 N.m (27 lb in).




3. Remove the cap from the fuel pipes.
4. Install NEW O-rings on the fuel feed/return pipes.

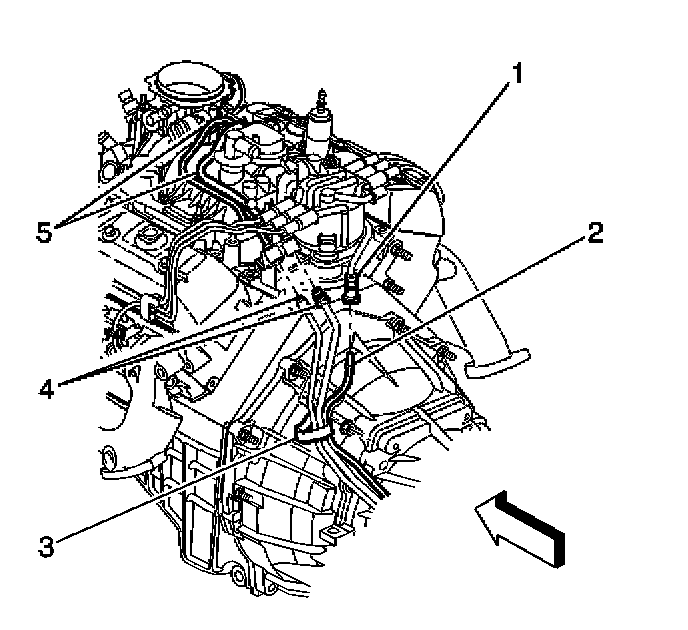

5. Connect the fuel feed/return pipes (4) to the engine compartment pipes (5).

Tighten
Tighten the fittings to 28 N.m (21 lb ft).

6. Test the system for leaks using the following procedure:
6.1. Turn the ignition ON, with the engine OFF for 2 seconds.
6.2. Turn the ignition OFF for 10 seconds.
6.3. Turn the ignition ON, with the engine OFF.
6.4. Inspect for fuel leaks.
7. Install the air cleaner outlet duct.
