Chevy Truck
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Transmission Position Sensor/Switch
>>
Diagrams
>>

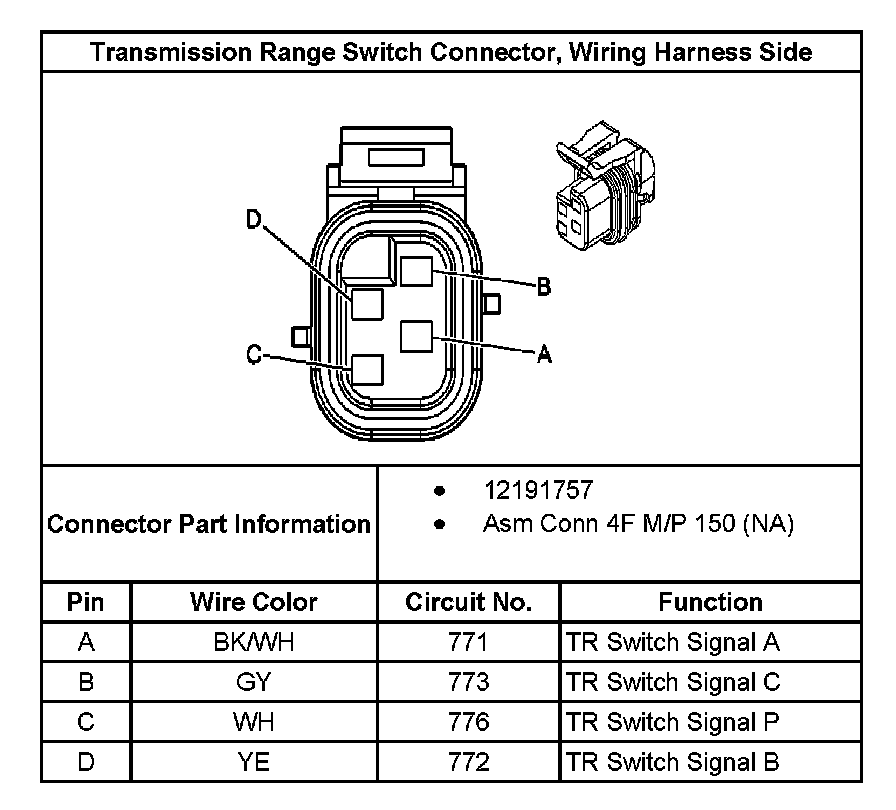

Transmission Range Switch Connector, Wiring Harness Side
Transmission Range Switch Connector, Wiring Harness Side
Transmission Range Switch Connector, Wiring Harness Side:
