Chevy Truck
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Relays and Modules - Computers and Control Systems
>>
Electronic Throttle Control Module
>>
Diagrams
>>

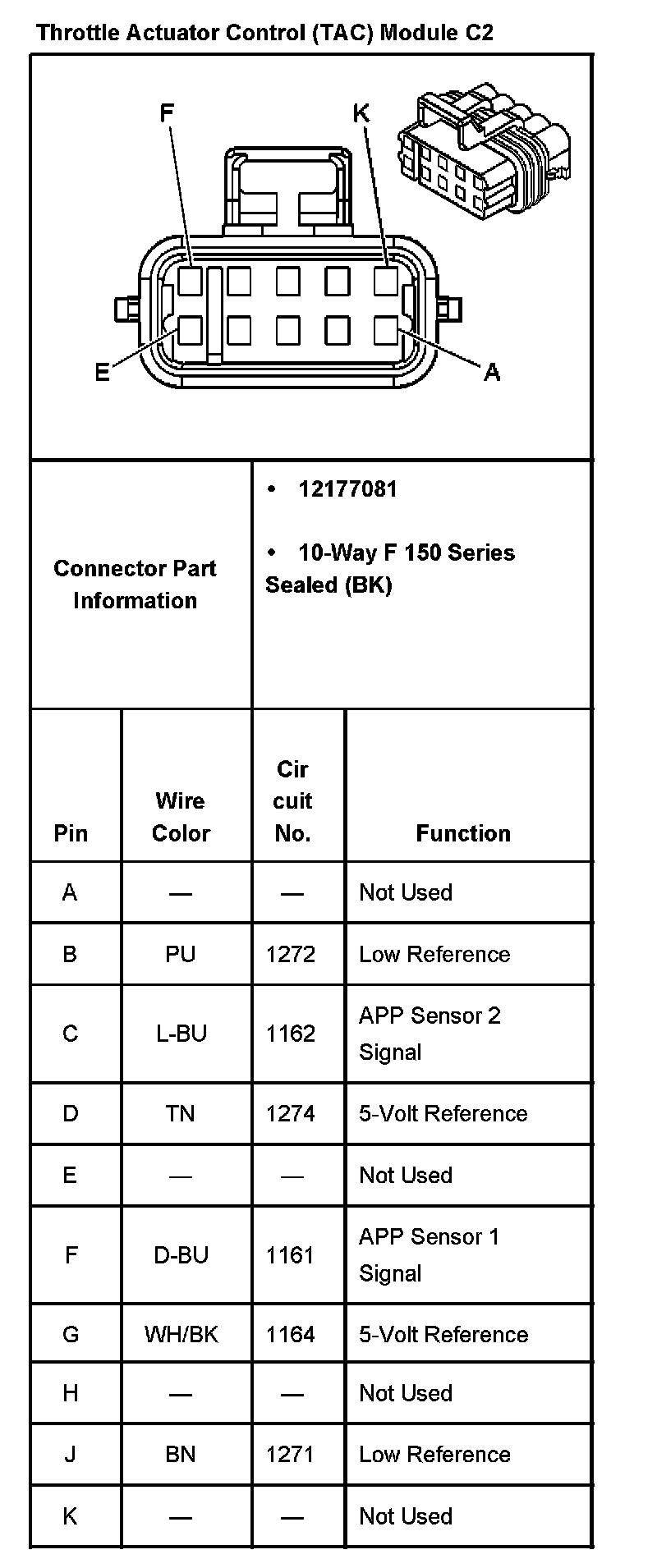

Throttle Actuator Control (TAC) Module C2
Throttle Actuator Control (TAC) Module C2
Throttle Actuator Control (TAC) Module C2:
