Instrument Panel (I/P) Compartment Lamp Replacement

INSTRUMENT PANEL (I/P) COMPARTMENT LAMP REPLACEMENT

REMOVAL PROCEDURE




1. Open the instrument panel (I/P) compartment door.

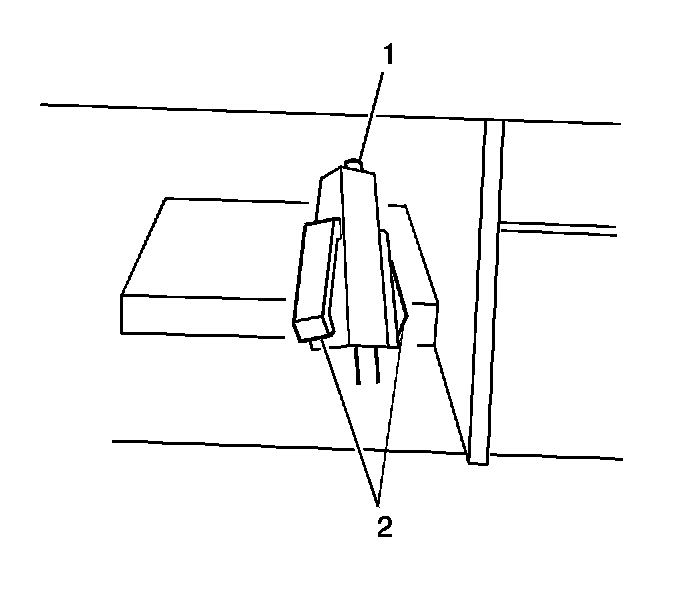

2. Compress the tabs (2) on the switch in order in release it from the I/P.
3. Remove the bulb (1).
4. Disconnect the electrical connector.

INSTALLATION PROCEDURE




1. Install the bulb (1).
2. Connect the electrical connector.
3. Slide the tabs (2) on the switch into the mounting hole in the I/P in order to secure the switch in to place.
