Recirculation Actuator

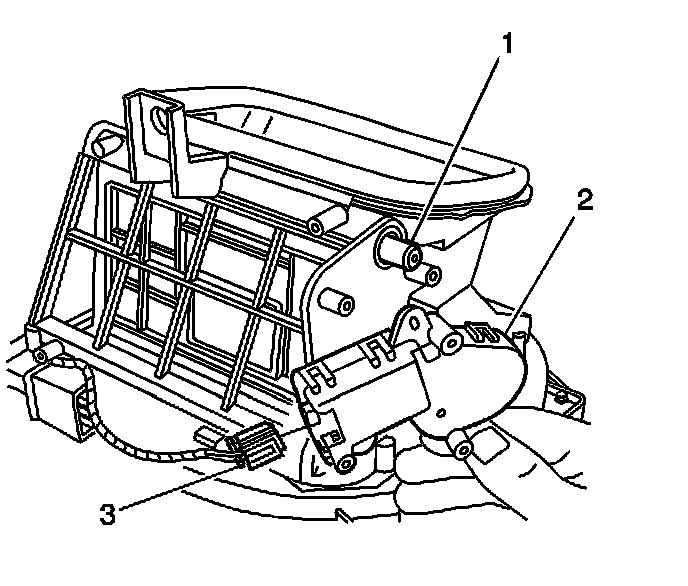

RECIRCULATION ACTUATOR REPLACEMENTREMOVAL PROCEDURE
1. Remove the HVAC module assembly.
2. Remove the 3 actuator screws (1).
3. Remove the electrical connector (3) from the recirculation actuator (2).
4. Remove the recirculation actuator (2).

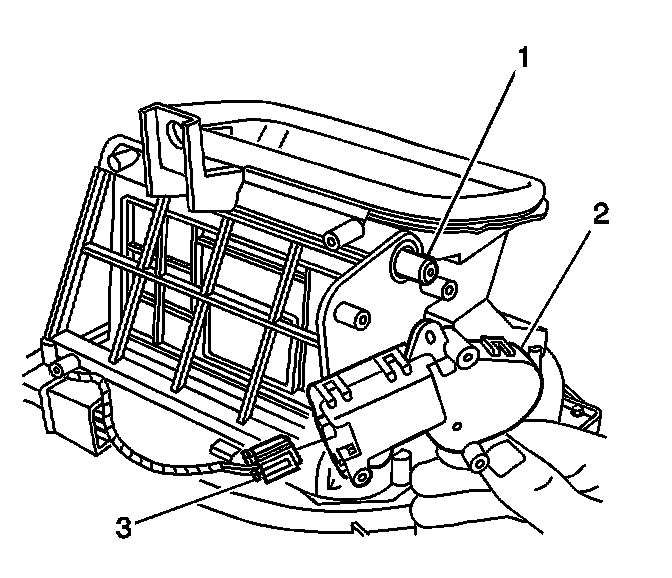

INSTALLATION PROCEDURE
1. Connect the electrical connector (3) to the recirculation actuator (2).
2. Install the recirculation actuator (2).
NOTE: Refer to Fastener Notice in Service Precautions.
3. Install the 3 screws (1) to the recirculation actuator (2).
Tighten
Tighten the screws to 1.9 N.m (17 lb in).
4. Install the HVAC module assembly.
