Mode Actuator

MODE ACTUATOR REPLACEMENT

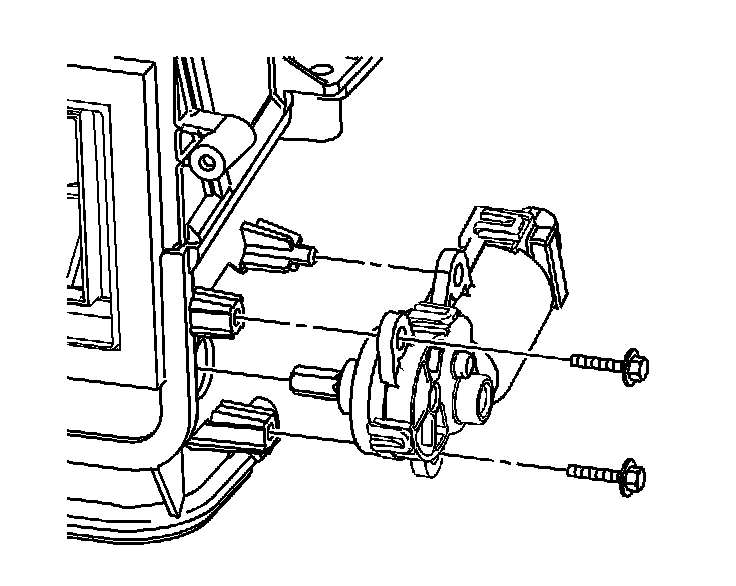

REMOVAL PROCEDURE




1. Remove the HVAC module assembly.
2. Remove the 3 mode actuator screws.
3. Remove the electrical connector from the mode actuator.
4. Remove the mode actuator.

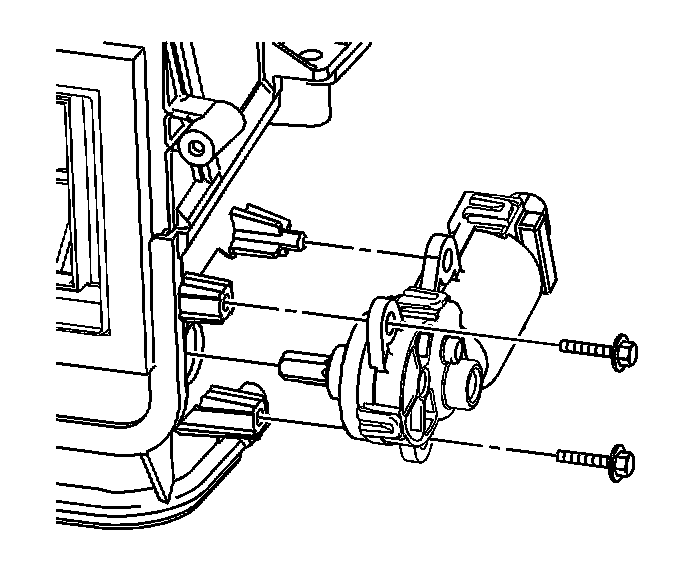

INSTALLATION PROCEDURE




1. Connect the electrical connector to the mode actuator.
2. Install the mode actuator.

NOTE: Refer to Fastener Notice in Service Precautions.

3. Install the 3 screws to the mode actuator.

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

4. Install the HVAC module assembly.
