Hanger - Right

Adjustable Exhaust Hanger Replacement - Right

Removal Procedure





1. Raise the vehicle. Refer to Vehicle Lifting.
2. Support the right side tail pipe with a suitable jack.

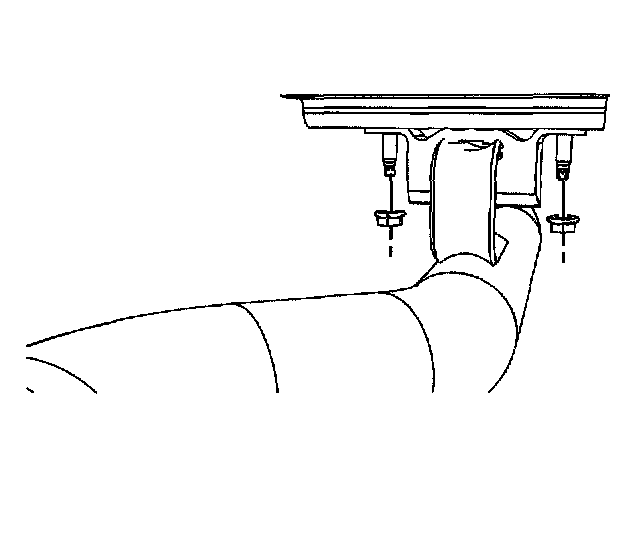

3. Remove the nuts retaining the right side exhaust insulator.





4. Lower the jack to gain clearance to remove the insulator.

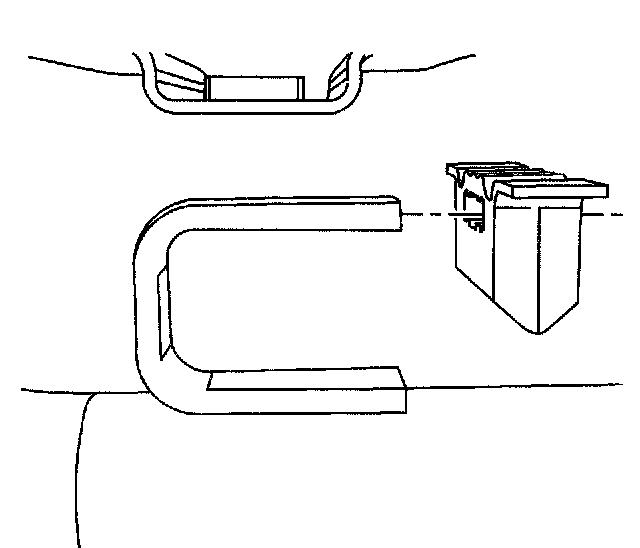

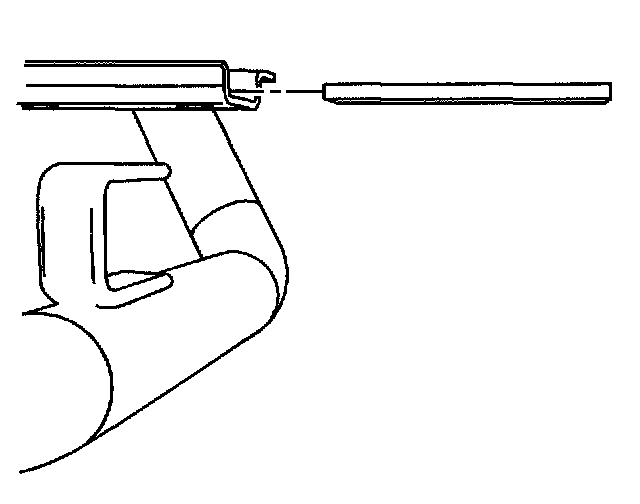

5. Slide the exhaust insulator off the exhaust tail pipe hanger.

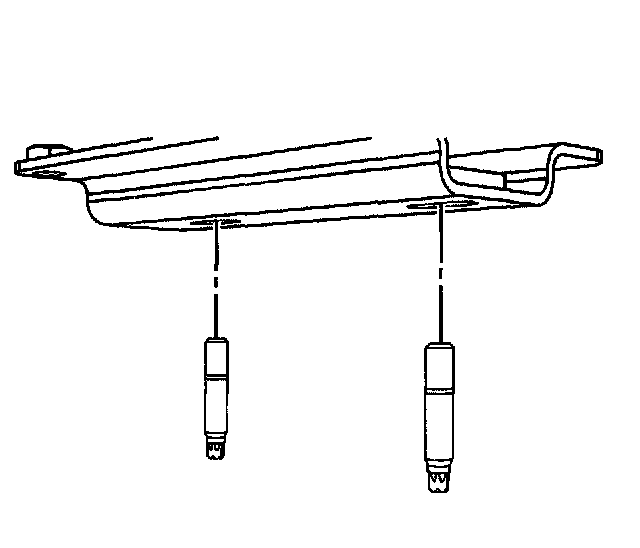

6. Remove the studs from the insulator bracket.





7. Remove the insulator bracket.

Installation Procedure





1. Install the insulator bracket.

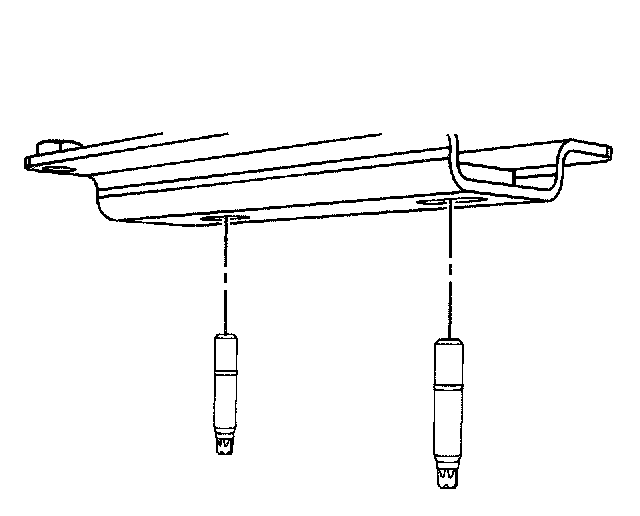

2. Install the studs to the insulator bracket.

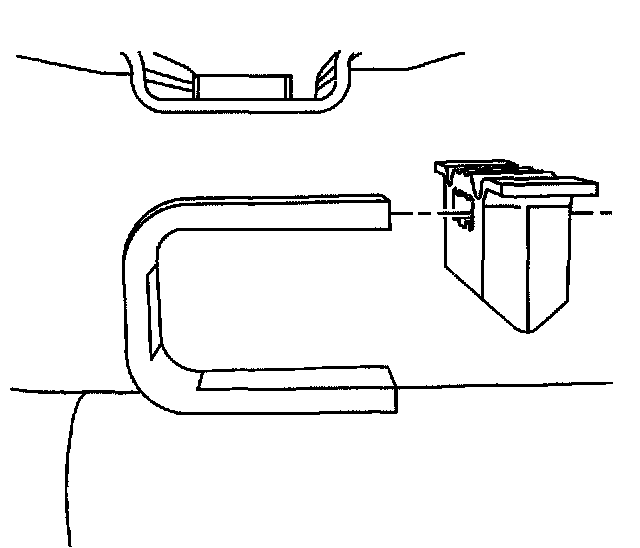

3. Slide the exhaust insulator on the exhaust tail pipe hanger.
4. Raise the jack that supports the tail pipe.

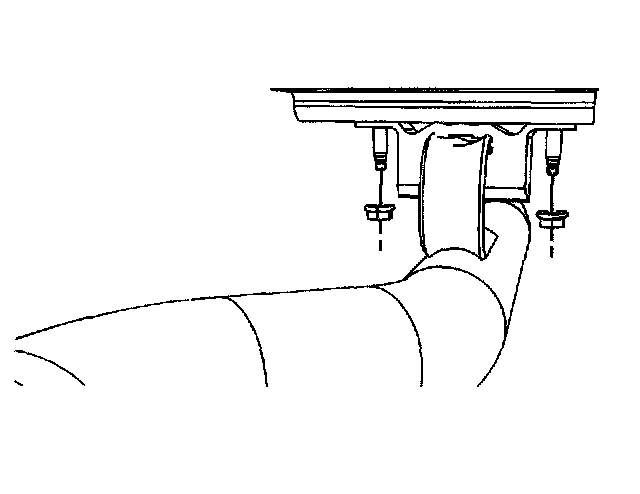

5. Install the nuts to retain the right side exhaust insulator.
6. Remove the jack that supports the tail pipe.

Notice: Refer to Fastener Notice in Service Precautions.

7. Align the tail pipes to fascia as necessary and then tighten the nuts.
^ Tighten the nuts to 25 Nm (18 ft. lbs.).
8. Lower the vehicle.
