Engine Mount Replacement - Right

Engine Mount Replacement - Right

Removal Procedure
1. Raise and support the vehicle.
2. Remove the front tire and wheels.
3. Remove the shock module.





4. Remove the lower engine mount retaining nuts from the engine mount frame bracket.





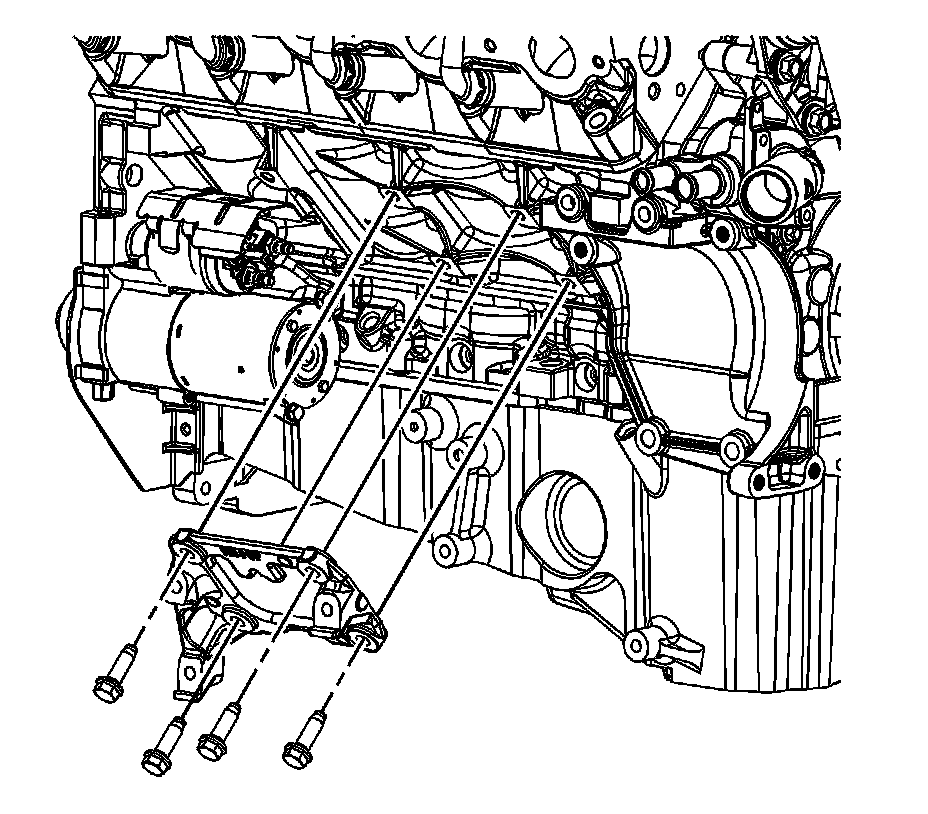

5. Remove the 3 mounting bolts from the upper engine mount bracket to engine block bracket.

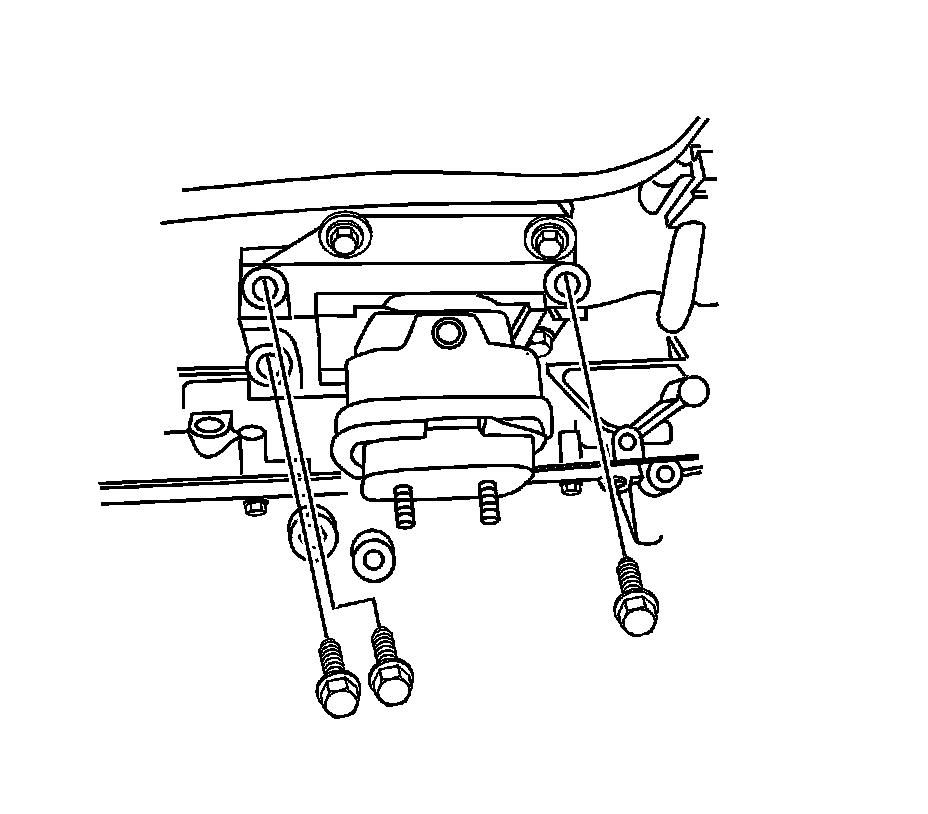

6. Remove the 3 frame engine mount bracket retaining bolts.





7. Install a pole jack underneath the oil pan.
8. Insert a block of wood between the oil pan and the pole jack.

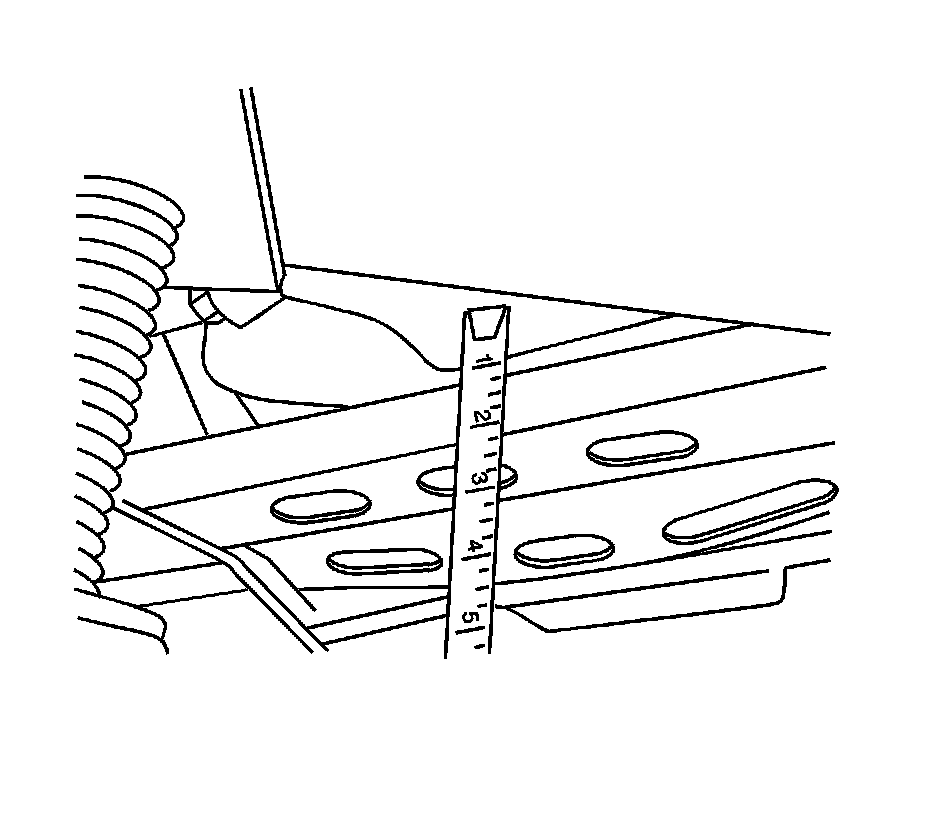

9. Raise the engine 2 1/4 inches measuring from the bottom of the oil pan to the front edge of the transmission support crossmember.
10. Shift the engine towards the left side of the frame.





11. Remove the engine mount frame bracket from the frame.

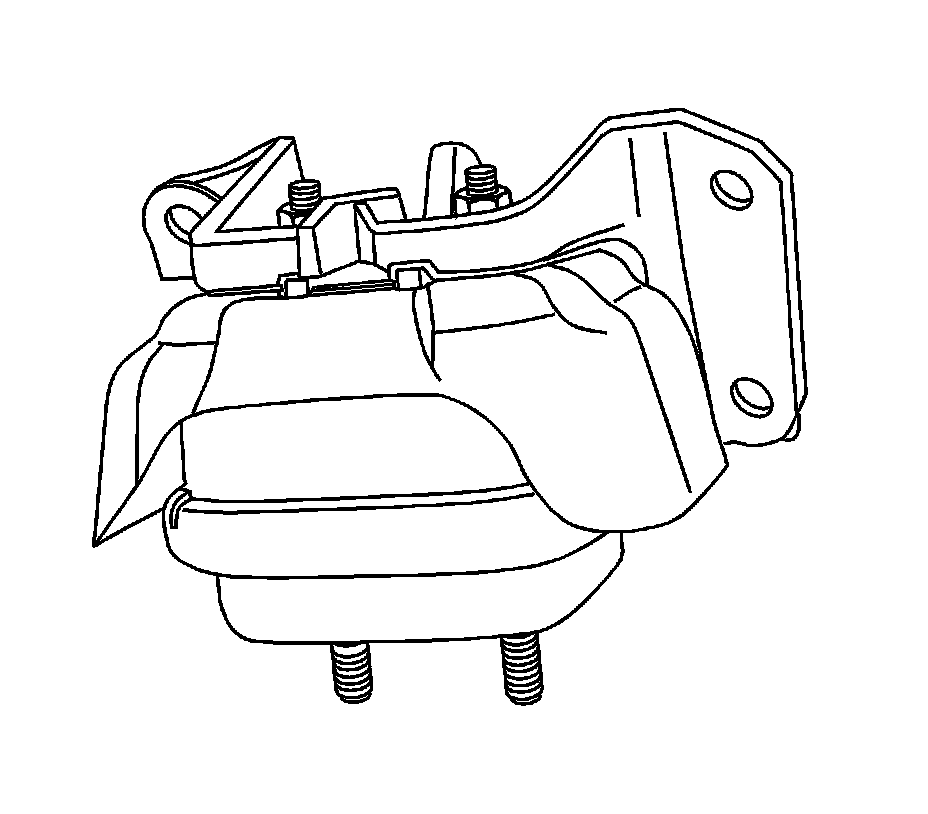

12. Remove the engine mount with upper engine mount bracket as an assembly.
13. Separate the engine mount from the upper engine mount bracket.





14. Remove the engine mount bracket spacer if damaged.

Installation Procedure





Notice:
Refer to Fastener Notice in Service Precautions.

1. Install the engine mount bracket spacer if it has been replaced.
Tighten the engine mount bracket spacer bolts to 50 Nm (37 ft. lbs.).





Important:
Make sure that the cut out side of the engine mount shield is positioned away from the engine.

2. Install the engine mount to the upper engine mount bracket.
Tighten the engine mount nuts to 50 Nm (37 ft. lbs.).





3. Install the upper engine mount bracket with engine mount to the engine.
Tighten the upper engine mount bracket bolts to 50 Nm (37 ft. lbs.).
4. Install the engine mount frame bracket to the frame.
5. Install the engine mount frame bracket retaining bolts.
Tighten the engine mount frame bracket retaining bolts to 100 Nm (74 ft. lbs.).
6. Shift engine back to the right side of the frame.
7. Install the left side engine mount frame bracket.
8. Install the left side engine mount frame bracket retaining bolts.
Tighten the left side engine mount frame bracket retaining bolts to 100 Nm (74 ft. lbs.).





9. Lower the engine, making sure to align engine mount studs with holes in frame bracket.
10. Remove the pole jack and block of wood.
11. Tighten the engine mount nuts.
Tighten the engine mount nuts to 50 Nm (37 ft. lbs.).
12. Install the shock module.
13. Install the front tire and wheels.
14. Lower the vehicle.
