Antilock Brakes / Traction Control Systems



ABS SCHEMATICS




Power, Ground and Electronic Brake Control Module

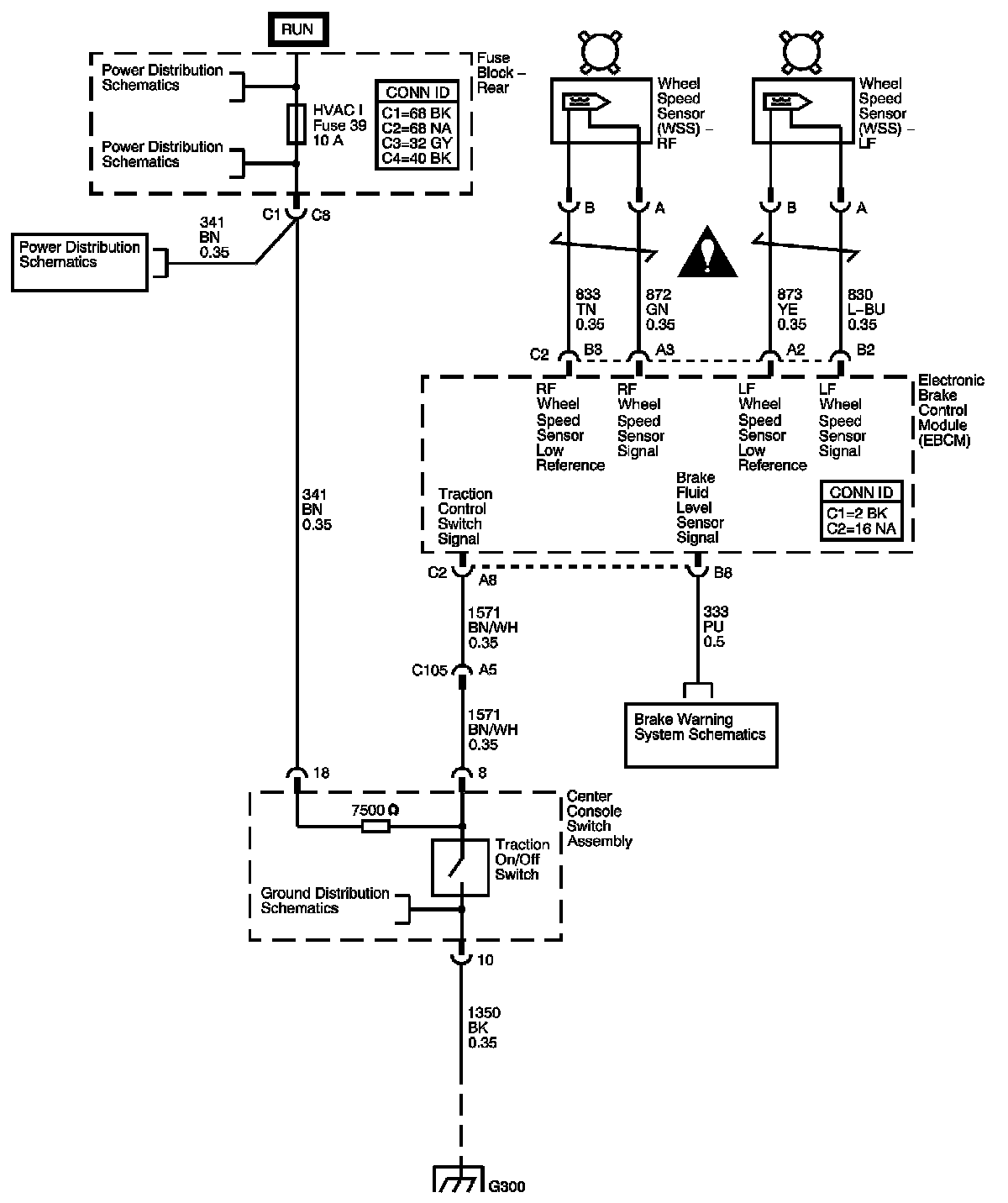

Wheel Speed Sensors and Traction Control
