Power Seat Switch
>>

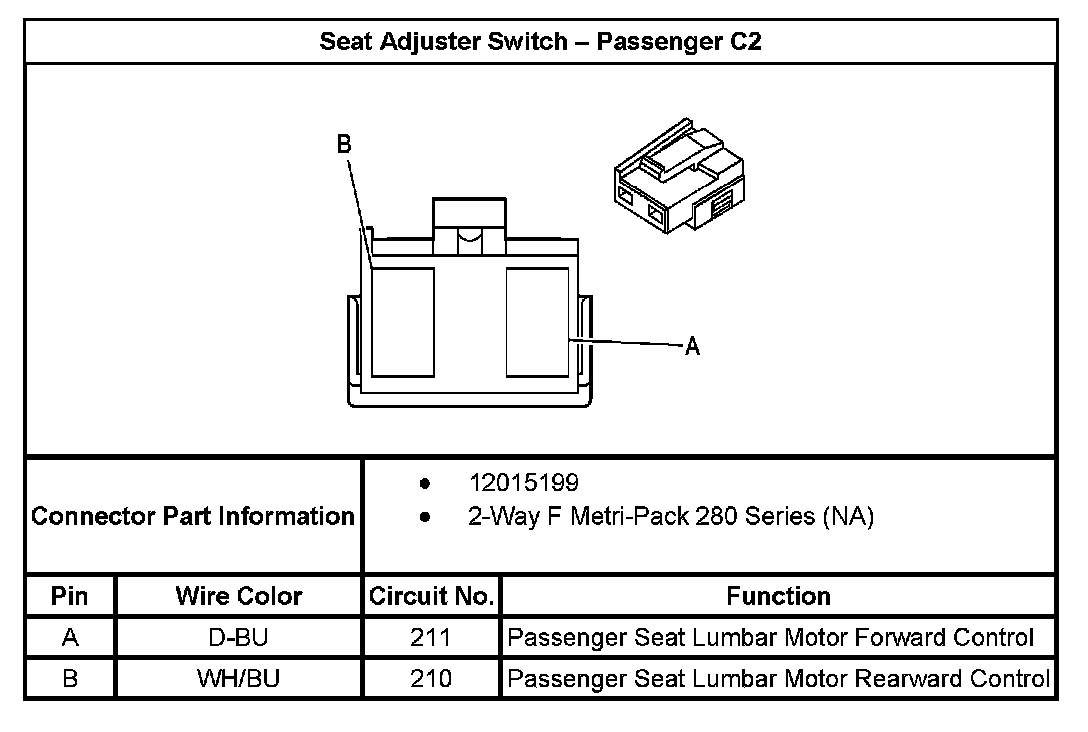

Seat Adjuster Switch - Passenger C2
Seat Adjuster Switch - Passenger C2
Seat Adjuster Switch - Passenger C2:
