Home
>>
Chevy Truck
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C600 - C699
>>
C600
C600

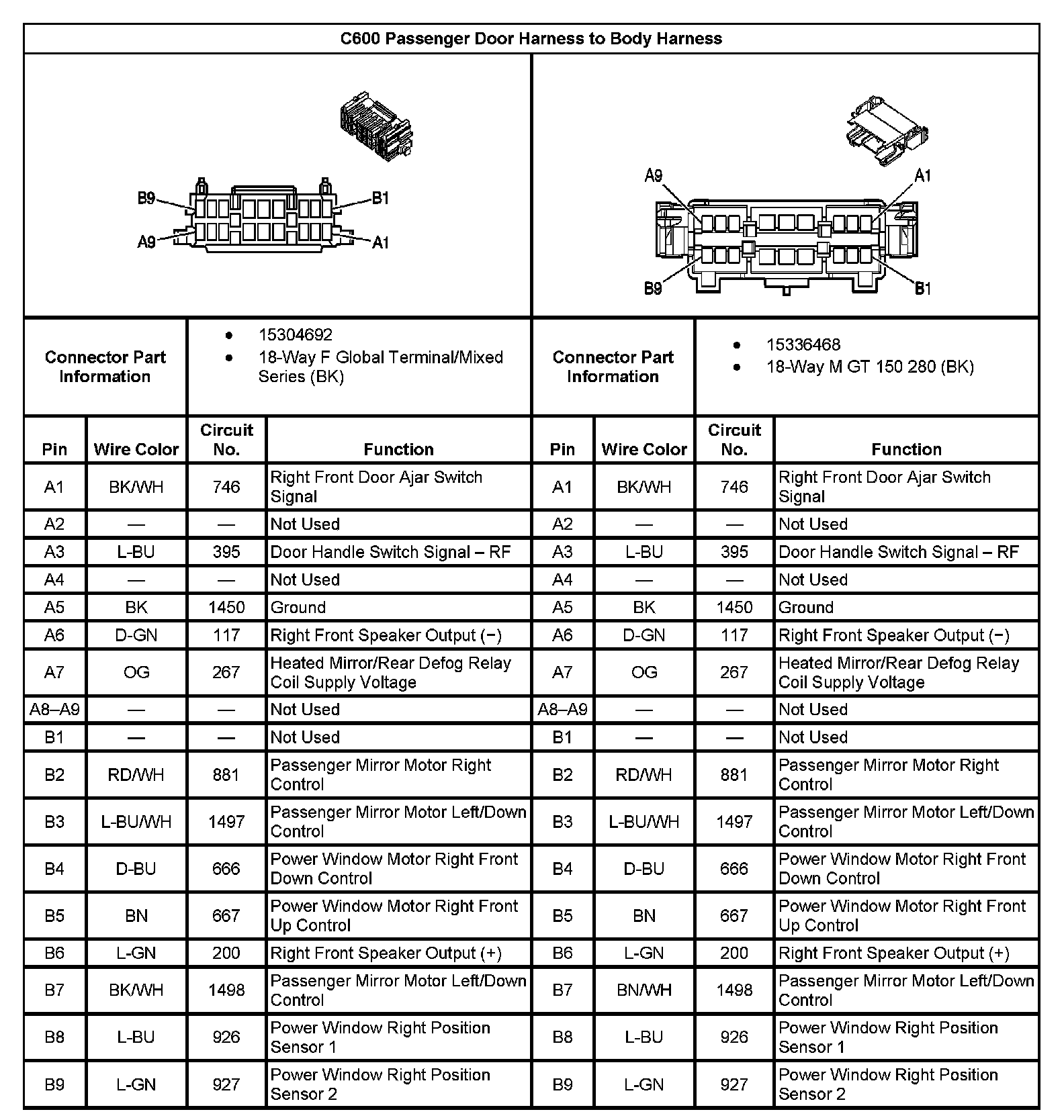

C600 Passenger Door Harness To Body Harness:
