Home
>>
Chevy Truck
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C300 - C399
>>
C304
C304

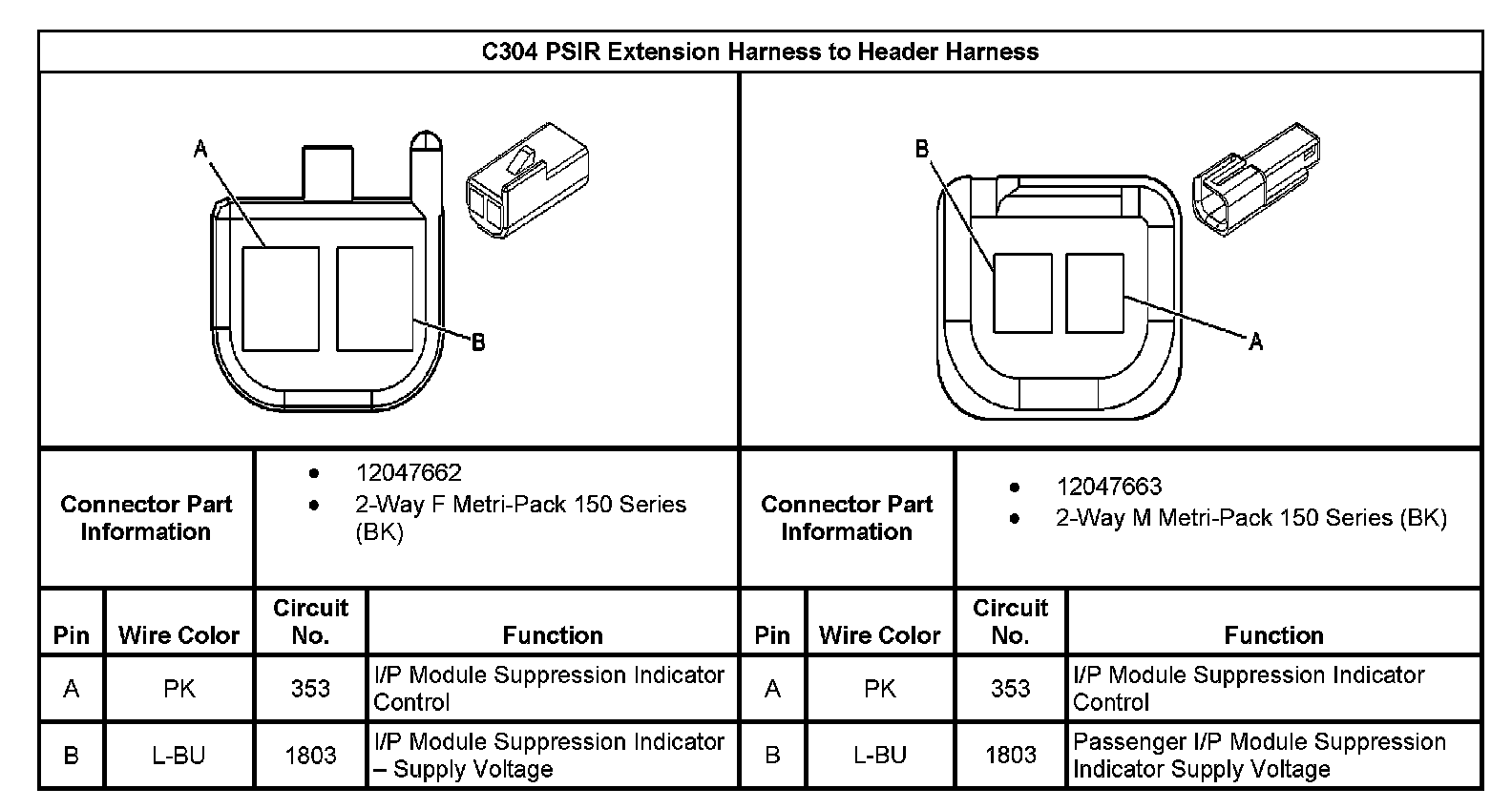

C304 PSIR Extension Harness To Header Harness:
