Chevy Truck
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Multiple Junction Connector
>>
C100 - C199
>>
C109
C109

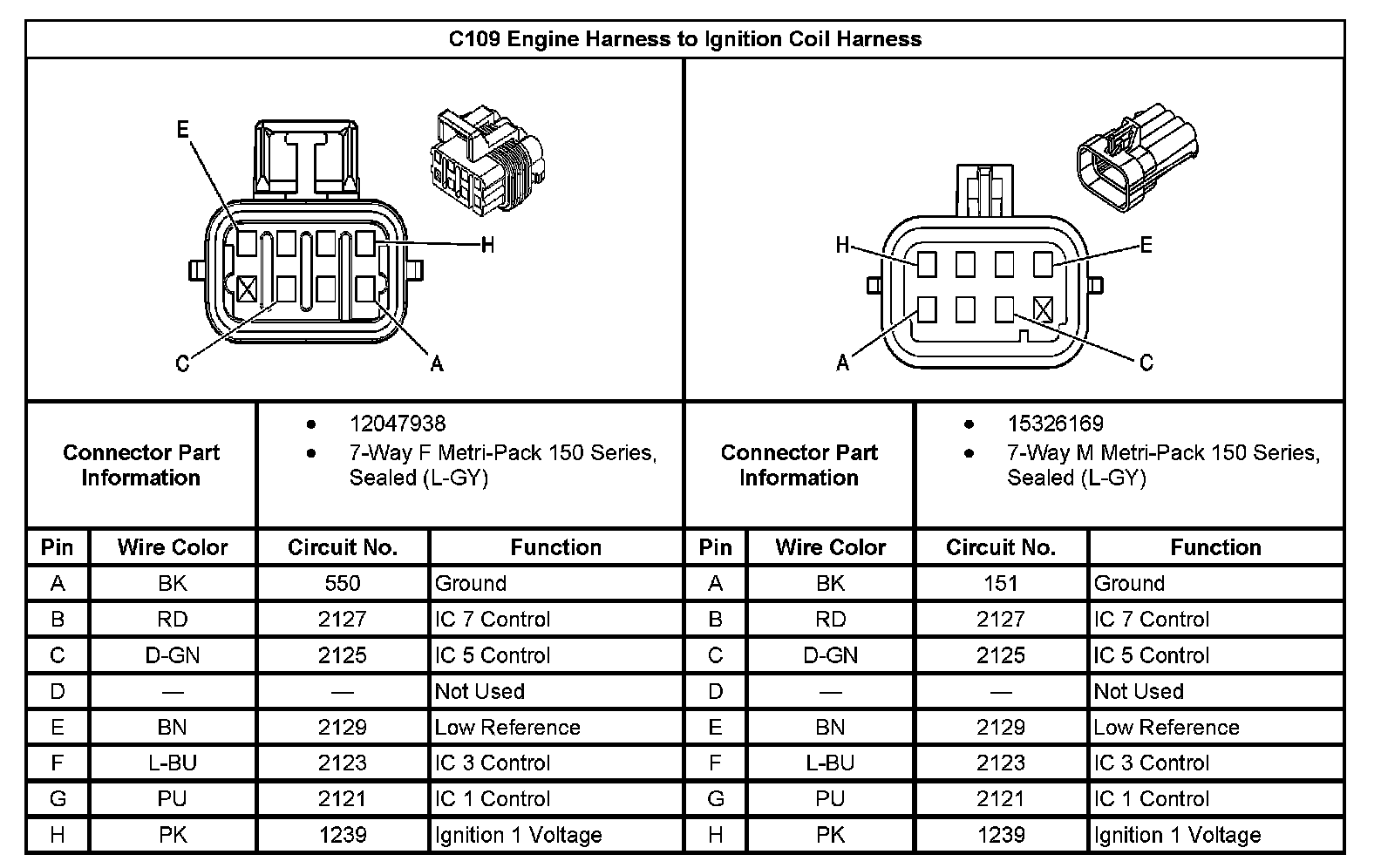

C109 Engine Harness To Ignition Coil Harness:
