Chevy Truck
>>
2003
>>
SSR V8-5.3L VIN P
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuel Pump
Fuel Pump

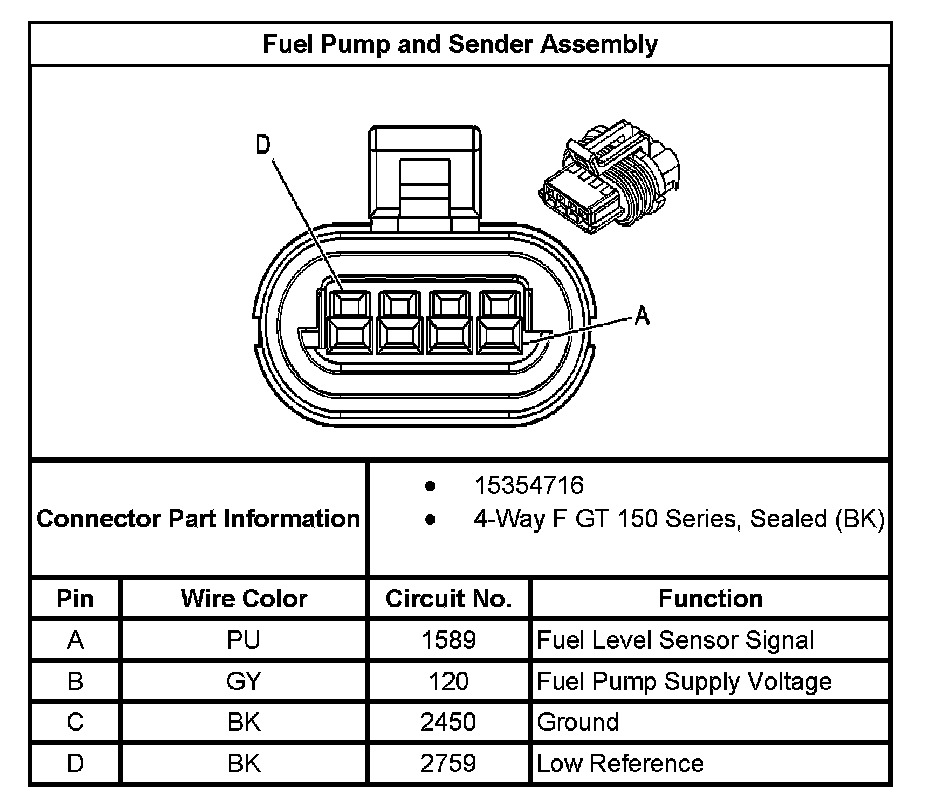

Fuel Pump and Sender Assembly:
Fuel Pump And Sender Assembly:
