Power Trunk / Liftgate Lock Switch: Diagrams

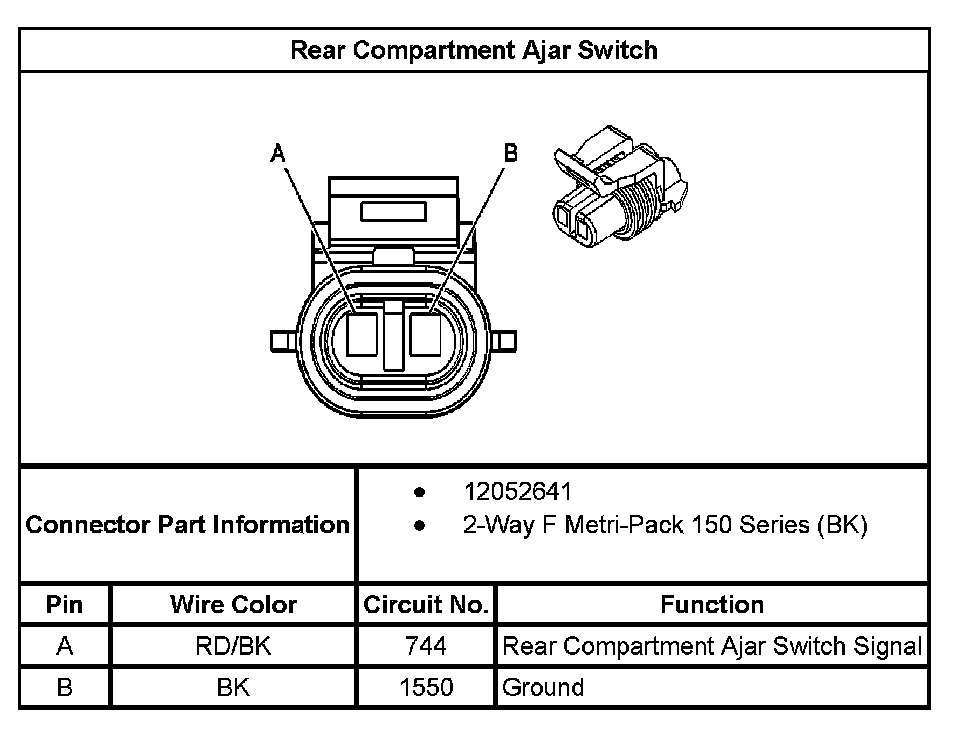

Rear Compartment Ajar Switch:



Rear Compartment Lid Release Switch/Actuator - Exterior:

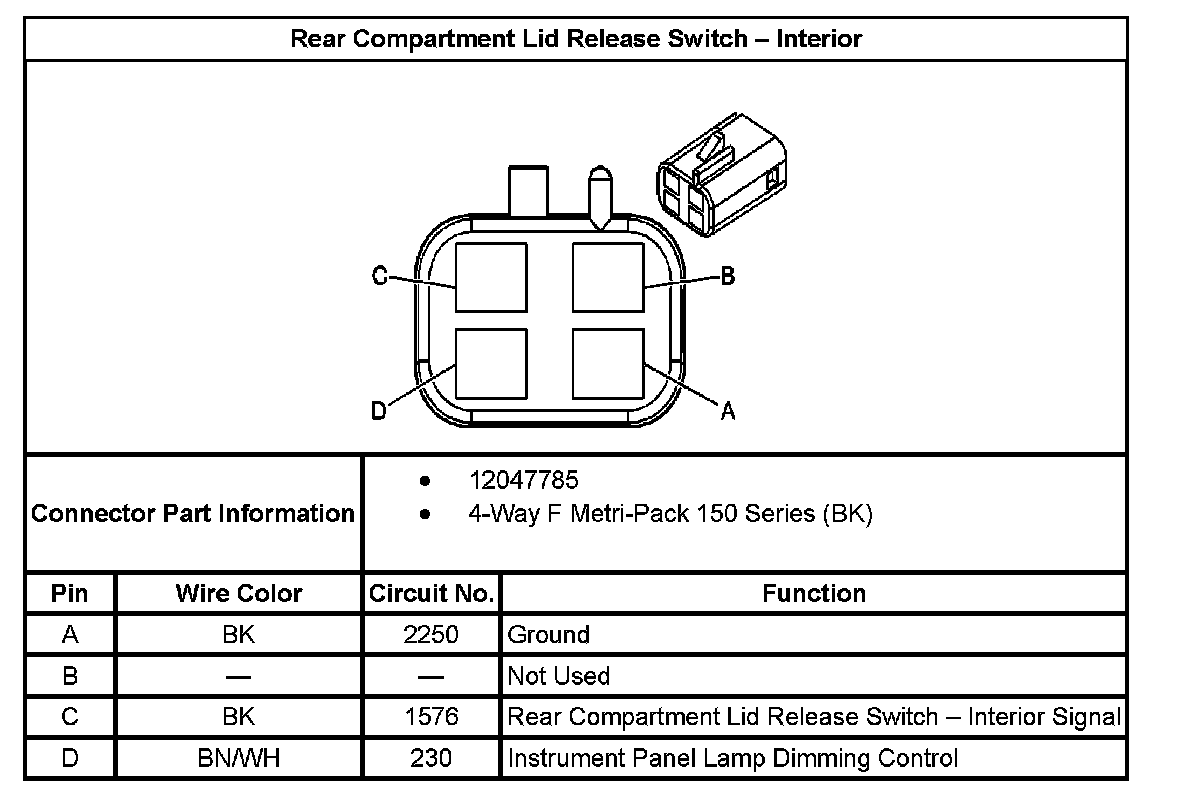

Rear Compartment Lid Release Switch - Interior:

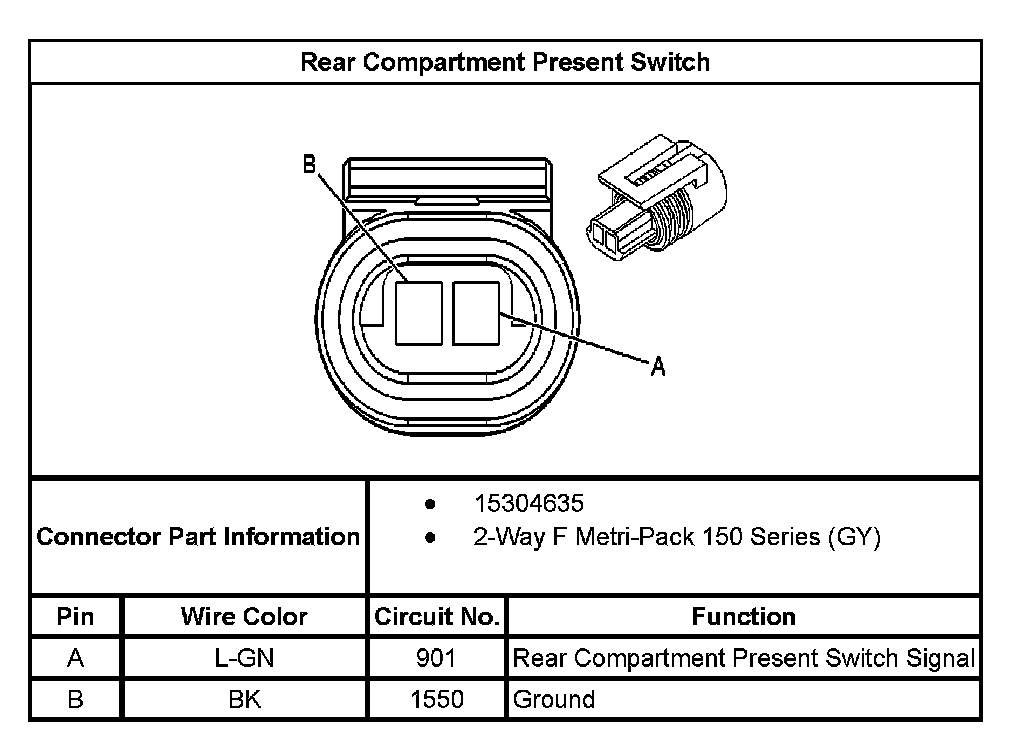

Rear Compartment Present Switch:
