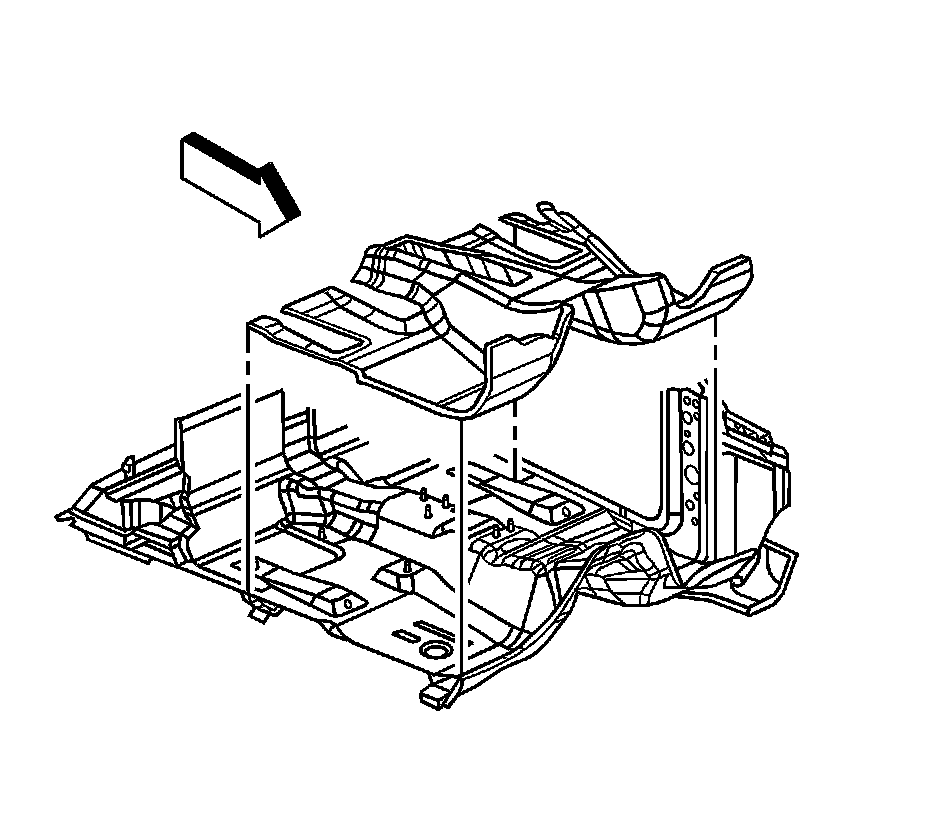

Carpet Replacement - Front

Carpet Replacement - Front

Removal Procedure

1. Remove the seats. Refer to Seat Replacement (Seat Replacement) in Seats.
2. Remove the console. Refer to Console Replacement (Service and Repair) in Instrument Panel, Gages and Console.
3. Remove the door sill plate. Refer to Door Sill Plate Replacement (Door Sill Plate Replacement) .
4. Remove the hinge pillar trim. Refer to Trim Replacement - Hinge Pillar (Trim Replacement - Hinge Pillar) .




5. Remove the front carpet from the vehicle.



Installation Procedure





1. Install the front carpet into the vehicle.
2. Install the hinge pillar trim. Refer to Trim Replacement - Hinge Pillar (Trim Replacement - Hinge Pillar) .
3. Install the door sill plate. Refer to Door Sill Plate Replacement (Door Sill Plate Replacement) .
4. Install the console. Refer to Console Replacement (Service and Repair) in Instrument Panel, Gages and Console.
5. Install the seats. Refer to Seat Replacement (Seat Replacement) in Seats.
