Emblem Replacement - Grille

Emblem Replacement - Grille

Removal Procedure

1. Open the hood.




2. Remove the grille applique molding. Refer to Grille Applique Molding Replacement - Upper (Molding Assembly) (Grille Applique Molding Replacement - Upper)Grille Applique Molding Replacement - Upper (Bow Tie) (Grille Applique Molding Replacement - Upper (Bow Tie)) .

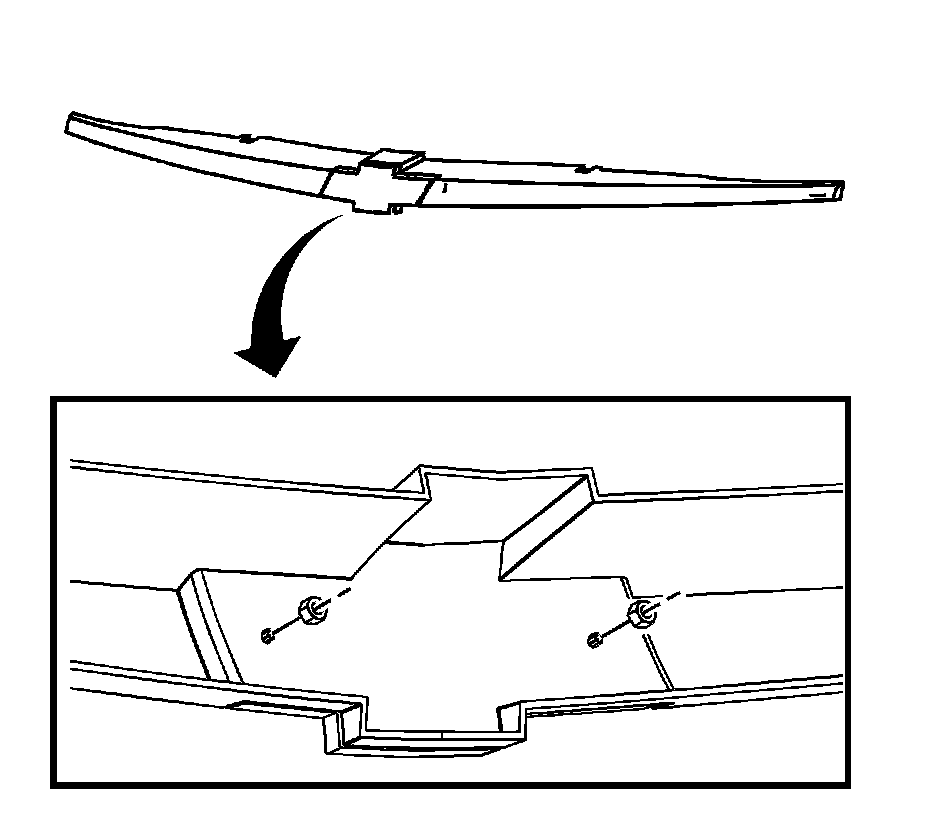

3. Remove the emblem fasteners.

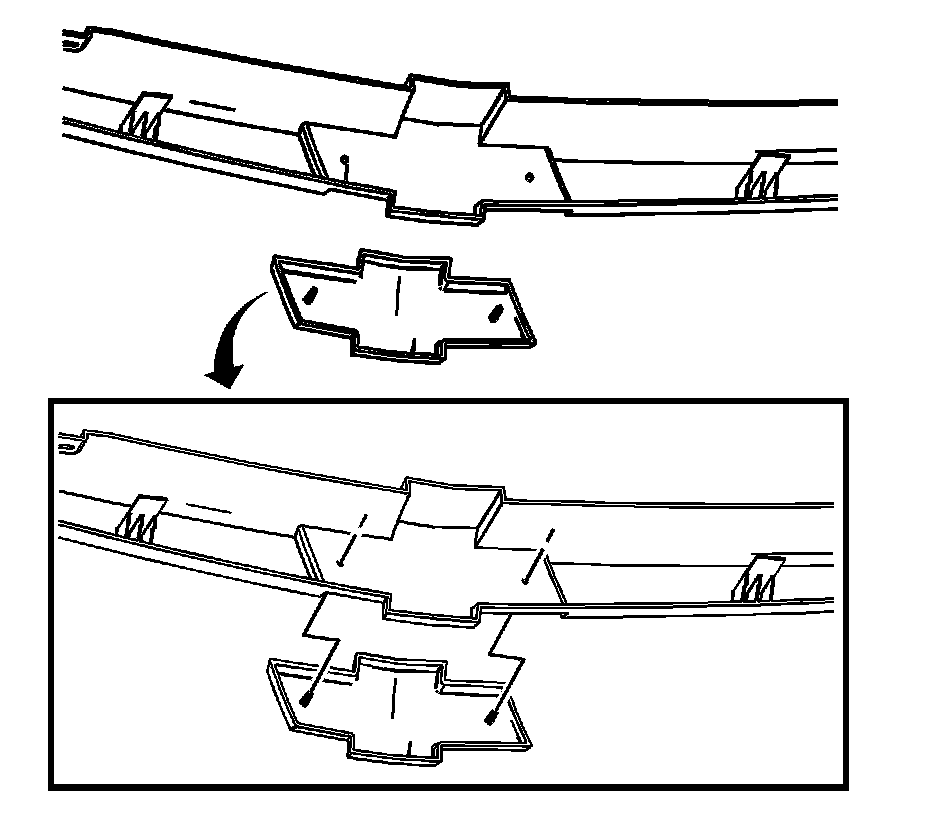

4. Remove the emblem from the grille applique.



Installation Procedure





1. Install the emblem to the grille applique.





Notice: Refer to Fastener Notice in Cautions and Notices.

2. Install the emblem fasteners.

Tighten the fasteners to 2.5 N.m (22 lb in).





3. Install the grille applique molding. Refer to Grille Applique Molding Replacement - Upper (Molding Assembly) (Grille Applique Molding Replacement - Upper)Grille Applique Molding Replacement - Upper (Bow Tie) (Grille Applique Molding Replacement - Upper (Bow Tie)) .
4. Close the hood.
