Fascia Grille Replacement

Fascia Grille Replacement

Removal Procedure

1. Open the hood.
2. Remove the grille applique molding. Refer to Grille Applique Molding Replacement - Upper (Molding Assembly) (Grille Applique Molding Replacement - Upper)Grille Applique Molding Replacement - Upper (Bow Tie) (Grille Applique Molding Replacement - Upper (Bow Tie)) in Exterior Trim.
3. Remove the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .
4. Remove the front fascia wiring harness.

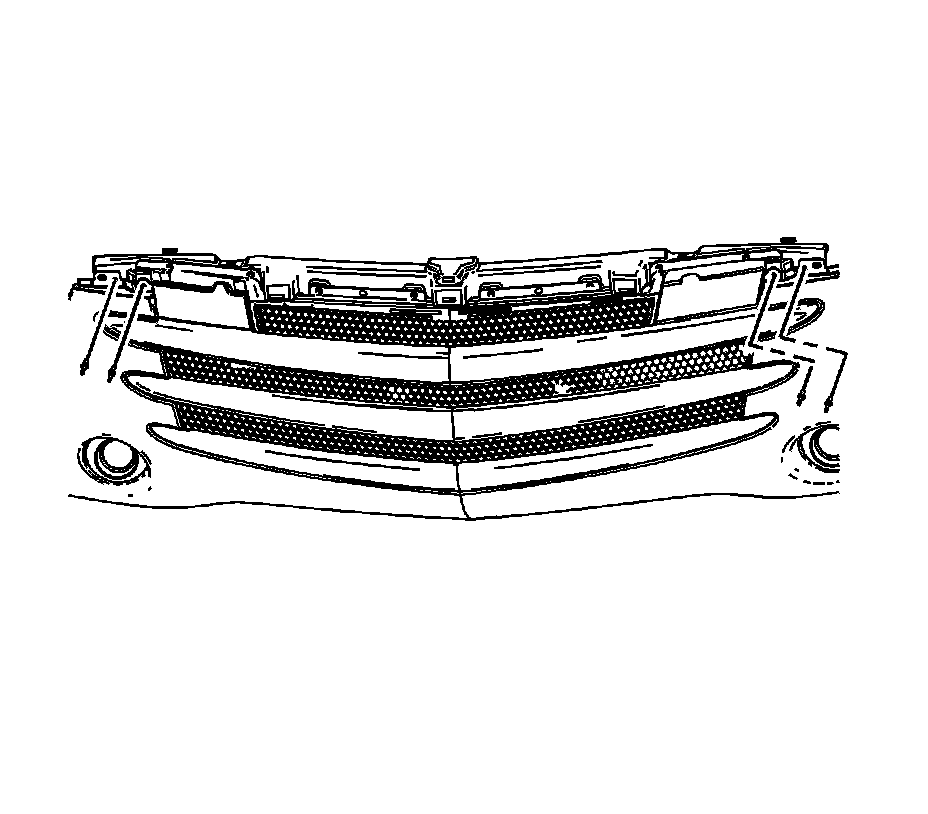

5. Remove the rivets from the fascia grille.

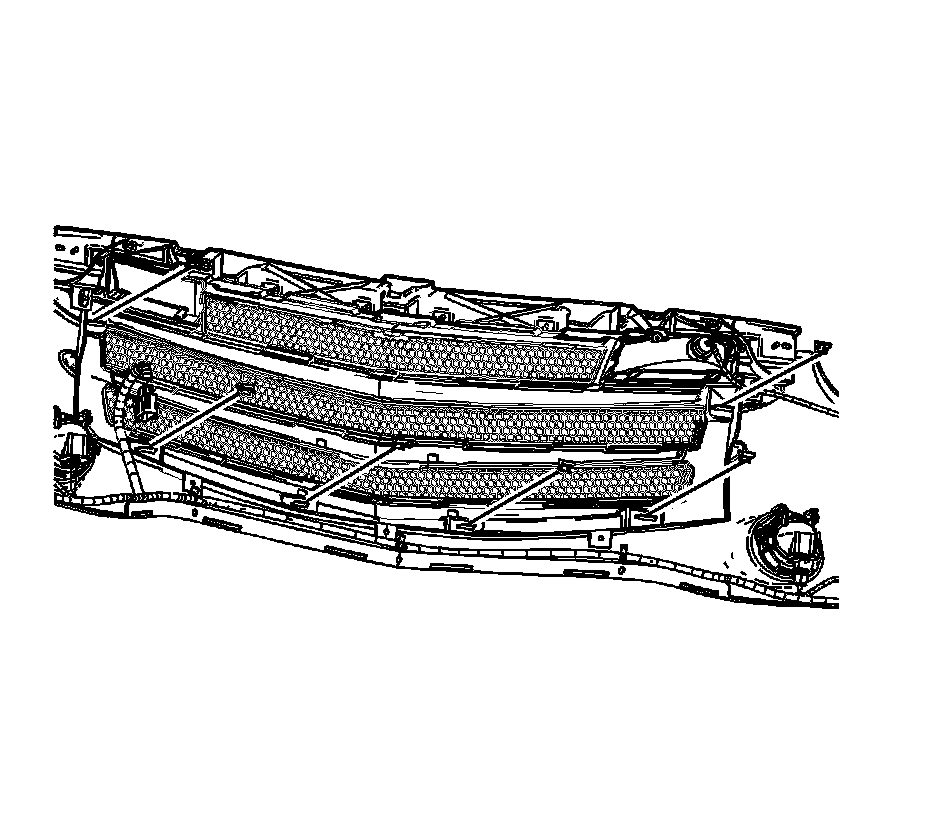

6. Remove the fascia grille retaining clips from the front bumper fascia.

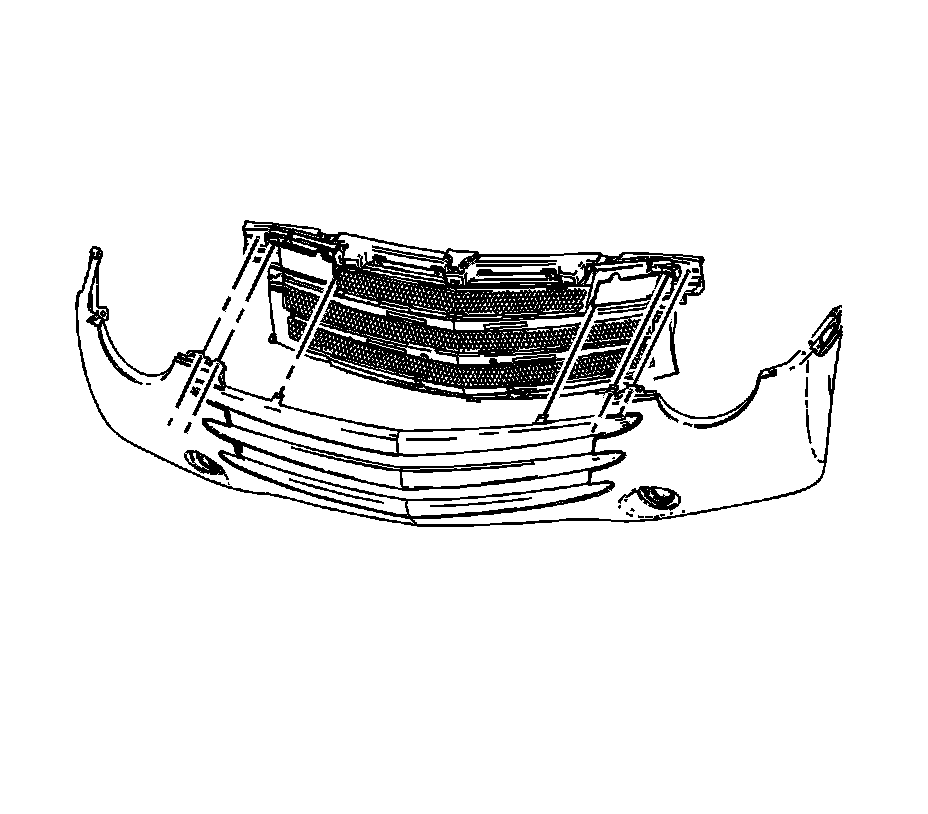

7. Remove the fascia grille support from the front bumper fascia.



Installation Procedure





1. Install the fascia grille support to the front bumper fascia.




2. Install the fascia grille retaining clips.




3. Install the rivets in the fascia.
4. Install the front fascia wiring harness.
5. Install the front bumper fascia. Refer to Fascia Replacement - Front Bumper (Fascia Replacement - Front Bumper) .
6. Install the grille applique molding. Refer to Grille Applique Molding Replacement - Upper (Molding Assembly) (Grille Applique Molding Replacement - Upper)Grille Applique Molding Replacement - Upper (Bow Tie) (Grille Applique Molding Replacement - Upper (Bow Tie)) in Exterior Trim.
7. Close the hood.
