Speaker Replacement - Front Lower

SPEAKER REPLACEMENT - FRONT LOWER

REMOVAL PROCEDURE
1. Remove the door trim panel.

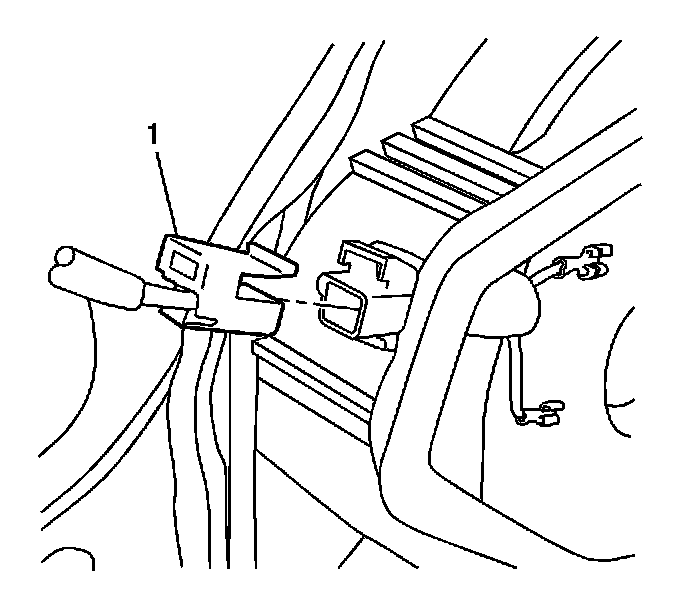

2. Remove the connector position assurance (CPA) (1) for the connector.

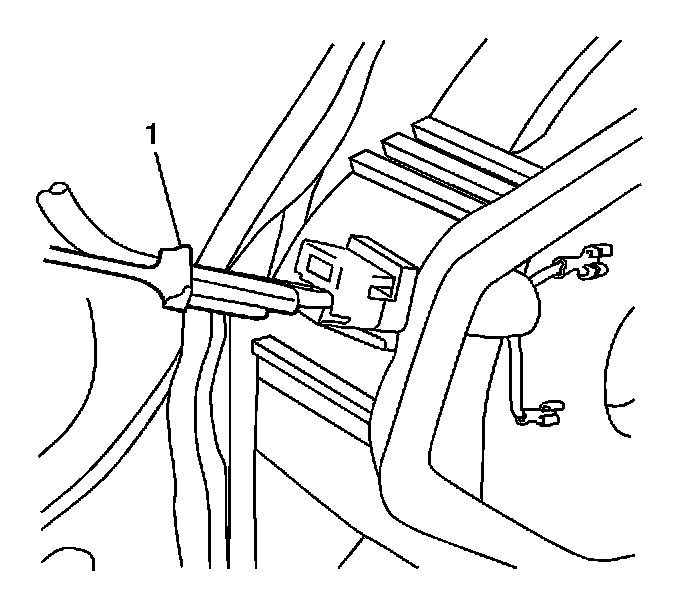

3. Disconnect the electrical connector (1).

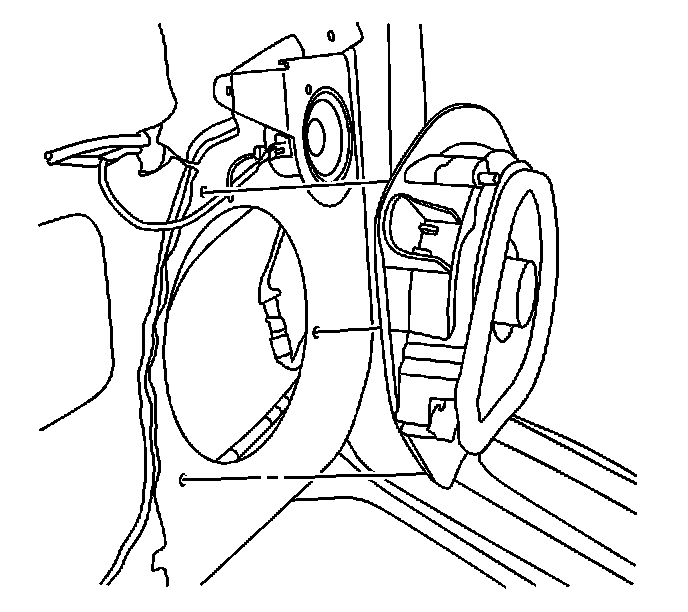

4. Remove the fasteners securing the speaker to the door.

INSTALLATION PROCEDURE




1. Position the speaker onto the door.
2. Install the fasteners securing the speaker to the door.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten the fasteners to 2 N.m (18 lb in).




3. Connect the electrical connector (1).




4. Install the CPA (1) for the connector.
5. Install the door trim panel.
