EVAP Hoses/Pipes Replacement - Engine

REMOVAL PROCEDURE




1. Disconnect the evaporative emission (EVAP) pipe from the EVAP canister purge valve.

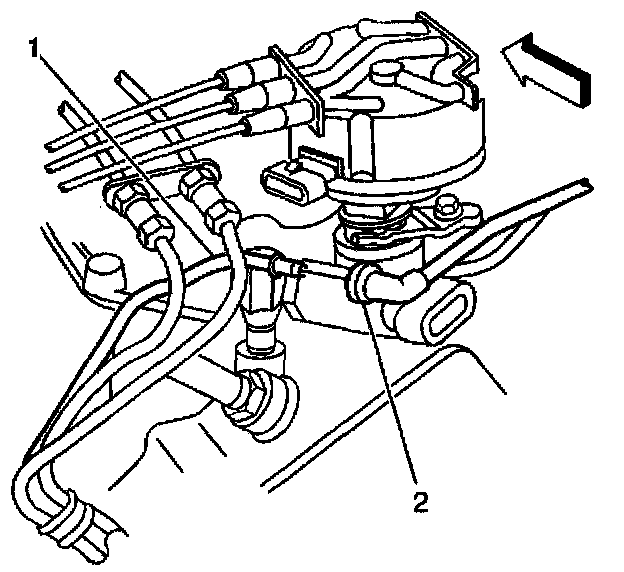

2. Disconnect the EVAP (2) pipe from the EVAP front chassis pipe (1).

INSTALLATION PROCEDURE




1. Connect the EVAP pipe (2) to the EVAP front chassis pipe (1).




2. Connect the EVAP pipe to the EVAP canister purge valve.
