Center Floor

AIR OUTLET REPLACEMENT - CENTER FLOOR

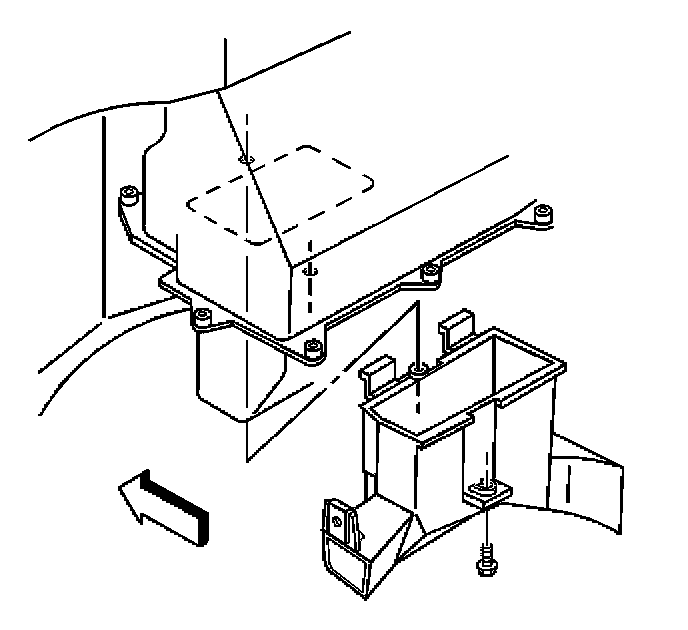

REMOVAL PROCEDURE




1. Remove the heater/vent module.
2. Remove the floor air outlet screws.
3. Remove the floor air outlet from the heater/vent module.

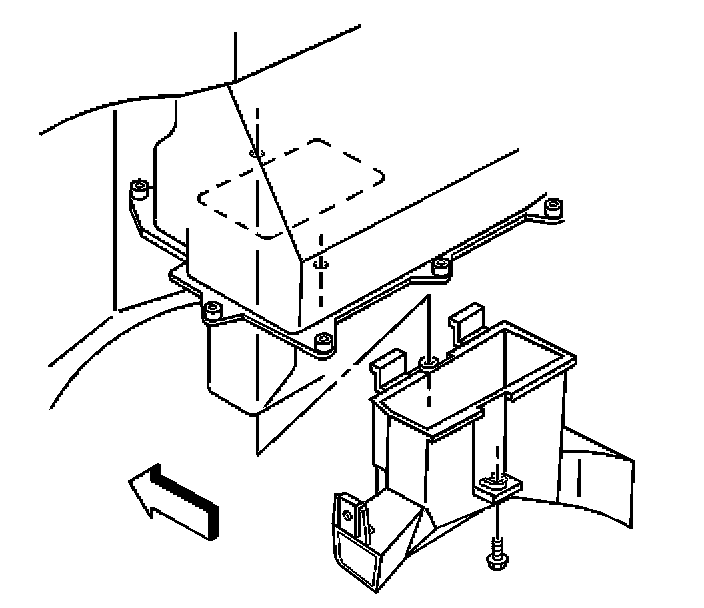

INSTALLATION PROCEDURE




1. Install the floor air outlet. Ensure that the outlet locks into place.
2. Install the floor air outlet screws.

NOTE: Refer to Fastener Notice in Service Precautions. Vehicle Damage Warnings

Tighten
Tighten the screws to 1.9 N.m (17 lb in).

3. Install the heater/vent module.
