Chevy Truck
>>
2003
>>
S10/T10 P/U 2WD V6-4.3L VIN X
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Radio, Stereo, and Compact Disc
>>
Radio/Audio System Schematics
Radio/Audio System Schematics

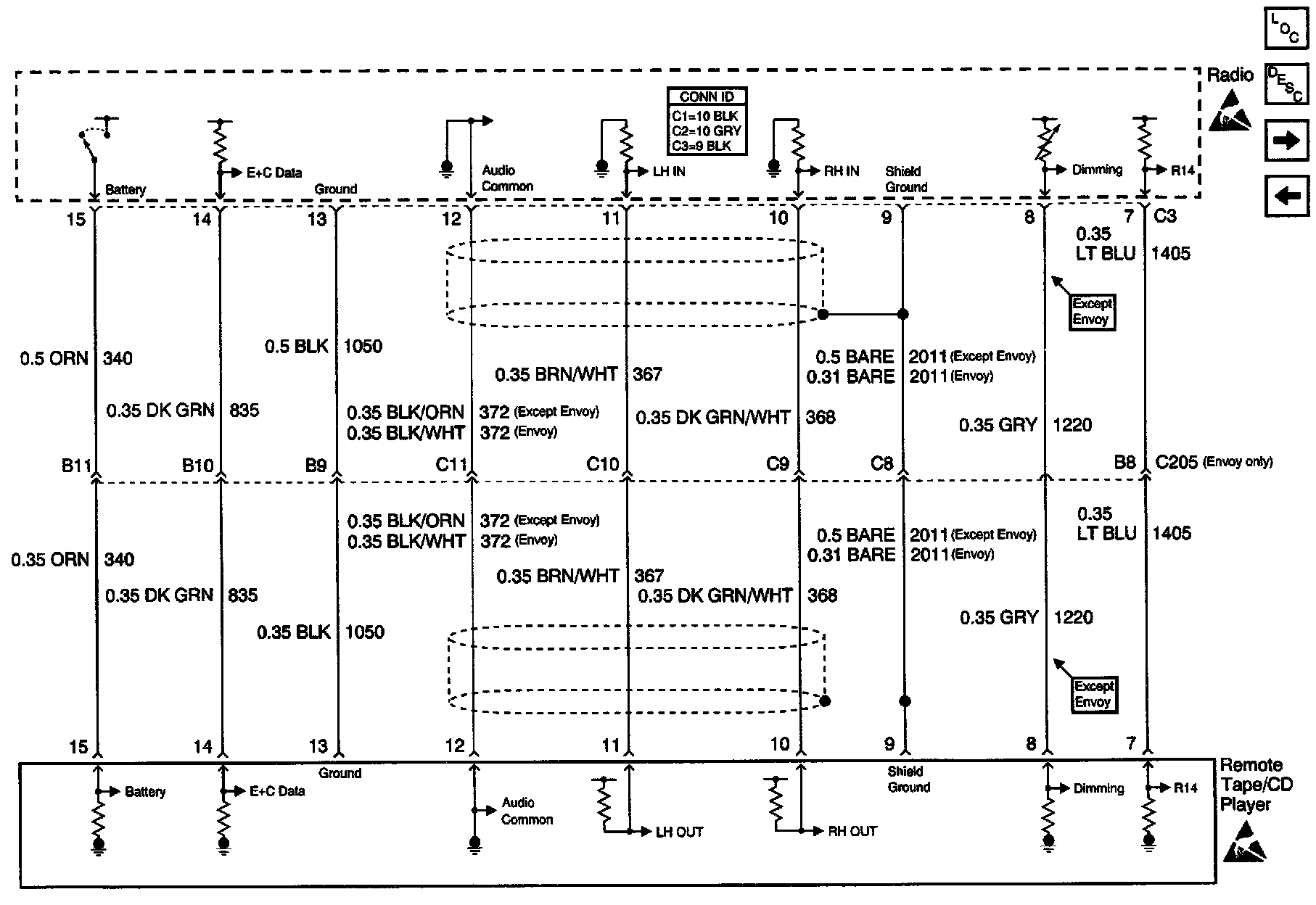

Radio/Audio System Schematics: Remote Tape/CD Player (Chevy/GMC):
