Clutch Pedal Assembly: Service and Repair

Clutch Pedal Replacement

Removal Procedure

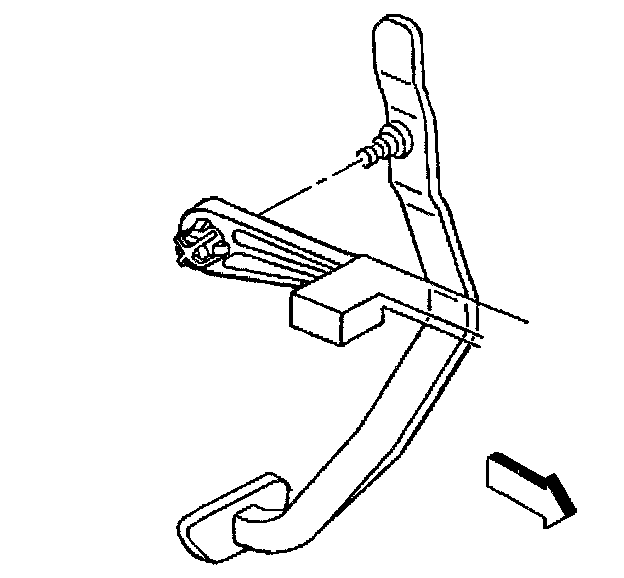

1. Remove the master cylinder rod from the clutch pedal.

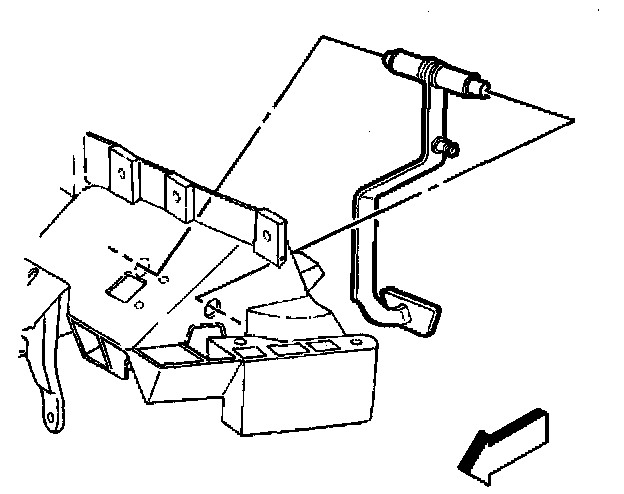

2. Remove the clutch pedal from the support by depressing the side tabs.

Installation Procedure





1. Position the clutch pedal into the support.

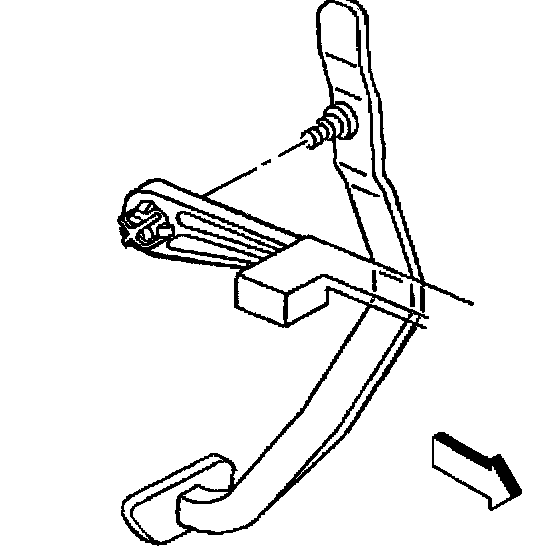

2. Secure the master cylinder rod to the clutch pedal.
