Power Steering Pump Pulley Replacement

Power Steering Pulley Replacement

^ Tools Required
- J 25034-C Power Steering Pump Pulley Remover
- J 25033-C Power Steering Pump Pulley Installer

Removal Procedure





1. Remove the fan clutch.
2. Remove the drive belt.

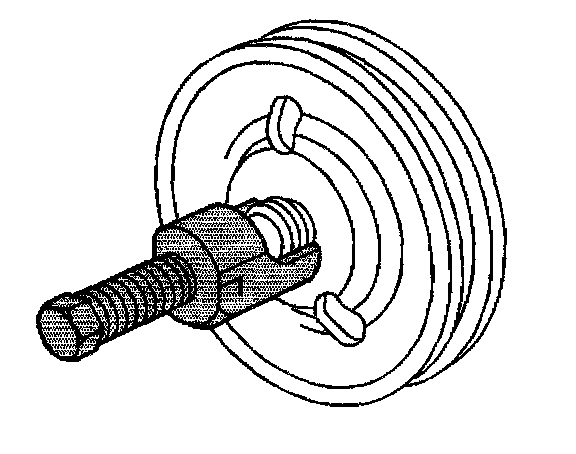

3. Remove the power steering pump pulley using J 25034-C.

Installation Procedure





1. Place the power steering pump pulley on the end of the power steering pump shaft.

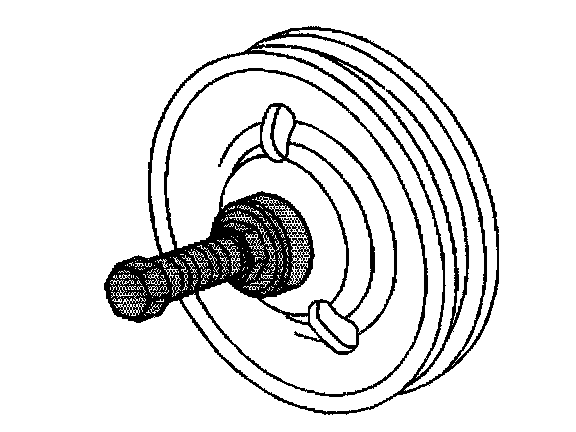

2. Install the power steering pump pulley using J 25033-C.

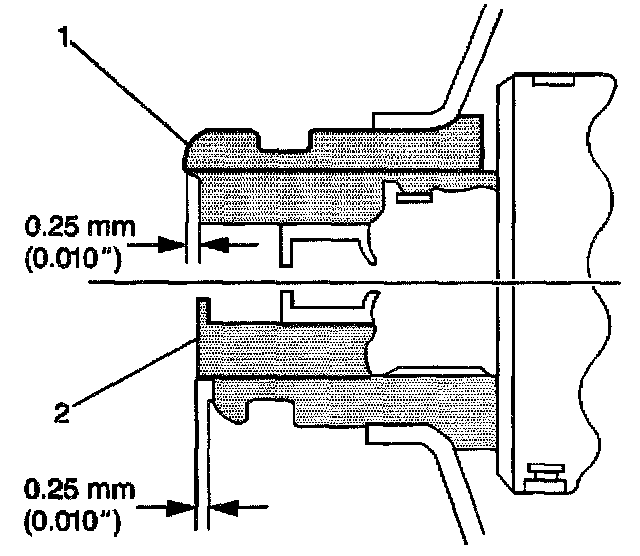

3. Ensure that the power steering pump pulley (1) is flush against the power steering pump shaft (2), with an allowable variance of 0.25 mm (0.010 inch).
4. Install the drive belt.
5. Install the fan clutch.
