Seat Belt Buckle Replacement - Front

REMOVAL PROCEDURE

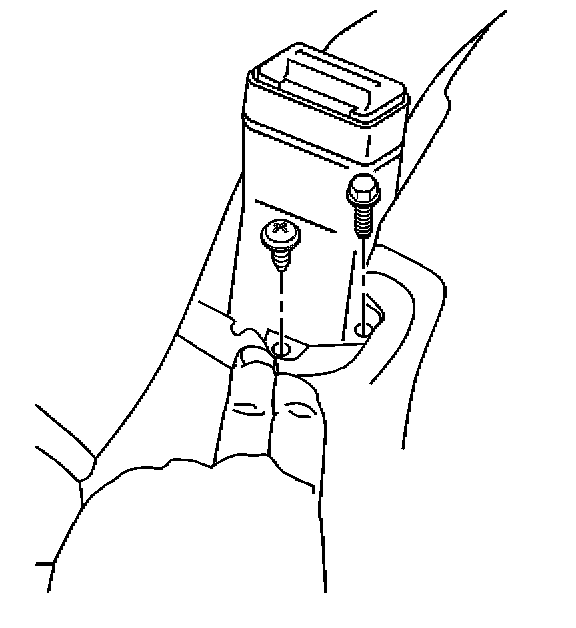

1. Disconnect the driver-side seat belt buckle electrical connector.

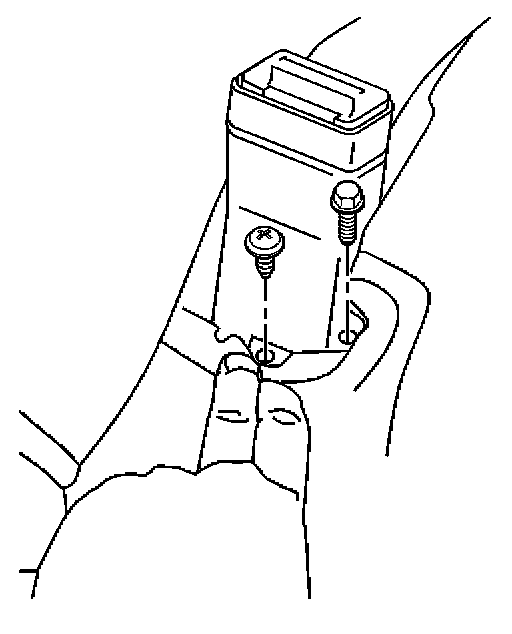

2. Remove the bolt that retains the driver-side seat belt buckle or buckles to the seat.
3. Remove the driver-side seat belt buckle or buckles from the seat.

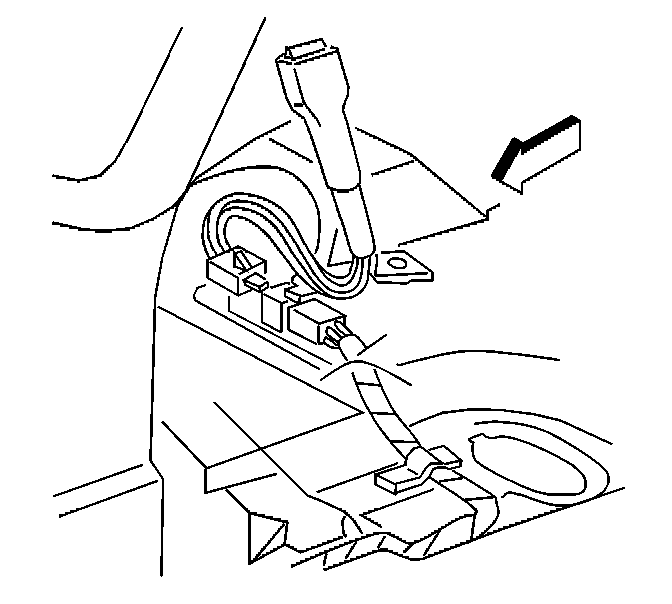

4. Remove the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the seat.
5. Remove the passenger-side seat belt buckle or buckle and belt assembly from the seat.

INSTALLATION PROCEDURE




1. Install the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.

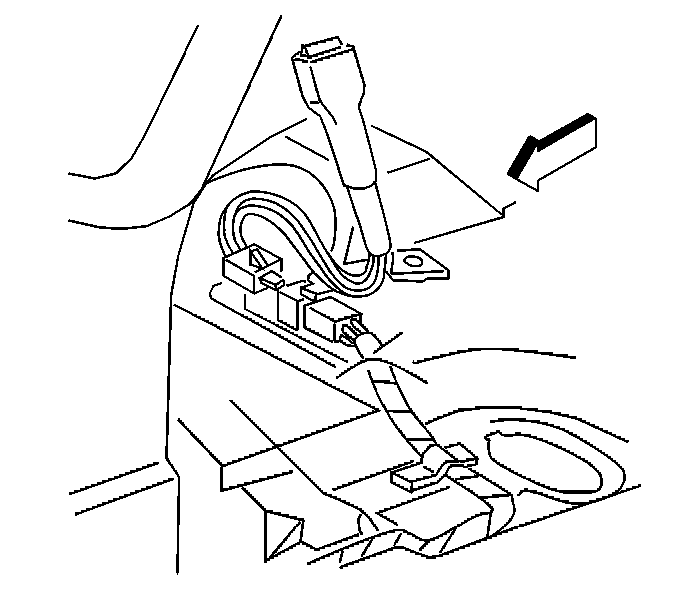

2. Install the bolt that retains the passenger-side seat belt buckle or buckle and belt assembly to the vehicle.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the seat belt buckle or buckle and belt assembly bolt to 70 N.m (52 lb ft).




3. Install the driver-side seat belt buckle or buckles to the seat.

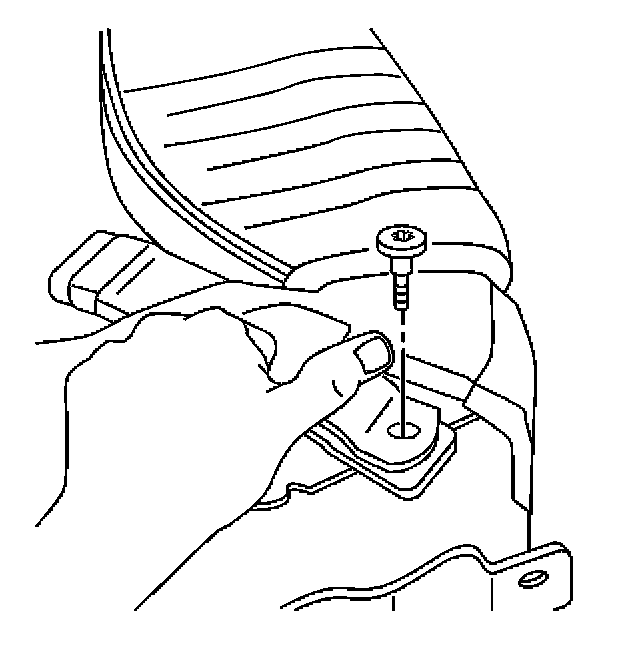

4. Install the bolt that retains the driver-side seat belt buckle or buckles to the seat.

Tighten
Tighten the seat belt buckle or buckles bolt to 70 N.m (52 lb ft).




5. Connect the driver-side seat belt buckle electrical connector.
