Accelerator Pedal: Service and Repair

ACCELERATOR CONTROLS PEDAL REPLACEMENT

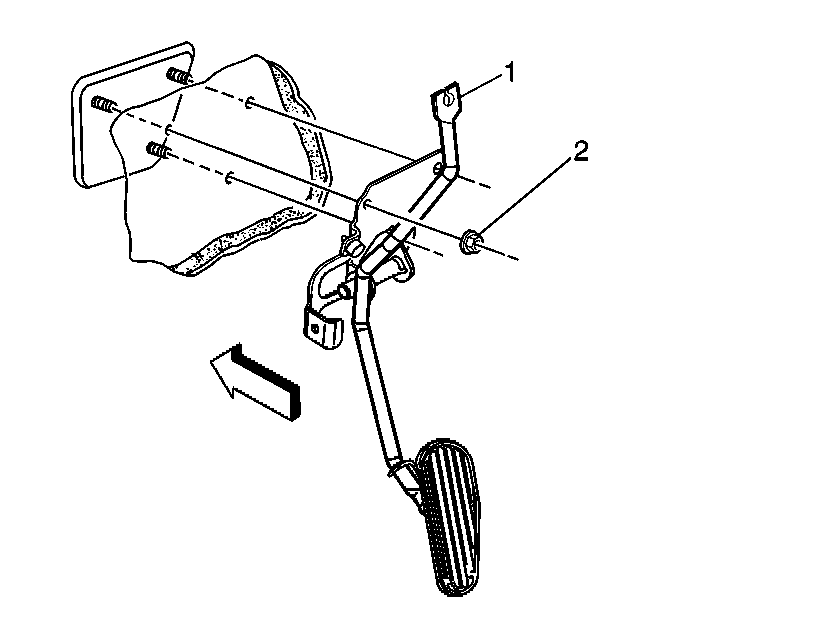

REMOVAL PROCEDURE




1. Release the cable retainer from the accelerator pedal lever (1).
2. Remove the accelerator pedal assembly attaching nuts (2).
3. Remove the pedal assembly (1).

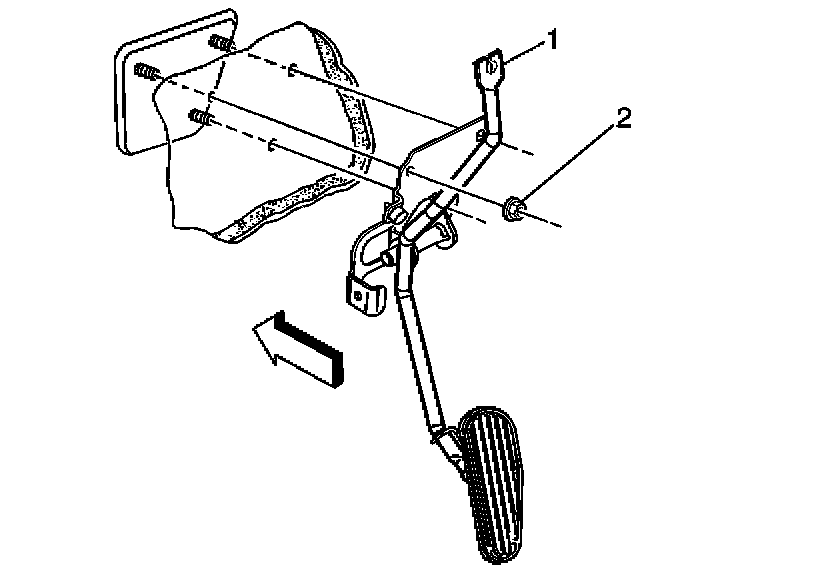

INSTALLATION PROCEDURE




1. Install the pedal assembly (1).
2. Install the attaching nuts (2) to the cowl.

NOTE: Refer to Fastener Notice in Service Precautions.

Tighten
Tighten the nuts to 9 N.m (80 lb in).

3. Install the accelerator controls cable to the pedal assembly.
