Vacuum Reservoir HVAC: Service and Repair

VACUUM TANK REPLACEMENT







REMOVAL PROCEDURE

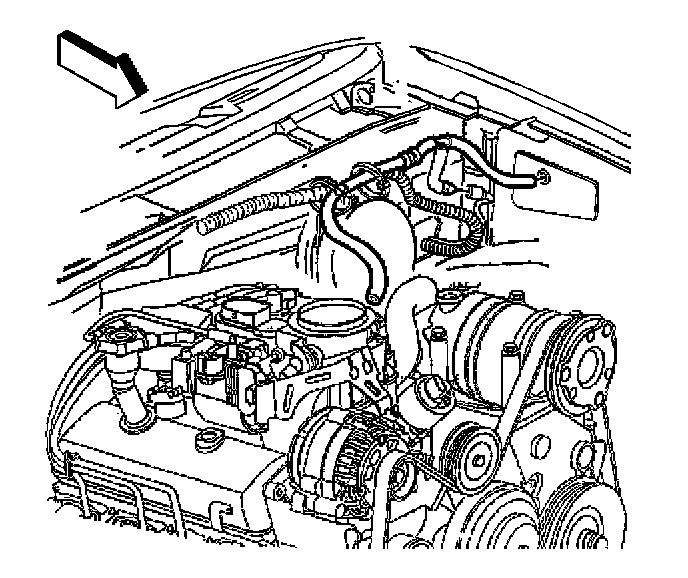

1. Remove the brake pressure modulator valve.

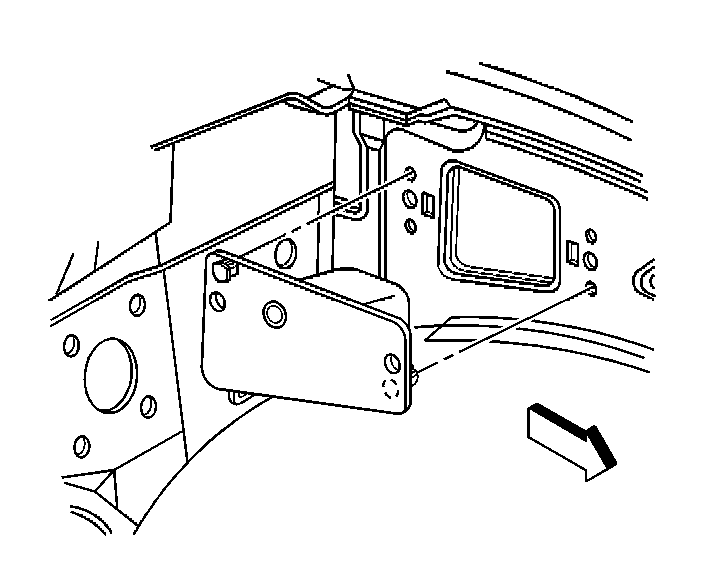

3. Using a flat-bladed tool, depress the retaining tabs in order to remove the vacuum tank.







INSTALLATION PROCEDURE

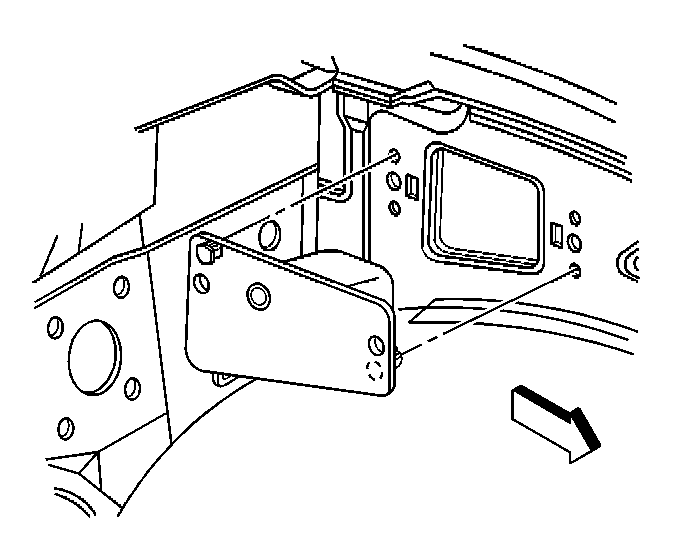

1. Install the vacuum tank. Ensure that the retaining tabs lock into place.

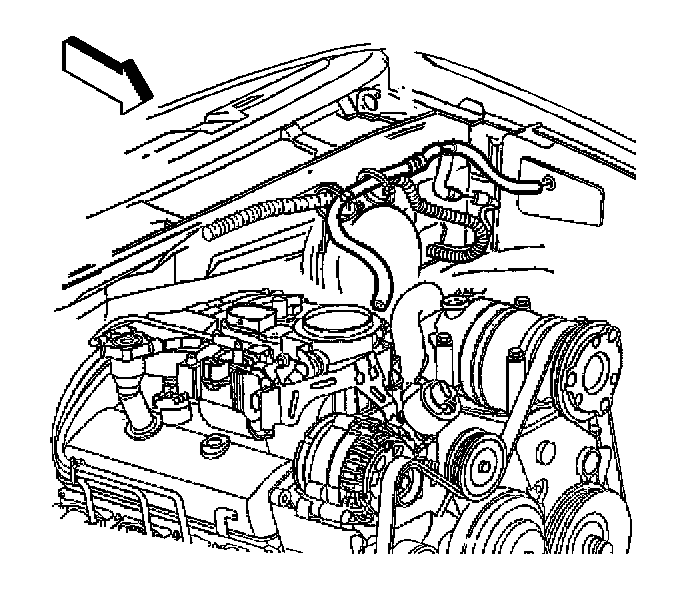

2. Install the vacuum hose(s).
3. Install the brake pressure modulator valve.
