Home
>>
Chevy Truck
>>
2003
>>
S10/T10 P/U 2WD L4-2.2L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Sunroof / Moonroof
Sunroof / Moonroof

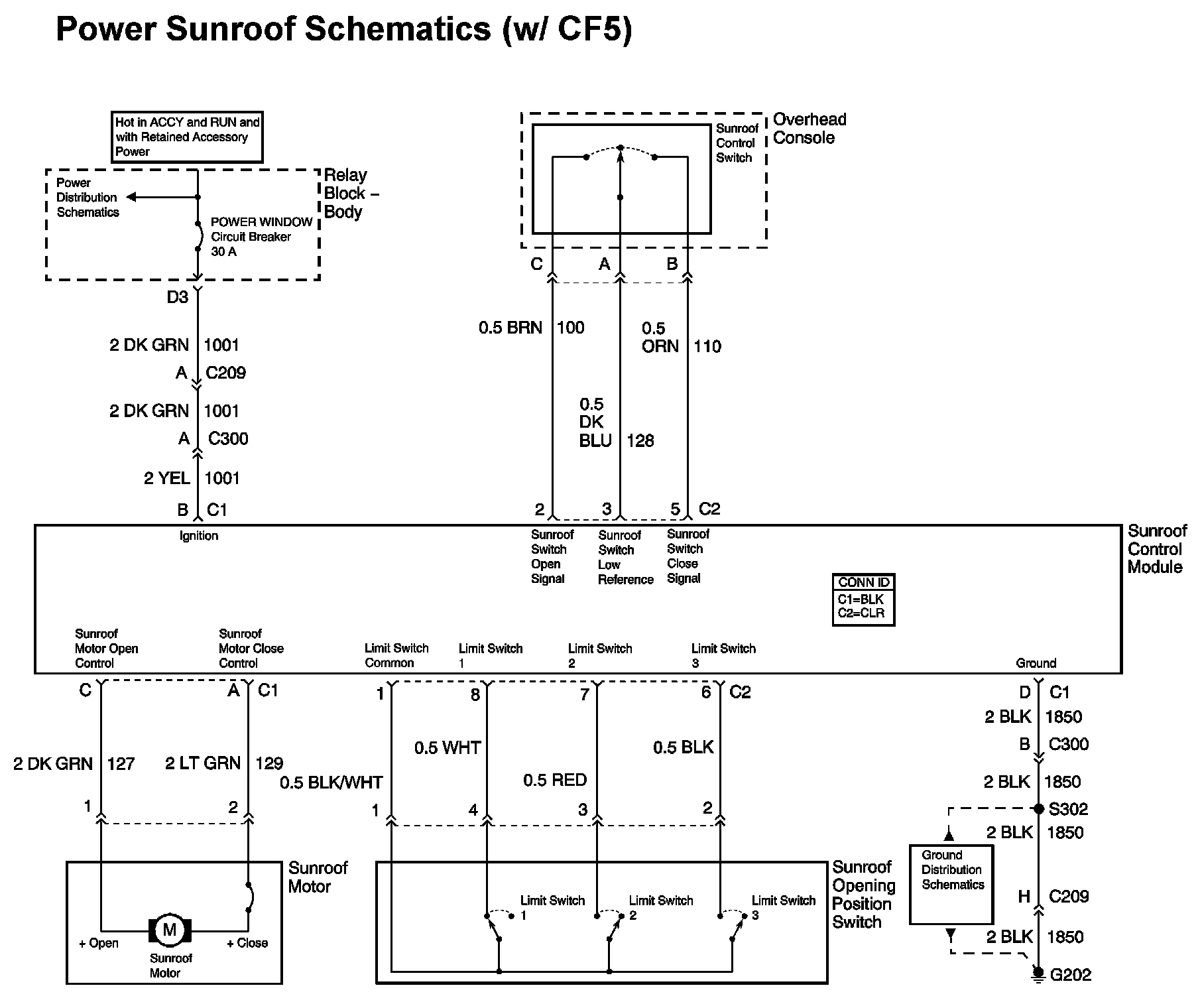

Power Sunroof Diagram 1:

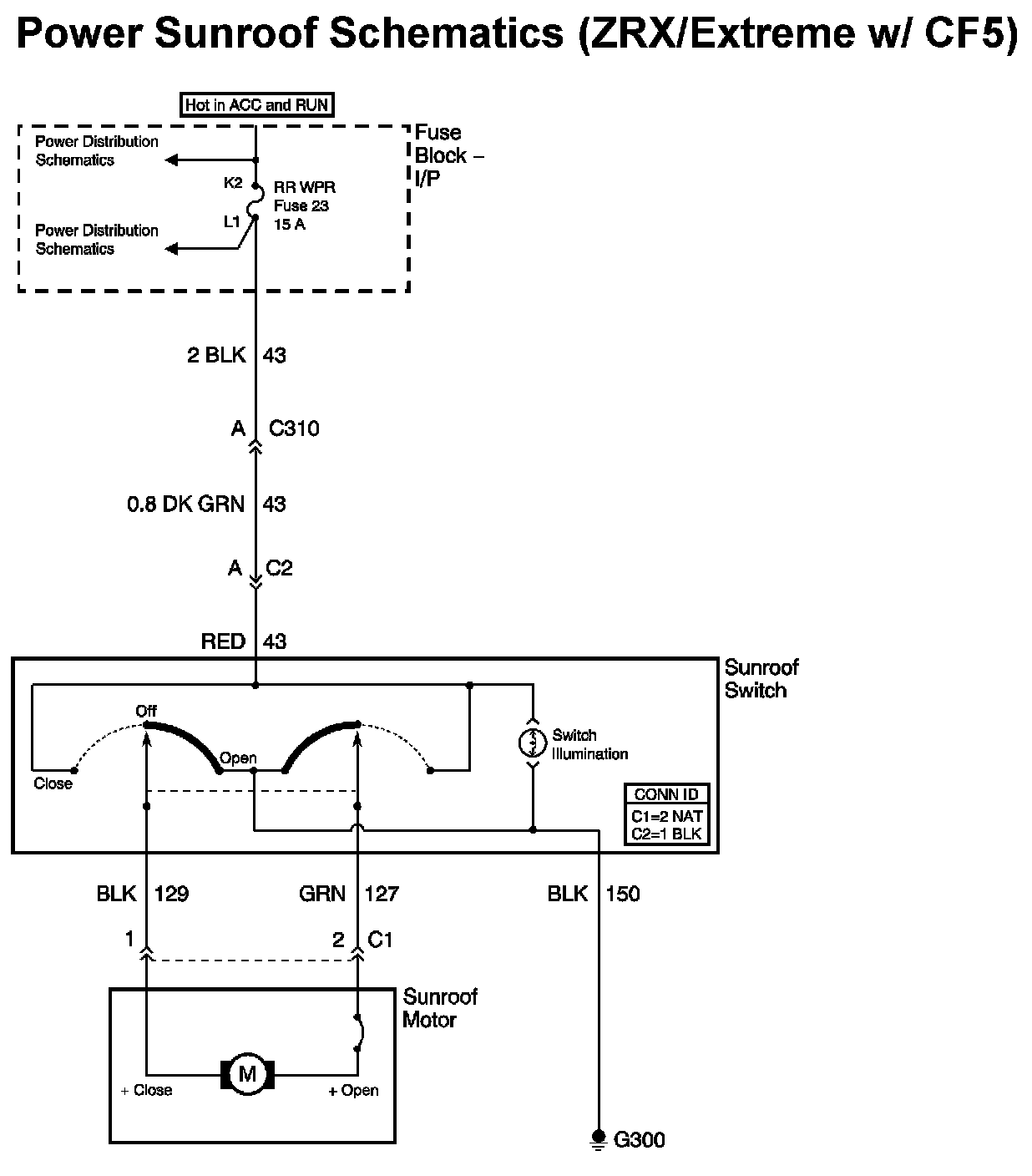

Power Sunroof Diagram 2:
