Chevy Truck
>>
2003
>>
S10/T10 P/U 2WD L4-2.2L VIN H
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor, A/T
Transmission Speed Sensor, A/T

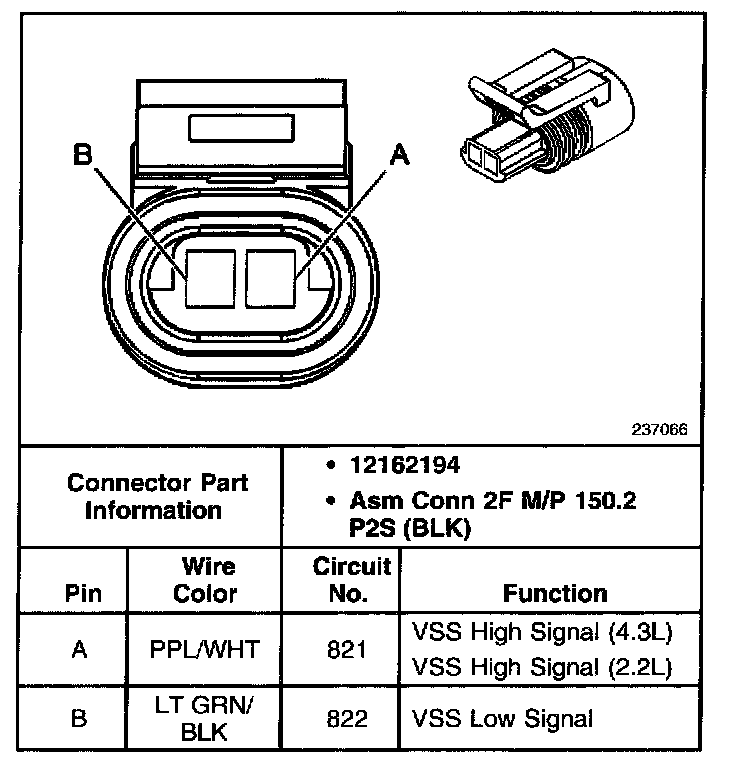

Vehicle Speed Sensor Assembly Connector, Wiring Harness Side:
