Parking Brake Lever: Service and Repair

Park Brake Release Handle Assembly Replacement

Removal Procedure
1. Release the park brake, if applied.

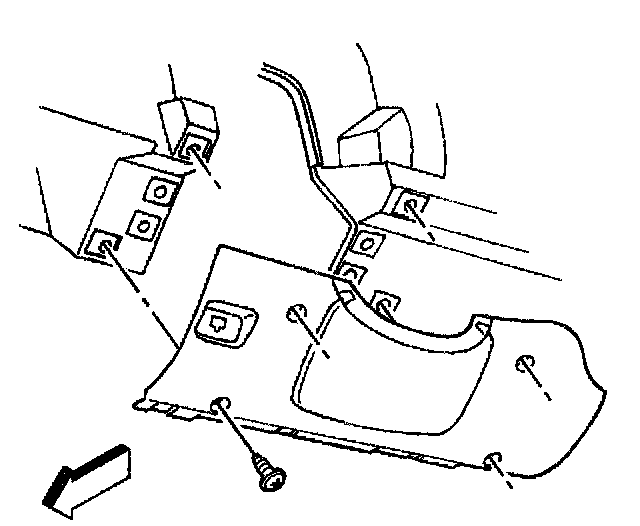

2. Remove the knee bolster trim panel.

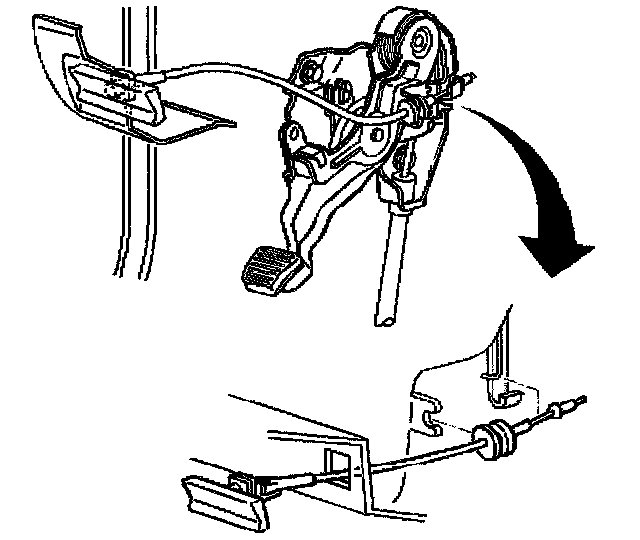

3. Remove the brake release handle from the park brake pedal.

Installation Procedure

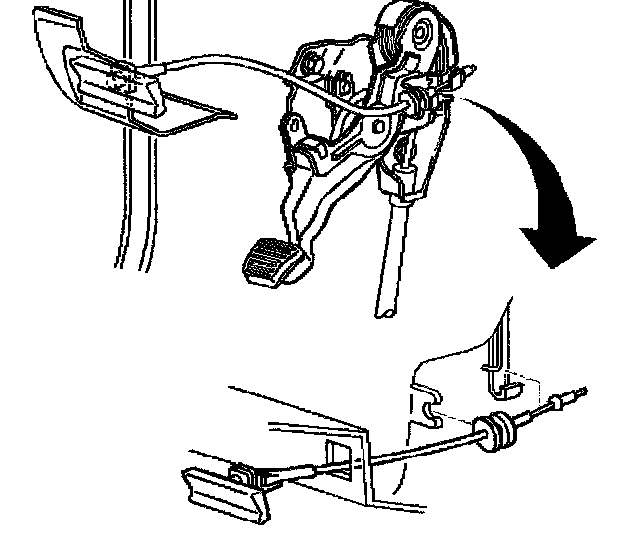

1. Install the brake release handle.

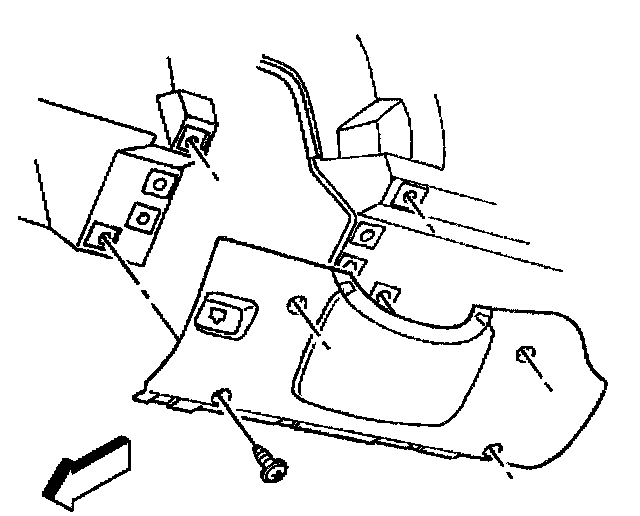

2. Install the knee bolster trim panel.
