Park Brake Cable Mounting Bracket Replacement

Park Brake Cable Mounting Bracket Replacement

Removal Procedure
1. Release the parking brake, if applied.
2. Raise the vehicle. Refer to Vehicle Lifting.





3. Remove the park brake equalizer.

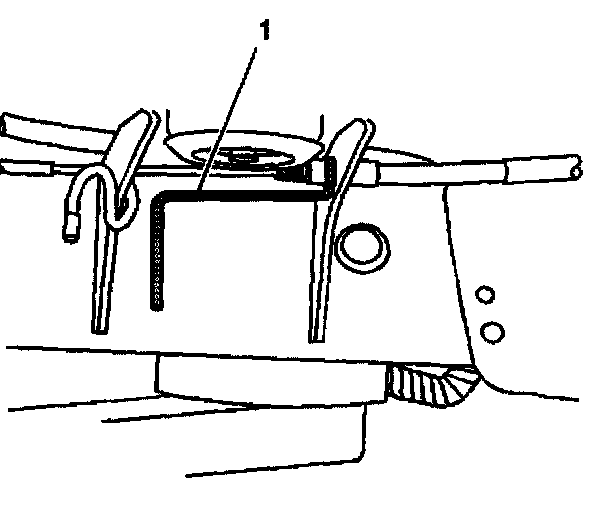

4. Using the J37043 (1), collapse the locking tabs on the park brake cable.

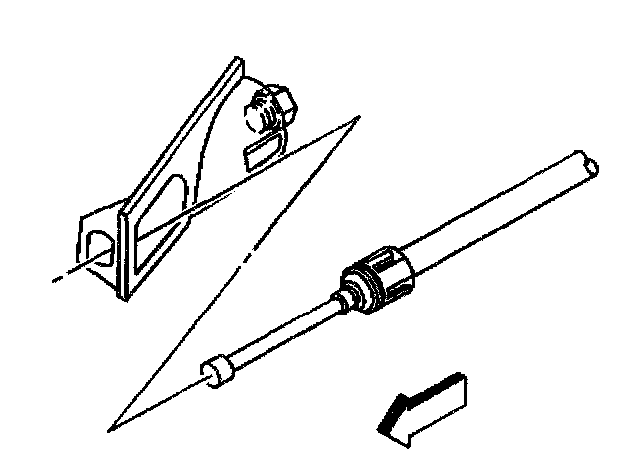

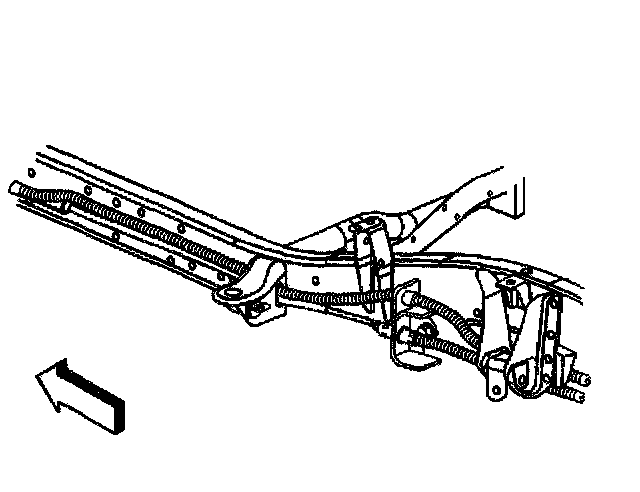

5. Remove the park brake cable from the mounting bracket.





6. Remove the cable mounting bolts for the mounting bracket.





7. Remove the park brake cable mounting bracket.

Installation Procedure





1. Install the park brake cable mounting bracket.

Notice: Refer to Fastener Notice in Service Precautions.

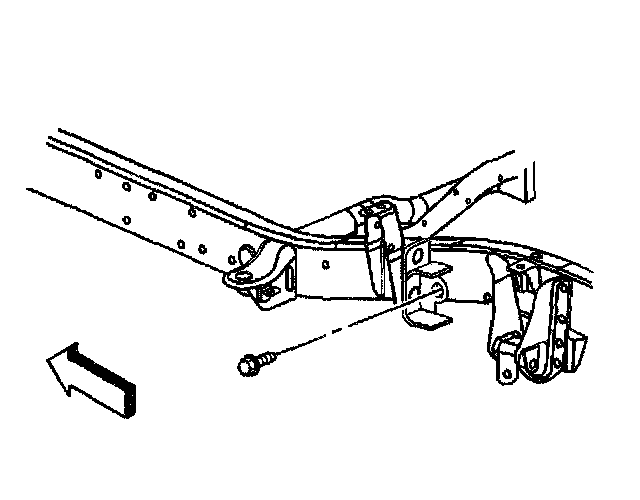

2. Install the park brake cable mounting bracket bolt.
Tighten the mounting bracket bolt to 17 Nm (12.6 ft. lbs.).

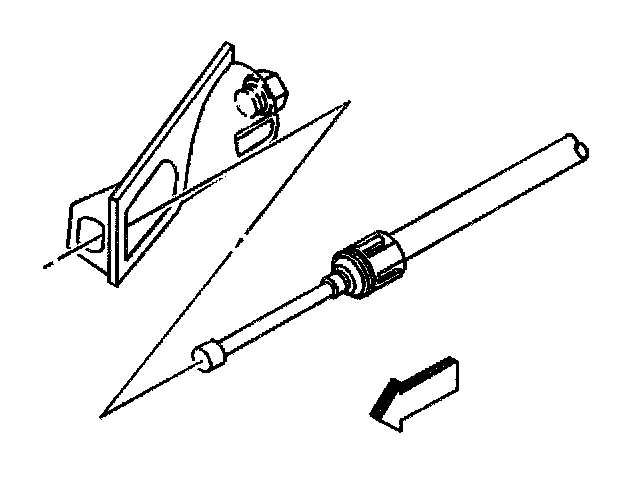

3. Install the rear cables to the mounting bracket by inserting the cable till all the retaining tabs snap into place.





4. Install the park brake equalizer.
5. Adjust the park brake.
6. Lower the vehicle. Refer to Vehicle Lifting.
