Park Brake Cable Equalizer Replacement

Park Brake Cable Equalizer Replacement

Removal Procedure

Tools Required
^ J37043 Park Brake Cable Release Tool

1. Release the park brake, if applied.
2. Raise the vehicle. Refer to Vehicle Lifting.

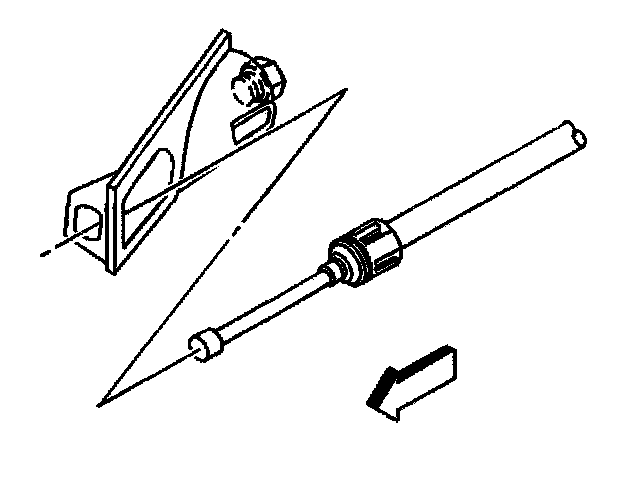

3. Remove the right rear park brake cable from the equalizer.

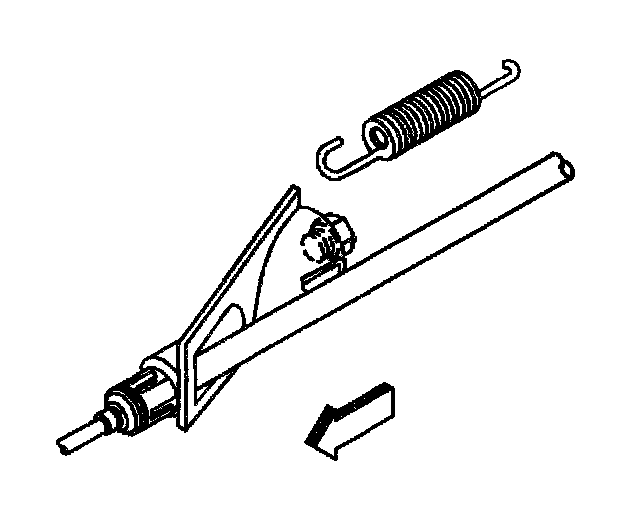

4. Remove the spring from the equalizer, if equipped.

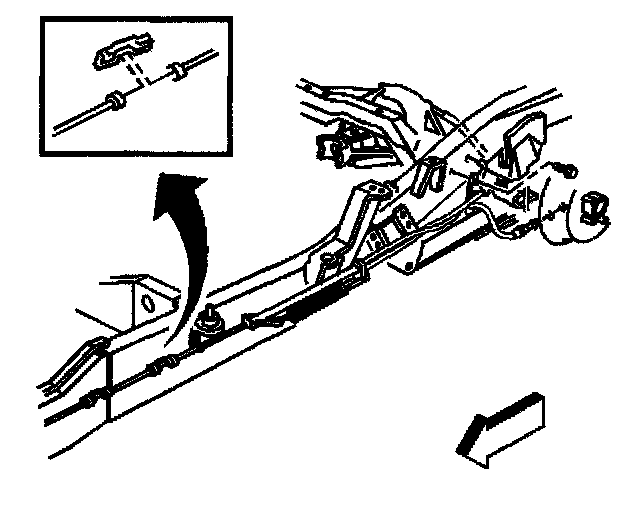

5. Remove the park brake from the connector.

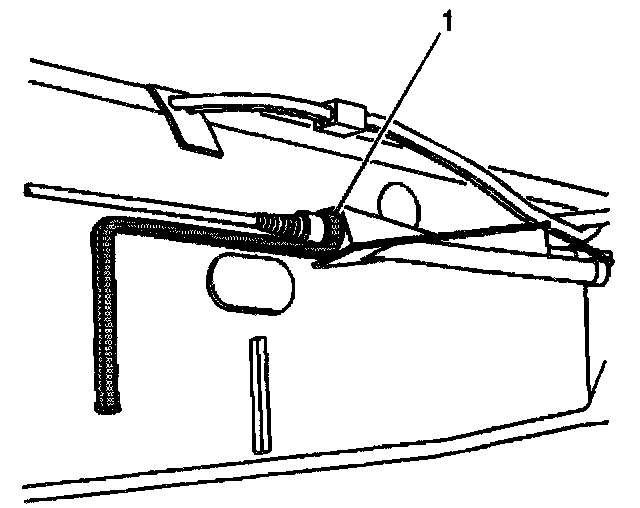

6. Using the J37043 (1), collapse the locking tabs on the park brake cable.

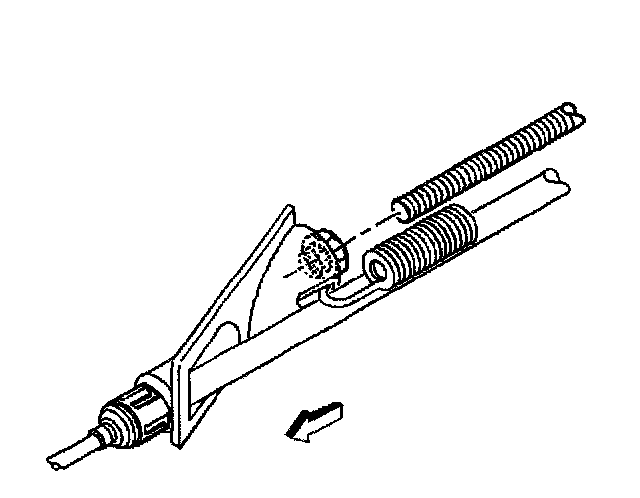

7. Remove the park brake cable from the equalizer.

Installation Procedure

Important: When installing the park brake cable in the equalizer, ensure that the locking tabs on the park brake cable are properly seated against the equalizer.

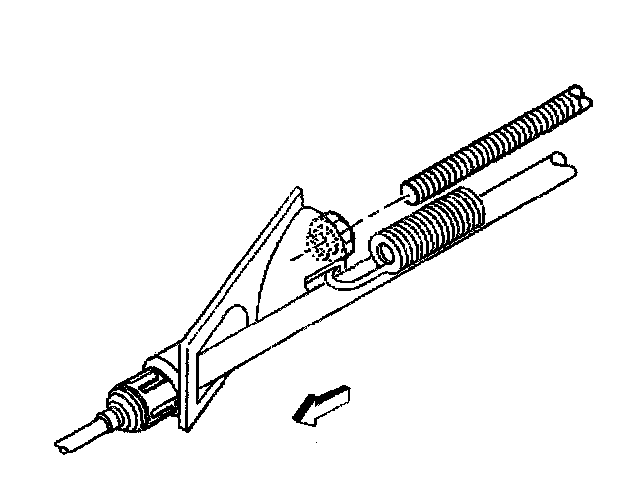

1. Install the park brake cable in the equalizer.





2. Install the park brake cable in the connector.

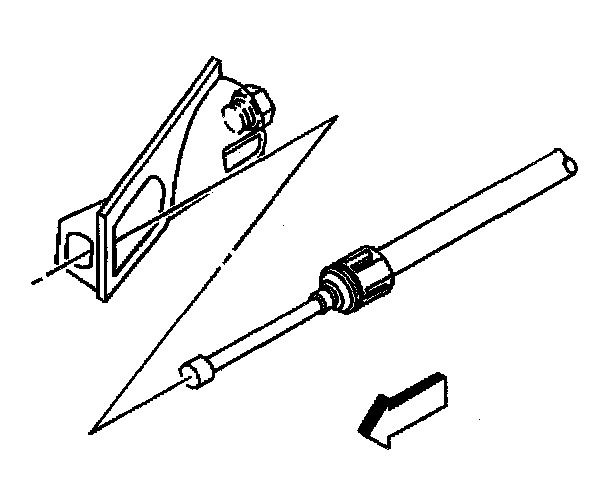

3. Install the right rear park brake cable in the equalizer.

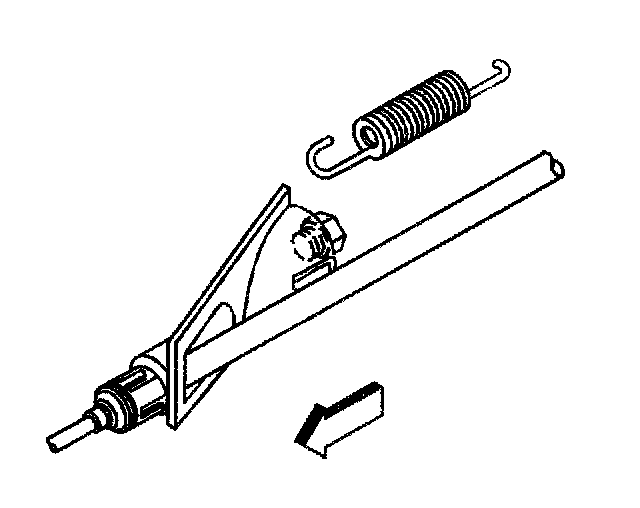

4. Install the equalizer spring.
5. Adjust the park brake.
6. Lower the vehicle. Refer to Vehicle Lifting.
