Brake Caliper Bracket Replacement - Front
Brake Caliper Bracket Replacement - FrontRemoval Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the tire and wheel assembly.

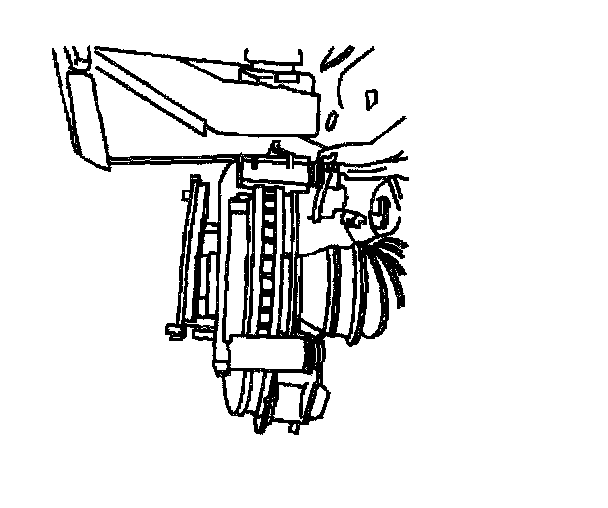

3. Remove the front brake pads, outboard shown.

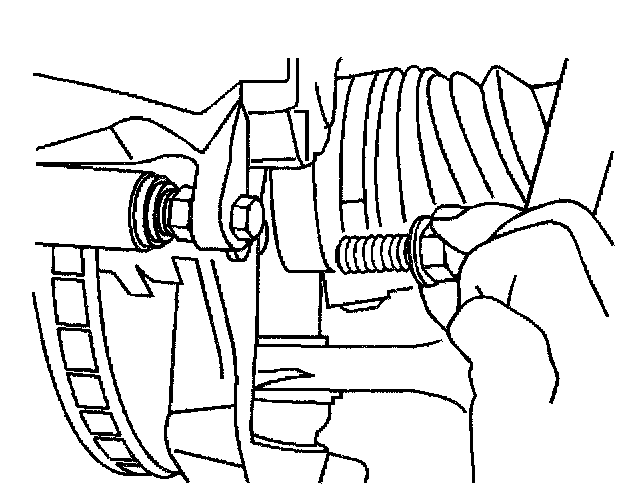

4. Remove the front brake caliper bracket mounting bolts, lower shown.

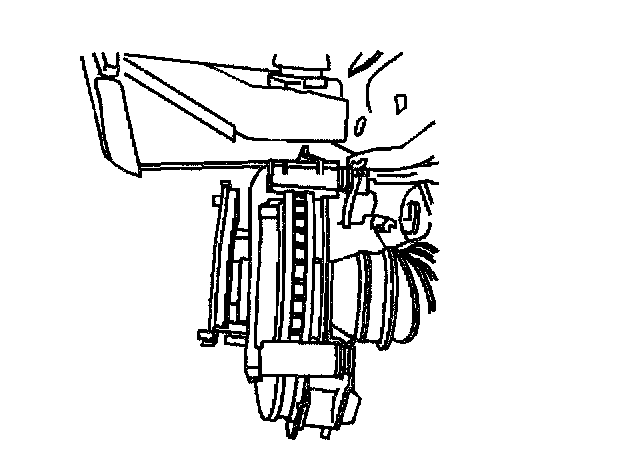

5. Remove the front brake caliper mounting bracket.
Installation Procedure

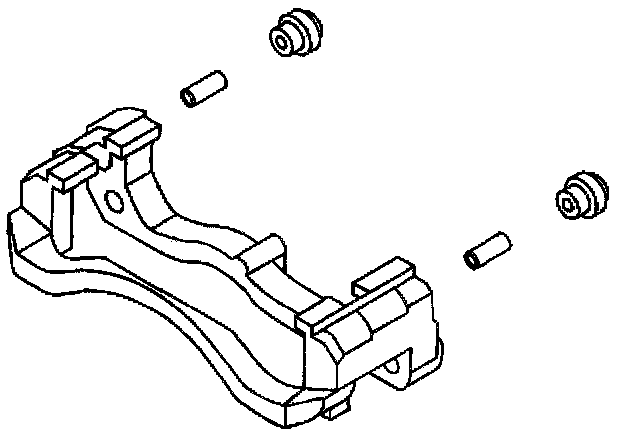

1. Install the new bushing and sleeves.
Notice: Refer to Fastener Notice in Service Precautions.

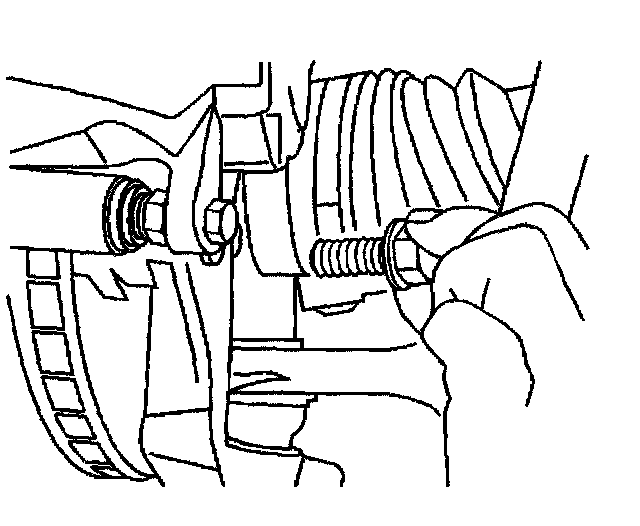

2. Install the front brake caliper bracket mounting bolts, lower shown.
Tighten the brake caliper mounting bracket bolt to 180 Nm (133 lb ft).
3. Install the brake pad assembly.
4. Install the tire and wheel assembly.
5. Lower the vehicle. Refer to Vehicle Lifting.
6. With the engine OFF, gradually apply the brake pedal to approximately 2/3 of its travel distance.
7. Slowly release the brake pedal.
8. Wait 15 seconds, then repeat steps 6 and 7 until a firm brake pedal is obtained. This will properly seat the brake caliper pistons and brake pads.
9. Fill the brake master cylinder to the proper level.
