Weatherstrip Replacement - Auxiliary

Weatherstrip Replacement - Auxiliary

Tools Required

J 38778 Door Trim Pad Clip Remover

Removal Procedure





Use the J 38778 in order to remove the door auxiliary weatherstrip from the vehicle.

Installation Procedure

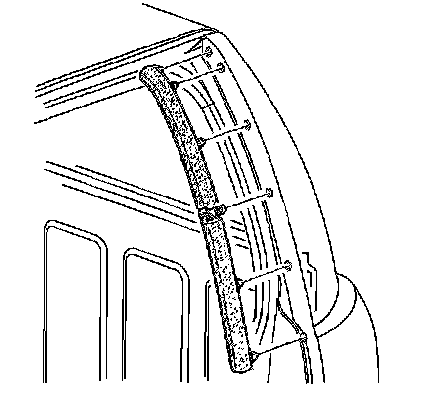

1. Install the door auxiliary weatherstrip to the vehicle.
2. Position the weatherstrip and press the weatherstrip into place. Ensure that the retaining clips lock into place.
