Sealing Strip Replacement - Door Bottom



Sealing Strip Replacement - Door Bottom

Tools Required

J 38778 Door Trim Pad Clip Remover

Removal Procedure

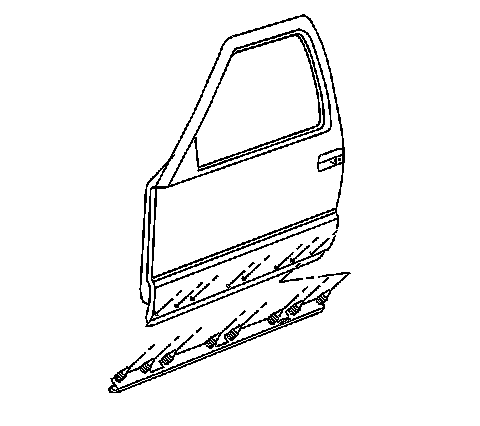

Use the J 38778 in order to remove the door bottom weatherstrip from the door.

Installation Procedure





1. Position the door bottom weatherstrip.
2. Press the weatherstrip into place.
